Evinrude / Johnson outboard parts drawings

GLM Marine aftermarket Johnson / Evinrude parts
Help to identify your outboard lower unit
Detailed exploded view parts drawings

  • Search by part number or description here

Click on outboard motor layout below for large exploded view parts drawing

Parts  4-4.5-5-6-7.5-8 hp.
Parts 4-4.5-5-6-7.5-8 hp.
Evinrude/Johnson outboard 4 to 8 hp. 1980 and up

  • Evinrude / Johnson outboard water pump and seal kit parts for 4, 4.5, 5, 6, 7.5 and 8 hp.
  • Years 1980 and up lower unit with 2 stroke only units
  • Note at this time we do not have propeller shafts, drive shafts, bearing carriers or gears
  • We have only numbered parts in stock for 4, 4.5, 5, 6, 7.5 and 8 horsepower lower units

Johnson Evinrude outboard 9.9-15 hp drawing
9.9, 10 and 15 hp

  • 9.9, 10 and 15 hp. 2 cylinder years 1974 to 2006 with thru prop exhaust.
  • Note at this time we do not have prop shaft, drive shaft or gears for this unit.
  • We have only numbered parts in stock for 9.9 or 15 hp. units.

Johnson outboard drawing loopcharged 2 Cylinder 1975-2006
Johnson / Evinrude outboard exploded view help parts drawing
OMC, Johnson / Evinrude parts drawing
  • 20 to 35 hp. 2 cylinder crossflow years 1980 to 2005
  • 25, 30 and 35 hp. 3 cylinder loopcharge 1996 to 2001
  • GLM aftermarket lower unit gear case parts for to propeller exhaust for OMC/Johnson/Evinrude outboards
  • Component chart to identify outboard parts for 20 to 35 hp. years 1980 to 1998
  • We stock most seal kit years 1966 to 1998 with 20 to 35 hp. lower units.
Johnson outboard parts 2 piece lower unit
2 Cylinder crossflow
  • 18, 25 and 28 hp. with cross-flow thru-cavitation plate exhaust use years 1978 to 1997
  • P/N 12060 GLM aftermarket parts Click here for Johnson water pump kits component OEM 395270
Johnson-Evinrude outboard drawing 40-50 hp
Small hub
Loopcharged

Loopcharged

2 Cylinder 40 to 60 hp.

3 cylinder 60 to 75 hp. loopcharged small gearcase

Years 1975 to 1988

Johnson / Evinrude V4 60 degree 1995-2006
1975-2006

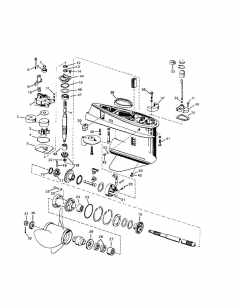

Loopcharged 2 cylinder 40-60 horsepower 1975 to 2006

3 cylinder 60-75 horsepower 1975 to 2001

V4 60 degree
V4 60 degree Johnson / Evinrude outboard exploded view parts drawing
1995 to 2005 V4 gear-case with 60 degree power-head
Lower unit
Lower unit Johnson / Evinrude outboard exploded view help parts drawing

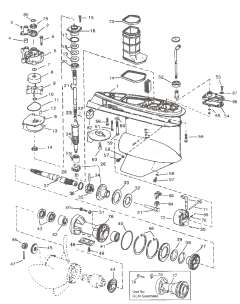

1978 to 1998 V4 gearcase with 90 degree powerhead

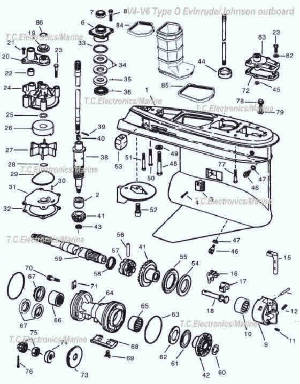

V4-V6 Type O Evinrude Johnson outboard

V4-V6 Type O Evinrude Johnson outboard

Type "O" gearcase parts layout

V4 years 1978 to 2006 crossflow years 1983 to 1996
60 Degree loopcharged years 1995, 1996, 1997 and 1998
90 Degree loopcharged years 1985 to 1998 V-4 to 1984
85 hp. 1991 to 1995, 88 hp. 1985 to 1995
90 hp. 1985 to 1995, 100 hp. V4 1983 to 1993
100 hp. Commercial 1984 to 1995, 110 hp. 1985 to 1989
115 hp. 1985 to 1995, 120 hp. 1985 to 1993,
125 hp. 1991 to 1993, 140 hp. 1985 to 1995
150 hp. V-6 1983 to 1986, 150 hp. 1991 to 1995
155 Commercial 1984 to 1993, 175 1991 to 1995
185 hp. 1991 to 1993, 200 hp. V 6 1983 to 1986
200 hp. 1991 to 1995, 225 hp. 1991 to 1995
V-8 1985 to 1991
J2
Johnson / Evinrude outboard exploded view help parts drawing
V4 or V6 type "M" lower unit parts and drawing years 2002 to 2005
P/N 12000 GLM Marine aftermarket Johnson outboard water pump kit 5001595

Water pump parts included: Impeller, pump housing, o rings and guide tube. Two grommets, cover, pump cup, key and wear plate.
Wear plate, gasket, seal and six screws in total.
Hydraulic shift
Hydraulic shift
V6 Hydraulic shift lower unit parts and drawing for years 1976, 1977 and 1978
5004635 GLM aftermarket outboard gear case
P/N 28710 New Johnson / Evinrude outboard parts OEM number 5004635
New complete outboard V6 Lower unit OEM 5004635 years 1978 to 2006

Crossflow years 1979-1992
60 Degree loopcharged
years 1991 to 2005
90 Degree loopcharged
years 1986 to 2005
Lower unit gearcase has hook up for speedo tube. Gear ratio 1:83 or 12/22 tooth count on gear set
28880 GLM aftermarket outboard gear case
28880 GLM aftermarket outboard gear case

New V4 lower unit OEM 5004639

  1. V4 years 1978 to 2006
    Cross-flow years 1983 to 1996
  2. 60 Degree loopcharged
    years 1995 to 1998
  3. 90 Degree loopcharged
    years 1985 to 1998
  4. Gear ratio of 2:25 or 12/27 tooth count on gear set

GLM Catalog

GLM aftermarket outboard parts can be found in the 2020 on-line parts catalog  outboard years 1980 and up with exploded view parts drawings.
Aftermarket parts that GLM manufactures are:

Web pricing in US funds.
Dealers that need aftermarket parts for inboard-outboard repairs. Contact us in company letterhead for our dealer price list on parts. The GLM catalog includes Chris Craft inboard and Crusader. Mercruiser, Volvo-Penta and Cobra outdrive parts. Chrysler, Mercury and Evinrude/Johnson V6 lower units and components. Includes 202 pages of GLM aftermarket Johnson PDF catalog with components and illustrations.
On-line parts catalog is comprised of PDF files. In order to view them, you need Acrobat Reader.

Shipping Locations Monrovia CA. 91016 USA
Toronto M1R-3Z1 Canada

Fed Ex 2 day international air freight Special Items

We stock used outboard motors and stern drive units
OMC sterndrive gearcases, gears and power boat tools and parts for repairs

Repair tools

Pinion bearing removal
Outboard bearing carrier pullers
Johnson propeller wrenches in 3 sizes
Pinion nut adapter
Prop shaft adapters
