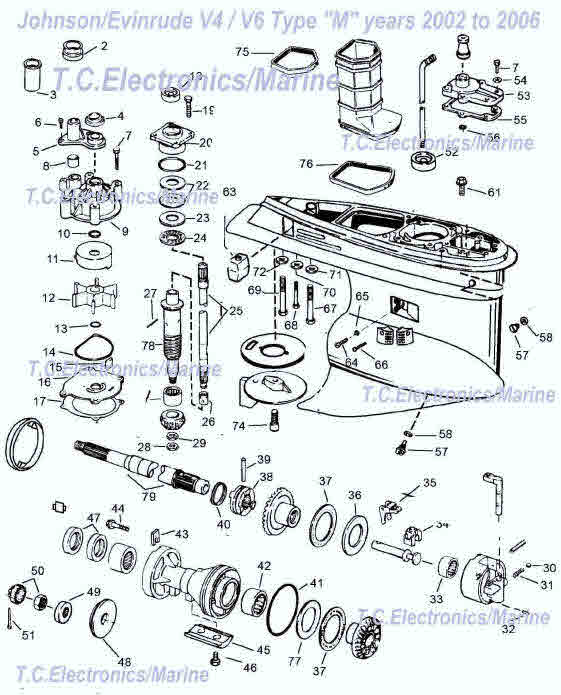

Johnson parts for V4 or V6 type M with drawing
Years 2002, 2003, 2004, 2005 and 2006
  • Component chart to identify aftermarket Evinrude Johnson parts for 2002, 2003, 2004, 2005 and 2006
  • Tech service number for T.C.Electronics / Marine (416) 751-7326 Illustrated drawing reference in future troubleshooting
Click here V4-V6

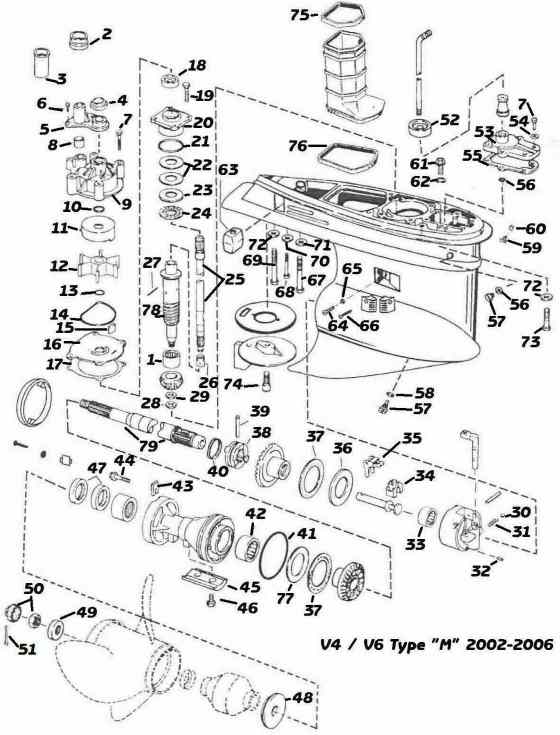

Johnson parts V4 V6 2002 2003 2004 2005 and 2006

Parts photo
P/N
12000 Water pump kit
# A

P/N 21000 GLM-Marine aftermarket outboard Water pump kit $59.29
OEM # 5001595

87600 seal kit
# A

P/N 87600 GLM-Marine aftermarket seal kit $60.89
OEM # 5006373

21610 Drive shaft pinion bearing
# 1

# 21610 Drive shaft pinion bearing $32.09
OEM # 387817


# 2

# 86495 Grommet $4.89
OEM # 338601

12827 Tube spacer
# 3

# 12827 Tube spacer $4.89
OEM # 338636

86480 Grommet
# 4

# 86480 Grommet $4.89
OEM # 320943

12570 Tube Guide
# 5

# 12570 Tube guide $4.89
OEM # 338893

22370 Screw
# 6

# 22370 Screw $4.89
OEM # 306643

22360 Screw
# 7

# 22360 Screw $4.89
OEM # 302325

86490 Grommet
# 8

# 86490 Grommet $4.89
OEM # 314008

12395 Pump housing
# 9

# 12395 Pump housing $10.89
OEM # 435959

81250 O ring
# 10

# 81250 O-ring (5 units) $5.89
OEM # 331188

12811 Pump cup
# 11

# 12811 Pump cup $10.89
OEM # 338486

89570 Impeller
# 12

# 89570 Impeller $26.89
OEM # 5001593

82120 water pump o ring
# 13

# 82120 O-ring (5 units) $9.89
OEM # 302035

86660 Seal
# 14

# 86660 Seal $4.89
OEM # 331353

89590 Key
# 15

# 89590 Key (5 units) $5.89
OEM # 331107

12580 Wear plate
# 16

# 12580 Wear plate $8.89
OEM # 338485

33730 Gasket
# 17

# 33730 Gasket (5 units) $9.89
OEM # 338484

86011 Oil Seal
# 18

# 86011 Oil seal $8.89
OEM # 341280

22362 Bolt
# 19

# 22362 Screw $4.89
OEM # 317624

22720 Bearing housing
# 20

# 22720 Bearing housing & Seal $66.89
OEM # 439476

81380 O ring
# 21

# 81380 O-ring (5 units) $4.89
OEM # 314728

23590 Shims
# 22A

# 23590 Shim .003 $4.89
OEM # 323362

23580 Shims
# 22B

# 23580 Shim .004 $5.89
OEM # 323361

23510 Shims
# 22C

# 23510 Shim .005 $5.89
OEM # 314745

21645 Thrust washer
# 23

# 21645 Thrust washer  $6.89
OEM # 327656

16330 Thrust bearing
# 24

# 16330 Thrust bearing $23.89
OEM # 387656

22433 Drive shaft
# 25

# 22433 Drive shaft 20" L $264.89
OEM # 5000614


# 25A

# 22434 Drive shaft 25" L $254.89
OEM # 5000623


# 25B

# 22436 Drive shaft 25" XL $244.89
OEM # 5000624
