Evinrude Johnson outboard seal kit parts S/N 5006373

GLM aftermarket outboard motor seal kit

  • GLM Marine aftermarket kit applications from V4-V6-V8 outboard engine lower units 85 to 300 hp. OMC/Johnson/Evinrude outboard motors with corresponding years 1973 to 1995
  • Aftermarket kits have 316 stainless steel 1/4-28 national fine prop shaft carrier screw with built in seal
  • Sea Drive parts chart to identify horsepower, liter and year
  • Note gaskets, o rings and some seals listed will require gasket compound for installation

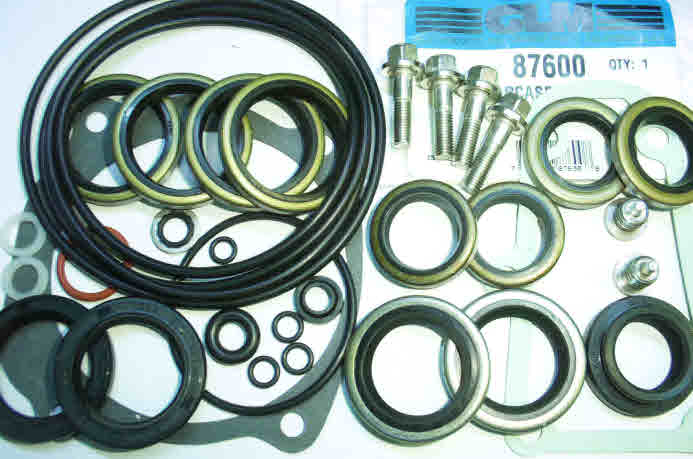

87600 outboard seal kit

87600 outboard seal kit



GLM Marine OMC Evinrude Johnson outboard seal kit parts

P/N 87600 $60.29

OEM P/N 5000411

V-4 years 1978 to 1984
85 hp. V-4 years 1973 to 1983
85 hp. yeas 1991 to 1995
88 hp. years 1985 and up
90 hp. V-4 years 1973 to 1983
90 hp. years 1985 and up
100 hp. V4 years 1973 to 1983
100 hp. Commercial years 1984 to 1995
100 hp. years 1991 and 2001
110 hp. V-4 years 1973 to 1983
110 hp. years 1985 and up
115 hp. V-4 1973 to 1983
115 hp. years 1985 and up
120 hp. year 1985 and up
125 hp. years 1991, 1992 and 1993
125 hp. Commercial years 1991 to 1993
135 hp. V-4 1973 to 1983
140 hp. V-4 years 1973 to 1983
140 hp. years 1985 to 1995
150 hp. V-6 years 1978 to 1986
150 hp. years 1991 to 1995
155 hp. Commercial years 1984 to 1993
175 hp. V-6 years 1977 to 1986
175 hp. years 1991, 1992, 1994 and 1995
185 hp. years 1991, 1992 and 1993
200 hp. V 6 years 1976 to 1986
200 hp. years 1991 to 1995
V-6 Motor years 1979 to 1992
225 hp. years 1991 to 1995
235 hp. V-6 years 1977 to 1986
V-8 Motor years 1985 to 1991
250 hp. V-8 years 1991 to 1995
300 hp. V-8 years 1991 to 1995

1.8 liter sea drive years 1985 to 1990
1.8 liter sea drive year 1987
2.0 liter sea drive years 1988 to 1990
2.5 liter sea drive years 1984 and 1985
2.6 liter sea drive years 1984, 1985 and 1986
2.7 liter sea drive year 1987
3.0 liter sea drive years 1988, 1989 and 1990
3.6 liter  sea drive years 1987
4.0 liter sea drive years 1989 and 1990



Qty.

Johnson Outboard Parts Warehouse
86030 Oil seal
86030
2
P/N 86030 GLM aftermarket Johnson outboard prop shaft seal V-4 #330137
85130 Johnson
85130 Johnson
2

P/N 85130 1-3/16 inch prop shaft bearing carrier seal OEM 320862

86810
86810
2
P/N 86810 1-1/4 inch Prop shaft bearing carrier #334950
85120
85120
2

P/N 85120 years 1985 and before 321453

86011
86011
1

P/N 86011 drive shaft 341280


1

P/N 86240 drive shaft 329922


1

P/N 86250 drive shaft 329923

81165 O rings
81165 O rings
1

P/N 85165 drive shaft to crank case o ring #310585

82370
82370
1

P/N 85370 prop shaft bearing carrier o ring for V 4 90 degree power-heads lower unit. Requires gasket compound #313446

82440
82440
3
P/N 82440 prop shaft bearing carrier o ring for V 6 60 degree power-heads lower unit OEM 326849
82400 O-ring
82400 O-ring
2

P/N 82400 prop shaft bearing carrier o ring for type O and type M lower unit gear-cases OEM 305123

81380

81380

1

P/N 81380 drive shaft bearing retainer o ring Requires compound 314728

45200
45200
2

P/N 45200 shift cover o ring #318372

33020 OMC shift gasket
33020 OMC shift gasket
1

P/N 33020 shift cover gasket Requires gasket compound #324670

33730 Gasket
33730 Gasket
1

P/N 33730 water pump gasket Requires gasket sealing compound OEM 338484

21677 Seal washer
21677 Seal washer
1

P/N 21677 pilot hole plug sealing washer OEM 437330

22300
22300
4

P/N 22300 GLM Marine ND plastisol threaded screws provide positive seal that eliminates leaks, they insulate, cushion, limit noise and reduce bearing carrier plate vibration

21731 drain screw
21731 drain screw
2

P/N 21731 magnetic drain plug and gasket OEM 318544
