Evinrude/Johnson outboard water pump kit with how to video

GLM aftermarket water pumps with impeller and key or pin

  • Water pump applications from 4 to 300 hp. V8 OMC Evinrude/Johnson outboard motors, with corresponding years 1974 to 2005.
  • Kit include pump cup, wear plate. If you require just the impeller and pin or key please click here.
  • GLM commit themselves to producing the highest quality, cost-effective after-market water pump kits, that include pump cup, wear plate, impeller and key.
  • Charts below identifies by year, OEM number and horsepower.
  • Installation of the impeller is easy if grease is placed on unit and inside of the cup area. Press cup housing down as you slowing turn the outboards drive shaft clockwise. Please see video below and note the impeller is about 1/4 inch larger that the cup and housing area.

   Exploded view lower unit drawings
Photo or index page

Search by part number or description here

This site  The Web

Click on any Johnson/Evinrude pump kit photo on lower left for larger view and to purchase impeller, pump, key and o rings.

Contact our tech service number listed below for more help. Please note seals or o rings for the water pumps are also located on each exploded view lower unit drawing.

12108
12108

P/N 12108 Two stroke impeller kit. $30.29

3, 4 and 5 hp. 1952 - 1978
4 hp. 1960 - 1983
5 hp. 1965 - 1968
5.5 and 6 hp. 1954 - 1979
7.5 hp. 1954 - 1958
8 hp. 1984 - 1996

12065 2 stroke OEM 396644
12065 2 stroke OEM 396644

P/N 12065 Two stroke outboard kit. $45.15

4 hp. Deluxe 1985 - 1988
4.5 hp. 1980 - 1984
5 hp. 1986 - 1990
5 and 6 hp. 4 stroke 1998
6 hp. 1984 - 1996
7.5 hp. 1980 - 1983
8 hp. 1984 - 1996

12255
12255

P/N 12255 Two stroke outboard kits above without pump housing. $34.29

12050
12050

P/N 12050 Two and four stroke outboards $35.09

8 hp. 4 stroke 1995
9.9 hp. 2 stroke 1974 -1996
9.9 hp. 4 stroke 1995 - 2001
15 hp. 2 stroke 1974 - 1996
15 hp. 4 stroke 1995 - 2001

12060 2 cylinder crossflow engines with thru cavitation plate exhaust
12060 2 cylinder crossflow engines with thru cavitation plate exhaust

P/N 12060 Two cylinder Johnson/Evinrude outboard cross flow engines with thru-cavitation plate exhaust and two piece gear-case. $29.09

18 hp. years 1997 to 1998
25 hp. years 1979 to 2005
28 hp. years 1986 to 1998

12070 Water pump kit 1980-2005
12070 Water pump kit 1980-2005

P/N 12070 Two cylinder crossflow engines with thru-prop exhaust and one-piece gear-case. $42.09

20 hp. Thru-prop 1985 - 1998
25 hp. Thru-prop 1985 - 2005
35 hp. Thru-prop 1980 - 1996

12232 1971-1978
12232 1971-1978

P/N 12232 Two and three cylinder Johnson/Evinrude loop-charged engines with the small gear case water pump with half-moon key impeller. $59.95

50 hp. years 1971 to 1978.

12233
12233

P/N 12233 Three cylinder loop-charged water pump. $50.89
25, 30 and 35 hp. years 1996 to 2001

12210 kit 1984-1994
12210 kit 1984-1994

P/N 12210 Two cylinder small housing loop-charged. $60.89

40 hp. Small housing 1984 - 1988
40 hp. Commercial small housing 1993 - 1994
45 hp. Commercial small housing 1986 - 1994
48 hp. Small housing 1987 - 1988
50 hp. Small housing 1986 - 1988
55 hp. Commercial small housing 1986 - 1994

12235  1995-2005
12235 1995-2005

P/N 12235 Two cylinder loopcharged outboard engines with large gear-case with the six vane water pump impeller. $62.89

40 hp. Large housing 1995 - 2005
45 hp. Commercial large housing for years 1995 to 2005
55 hp. Large housing 1995 - 2005

12245
12245

P/N 12245 Two cylinder loopcharged engines with small gear-case. Large three vane impeller. $59.89

40, 48 and 50 hp. Small gear-case housing 1989 to 1998.

12552
12552

P/N 12552 Two cylinder loopcharged engine as above without housing years 1989 to 1998.

12247
12247

P/N 12247 OEM-391741 Two cylinder outboards with cross-flow engine water pump. $57.09

40 hp. Small housing 1974 to 1976
40 hp. Commercial outboards years 1981 to 1987

12240
12240

P/N 12240 $53.09 Two cylinder 40-60 hp. loopcharged engines with large gear-case years 1979 to 2005 $53.09.

65, 70, and 75 hp. 3 Cylinder loopcharged engines with large gear-case.
Large gear-case years 1979 to 1985 with the plastic wedge key.

12244
12244

P/N 12244 Three cylinder loopcharged engines with the large gearcase $49.09.

Large with half-moon key impeller
70 and 75 hp. years 1974 to 1978

12246  1986-2001
12246 1986-2001

P/N 12246 Three cylinder outboards with loopcharged engines with the large lower unit gearcase with half-moon key impeller $55.09

60 hp. 1989 - 2001
60 and 70 hp. 4 - stroke 1998 - up
65 hp. 1979 - 2001
70 hp. 1979 - 1994
75 hp. 1979 - 1988

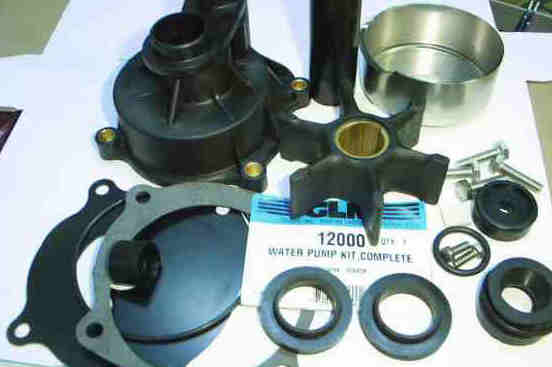

12000
12000

P/N 12000 Years 1979 to 2006 with V4,V6 and V8 outboard engines, with 25 and 30 inch shaft plastic wedge key impeller $59.29

90 hp. 25" Shaft 1995 - 2003
100 hp. 25" Shaft 1998 - 2005
105 hp. 1998 - 2001
115 hp. 25" Shaft 1995 - 2006
120 hp. 25" Shaft 1985 - 1994
130 hp. 25" Shaft 1995 to 1998
135 hp. 25" Shaft 2000 - 2006
140 hp. 25" Shaft 1985 - 1994
150 hp. 25" Shaft 1993 - 2006
175 hp. 25" Shaft 1993 - 2006
185 hp. 25" Shaft 1993 - 1994
200 hp. 25" or 30" Shaft 1993 - 2006
225 hp. 25" or 30" Shaft 1993 - 2006
250 hp. 25" or 30" Shaft 2006
250 hp. 25" or 30" Shaft 1993 - 1998
300 hp. 25" or 30" Shaft 1993 - 1995

12104-2 without housing
12104-2 without housing

P/N 12104-2 Without case for years 1979 to 2006 with V4,V6 and V8 outboard engines. 25 and 30 inch shaft using plastic wedge key impellers. $48.89

12101 Outboard motor
12101 Outboard motor

P/N 12101 Years 1976, 1978 and V4 or V6 outboard engines with mechanical-hydraulic shift. Uses a half moon key for the impeller $71.29

85 hp. 25 inch shaft 1977
85, 115, 150 and 235 hp. 1978
100 hp. 1979 - 1980
115 hp. 25 inch shaft 1977
140, 175 hp. 1977 to 1978
200 hp. 1976 to 1978

12072
12072

P/N 12072 Years 1976, 1978 and V4 or V6 outboard engines with mechanical-hydraulic shift. As above without case. $64.29

12102 Evinrude Johnson
12102 Evinrude Johnson

P/N 12102 OEM 5001594 Years 1979 to 2006 Johnson/Evinrude V4, V6 and V8 outboard engines with 20 inch shaft plastic wedge key impeller. $54.89

85 hp. 1979 - 1980
90 hp. 1981 - 1994
90 hp. 20 inch shaft 1995 - 2003
100 hp. 1984 - 1997
100 hp. 20 inch shaft 1998 - 2005
115 hp. 1979 - 1994
115 hp. 20 inch shaft 1995 - 2006
120 hp. 20 inch shaft 1985 - 1994
130 hp. 20 inch shaft 1995 - 1998
135 hp. 20 inch shaft 2000 - 2006
140 hp. 1979 - 1984
140 hp. 20 inch shaft 1985 - 1994
150 hp. 1979 - 1992
150 hp. 20 inch shaft 1993 - 2006
175 hp. 1979 - 1992
175 hp. 20 inch shaft 1993 - 2006
185 hp. 1984 - 1992
185 hp. 20" Shaft 1993 - 1994
200 hp. 1979 - 1992
200 hp. 20 inch shaft 1993 - 2006
225 hp. 1986 - 1992
225 hp. 20 inch shaft 1993 - 2006
235 hp. 1979 - 1985
250 hp. 20 inch shaft 2006
250 hp. 1991 - 1992
250 hp. 20 inch shaft 1993 - 1998
275 hp. 1985 - 1988
300 hp. 1985 - 1992
300 hp. 20 inch shaft 1993 - 1995

12104
12104

P/N 12104 As above without housing for years 1979 to 2006. V4, V6 and V8 outboard engines with 20 inch shaft plastic wedge key impeller. $48.89

85 hp. 1979 - 1980
90 hp. 1981 - 1994
90 hp. 20 inch shaft 1995 - 2003
100 hp. 1984 - 1997
100 hp. 20 inch shaft 1998 - 2005
115 hp. 1979 - 1994
115 hp. 20 inch shaft 1995 - 2006
120 hp. 20 inch shaft 1985 - 1994
130 hp. 20 inch shaft 1995 - 1998
135 hp. 20 inch shaft 2000 - 2006
140 hp. 1979 - 1984
140 hp. 20 inch shaft 1985 - 1994
150 hp. 1979 - 1992
150 hp. 20 inch shaft 1993 - 2006
175 hp. 1979 - 1992
175 hp. 20 inch shaft 1993 - 2006
185 hp. 1984 - 1992
185 hp. 20" Shaft 1993 - 1994
200 hp. 1979 - 1992
200 hp. 20 inch shaft 1993 - 2006
225 hp. 1986 - 1992
225 hp. 20 inch shaft 1993 - 2006
235 hp. 1979 - 1985
250 hp. 20 inch shaft 2006
250 hp. 1991 - 1992
250 hp. 20 inch shaft 1993 - 1998
275 hp. 1985 - 1988
300 hp. 1985 - 1992
300 hp. 20 inch shaft 1993 - 1995
