Johnson outboard water pump 8-15 hp. OEM 394711

GLM Marine aftermarket water pump impeller and key kit

  • 8 hp. 4 stroke years 1995
  • 9.9 and 15 hp. 2 stroke years 1974 to 1996
  • 9.9 and 15 hp. 4 stroke years 1995 to 2001
  • Exploded view lower unit drawings

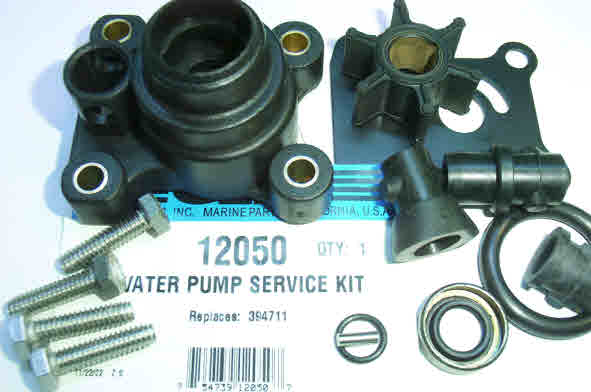

12050 GLM aftermarket kit

12050 GLM aftermarket kit

P/N 12050 OEM 394711 $38.95

Evinrude-Johnson outboard water pump parts

89594 key
89594 key

P/N 89594 Water pump stainless steel pin OEM 300611 $4.95
Click here for water pump pin

83200 O-ring
83200 O-ring

P/N 83200 O ring (5 units) OEM 319085 $9.95

86496
86496

P/N 86496 grommet OEM 327035 $4.95

86498 Grommet
86498 Grommet

P/N 86498 grommet OEM 338908 $4.95

86492
86492

P/N 86492 grommet OEM 302497 $4.95

22360 Screw kit stainless steel
22360 Screw kit stainless steel

P/N 22360 Screw (1 unit) OEM 302325 $4.95

12460  housing
12460 housing

P/N 12460 Pump housing OEM 435390 $24.95

86120 Oil seal
12813 cup

12813  cup
12813 cup

P/N 12813 Pump cup OEM 334097 $11.95

86120 Oil seal
86120 Oil seal

P/N 86120 Seal OEM 318972 $5.95

12610 Wear plate
12610 Wear plate

P/N 12610 Wear plate OEM 318995 $6.95

89770 Impeller
89770 Impeller
