60, 65, 70 and 75 hp. Johnson outboard water pump kit

GLM aftermarket kit 60, 65, 70 and 75 hp.
years 1979 to 1988

  • 3 Cylinder Evinrude Johnson loopcharged GLM Marine aftermarket water pump kit for lower unit large gearcase with plastic wedge impeller keys
  • Outboard kits or the following years and hp.
  • 60 hp. years 1986 to 1988
  • 65 hp. years 1979 to 1987
  • 70 hp. years 1979 to 1985
  • 75 hp. years 1979 to 1988

Exploded view Johnson lower unit drawings
Search by part number or description here

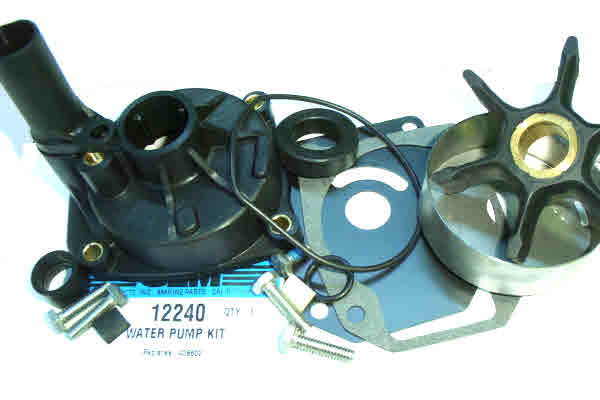

12240 Johnson water pump kit 1979-1981

12240 Johnson water pump kit 1979-1981

3 Cylinder 65, 70 & 75 loopcharged years 1979 to 1985

22360 Screw
22360 Screw

P/N 22360 Screw OEM 324960 (1 unit) $4.29

22320 bolt
22320 bolt

P/N 22320 Bolt OEM 908158 $4.29

12950 Water tube guide 319276
12950 Water tube guide 319276

P/N 12950 Tube guide OEM 319276

86490
86490

P/N 86490 Grommet OEM 314008 $4.29

12400 hosing
12400 housing

P/N 12400 Hosing OEM 438543 $12.29

12815 cup
12815 cup

P/N 33511 gasket OEM 324449 $4.29

81140 o ring
81140 o ring

P/N 81140 O ring OEM 326649 $4.29

89710 Johnson impeller
89710 Johnson impeller

P/N 89710 Water pump impeller OEM 396725 $20.29

89591 key
89591 key

P/N 89591 impeller key OEM 331901 $4.29

89592
89592

P/N 89592 Black key OEM 334897 $4.29



P/N 86570 Seal OEM 324981 $4.29

12550 wear plate
12550 wear plate

P/N 12550 Wear plate OEM 341038 $5.29

33150 gasket
33150 gasket

P/N 33150 Water pump gasket OEM 336530 $4.29

86491 Grommet
86491 Grommet

P/N 86491 Grommet OEM 341732 $4.29
