Evinrude/Johnson outboard water pump OEM 432955

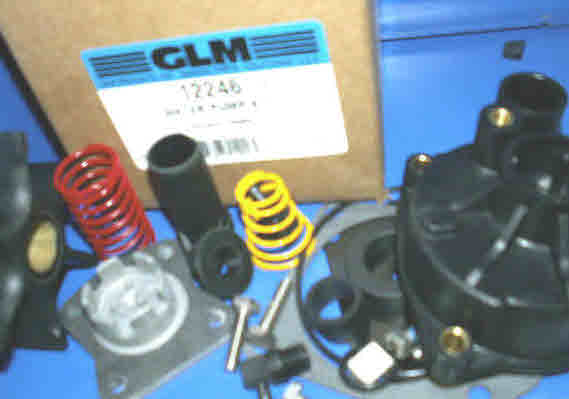

GLM aftermarket water pump, screws, housing, impeller, key and thermostat-parts kit OEM 432955

  • 3 Cylinder Evinrude/Johnson loopcharged aftermarket water pump kit for lower unit large gearcase with plastic wedge impeller key
  • 60 hp. years 1989 to 2001
  • 60 hp. 4 stroke year 1998 and up
  • 65 hp. years 1979 to 2001
  • 70 hp. years 1979 to 1994
  • 70 hp. 4 stroke 1998 and up
  • 75 hp. years 1979 to 1988

12246 Evinrude Johnson outboard water pump kit OEM-432955
-

12246 Evinrude Johnson outboard water pump kit OEM-432955 $63.99

3 Cylinder loopcharged Johnson outboard parts

10561 Elbow OEM-321886
10561 Elbow OEM-321886

P/N 10561 Elbow OEM 321886 $4.95

10563 Elbow
10563 Elbow

P/N 10563 Elbow OEM 126776 $4.95

water pump spring
water pump spring

P/N 12954 Spring OEM 333858 $4.95

12950 Water pump tube guide 319276
12950 Water pump tube guide 319276

P/N 12950 Tube guide OEM 319276 $4.95

86493 Water pump grommet OEM-344227
86493 Water pump grommet OEM-344227

P/N 86493 Grommet OEM 344227 $4.95

22320 Water pump bolt OEM-908158
22320 Water pump bolt OEM-908158

P/N 22320 Bolt (5 units) OEM 908158 $14.95

22360 Screw OEM-324960
22360 Screw

P/N 22360 Screw OEM 324960 (1 unit) $4.95

86490 grommet
86490 grommet

P/N 86490 Grommet OEM-314008 $4.95

12400 Water pump hosing OEM 438543
12400 Water pump hosing OEM 438543

P/N 12400 Hosing 438543 $19.95

12815 Water pump cup OEM-340619
12815 Water pump cup OEM-340619

P/N 33511 gasket OEM 324449 $4.95

81140 Johnson water pump o-ring OEM-326649
81140 Johnson water pump o-ring OEM-326649

P/N 81140 O ring OEM 326649 $4.95

89710 impeller

P/N 89710 Water pump impeller OEM 396725 $19.95

89591 Water pump key OEM-331901
89591 Water pump key OEM-331901

P/N 89591 Impeller key OEM 331901 $9.95

89592 Water pump key OEM 334897
89592 Water pump key OEM 334897

P/N 89592 Key black OEM 334897 $9.95

33150 Water pump gasket OEM-336530
33150 Water pump gasket OEM-336530

P/N 33150 Gasket OEM 336530 $4.95

12550 wear plate

P/N 12550 Wear plate OEM 341038

86570 Johnson Water pump seal

86570 Johnson Water pump seal

P/N 86570 Seal OEM 324981 $5.95

11053 Spring OEM-343977
11053 spring

P/N 11053 Yellow spring OEM 343977 $4.95

13240 Thermostat cover
13240 Thermostat cover

P/N 13240 Thermostat cover OEM 343141 $14.95

35440 Gasket OEM-329830
35440 Gasket OEM-329830

P/N 35440 Gasket OEM 329830 $4.95

86491 Grommet OEM-341732
86491 Grommet OEM-341732

P/N 86491 Grommet OEM 341732 $4.95
