Johnson / Evinrude outboard water pump 18 to 28 hp.

GLM Marine aftermarket screws, pump housing, impeller and key kit OEM 395270

12060

12060

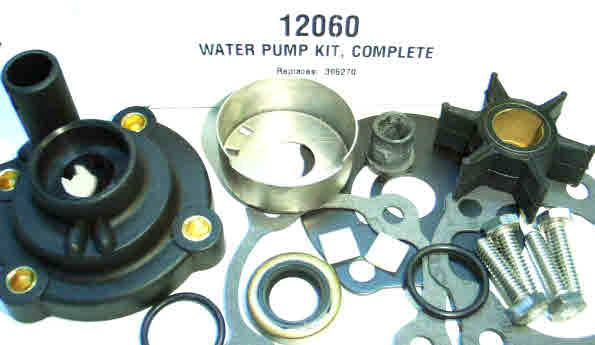

P/N 12060 2 Cylinder cross-flow water pump with to exhaust cavitation plate and two piece gearcase, replaces OEM 395270. $30.95

22360 Screw
22360 Screw

P/N 22360 Screw OEM 324960 (1 unit) $4.95

86492 grommet
86492 grommet

P/N 86492 Pump grommet OEM 302497 $4.95

12440 housing
12440 housing

P/N 12440 Pump housing OEM 330560 $13.95

12812 cup
12812 cup

P/N 12812 Pump cup OEM 328751 $13.95

81170 o ring
81170 o ring

P/N 81170 O ring OEM 301967 $4.95

89750 impeller
89750 impeller

P/N 89750 Water pump impeller OEM 395289 $12.95

89593 key
89593 key

P/N 89593 Impeller key OEM 330619 $4.95

34560 gasket
34560 gasket

P/N 34560 gasket OEM 329390 $4.95

12640 wear plate
12640 wear plate

P/N 12640 wear plate OEM 329391 $5.95

33511 gasket
33511 gasket

P/N 33511 gasket OEM 324449 $4.95

86150 seal
86150 seal
P/N 86150 Oil seal OEM 321459 $11.95
