Johnson outboard water pump 20-35 hp 393630

GLM Marine aftermarket water pump, screws
pump housing impeller and key

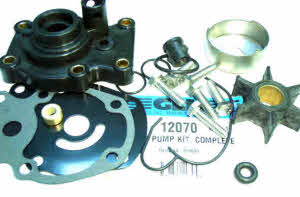

12070 GLM aftermarket Johnson water pump OEM 393630

12070 $42.99

34520 Gasket  325537
34520 Gasket 325537

P/N 34520 Gasket OEM 325537 $4.95

22360 Screw OEM 324960
22360

P/N 22360 Screw OEM 324960 $4.95

86492 grommet  302497
86492 grommet 302497

P/N 86492 Pump grommet OEM 302497 $4.95

21427 Brass bushing
21427 Brass bushing

P/N 21427 Brass bushing OEM 328754 $4.95
