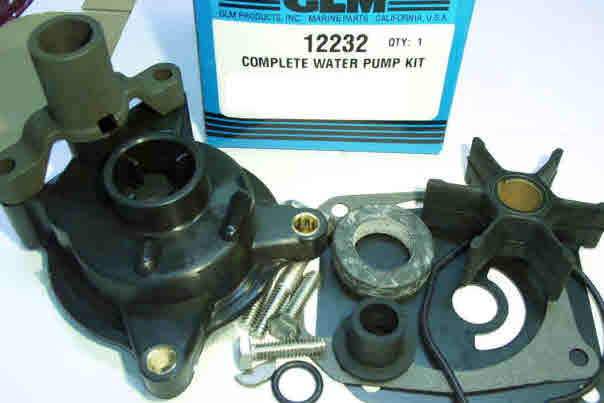

50 hp. Johnson outboard water pump kit

GLM Marine aftermarket water pump impeller, screws
pump housing and key

  • 2 and 3 Cylinder loopcharged powerhead with smaller gearcase lower units
  • 1971 to 1978 outboard kit S/N 389133
  • 50 hp. years 1971, 1972, 1973, 1974, 1975, 1976, 1977 and 1978
  • Half moon stainless steel water pump impeller key S/N 308928

Exploded view Johnson lower unit outboard drawings
Search by part number or description here

12232

12232

P/N 12232 water pump kit OEM 389133 $76.95

2 Cylinder loopcharged 50 hp. Johnson outboard parts
years 1971 to 1978

22324 screw

22324 screw

P/N 22324 Water pump bolt OEM 331980 $4.95

12940 Tube guide

12940 Tube guide

P/N 12940 Tube guide OEM 315838 $43.95

86494 Grommet
86494 Grommet

P/N 86494 Grommet OEM 315837 $4.95

22360 bolt OEM 324960
22360 bolt OEM 324960

P/N 22360 bolt (1 unit) OEM 324960 $4.95

12450 housing
12450 housing

P/N 12450 Pump housing OEM 384087 $15.95

12814 cup

12814 cup

P/N 12814 cup OEM 320775 $17.95

81120 O ring

81120 O ring

P/N 81120 O ring OEM 303059 $4.95

89660

89660

89595 key
89595 key

P/N 89595 Key OEM 308928 $7.95

86580
86580

P/N 86580 GLM Marine aftermarket Johnson outboard seal OEM 315788 $4.95

12620 Impeller Plate
12620 Impeller Plate

P/N 12620 impeller wear plate OEM 320981 $11.95

33150 gasket

33150 gasket

P/N 33150 gasket OEM 336530 $4.95

86491
86491

P/N 86491 Grommet OEM 341732
