Evinrude/Johnson outboard water pump 70 and 75 hp.

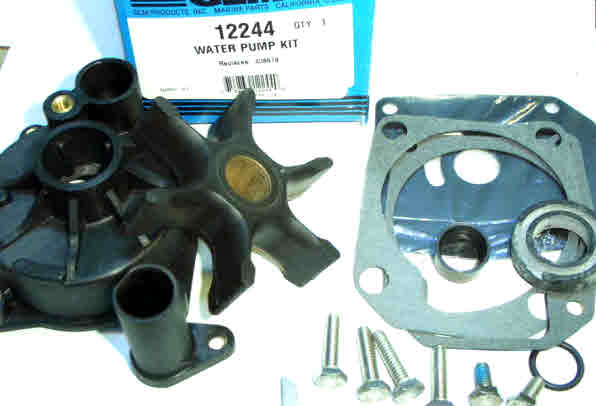

GLM aftermarket kit OEM 438579 Years 1974, 1975, 1976, 1977 and 1978

  • GLM Marine aftermarket Evinrude Johnson outboard 3 Cylinder loopcharged water pump kit for lower unit large gearcase with half moon impeller key
  • 70 hp. and 75 hp. years 1974 to 1978
  • Impeller, half moon key, o ring, gaskets, wear plate, grommet, pump housing, bolts and tube guide

Exploded view Johnson lower unit drawings
Search by part number or description here

12244

12244

3 Cylinder loopcharged Johnson outboard parts 1974 to 1978

22320 bolt
22320 bolt

P/N 22320 Bolt OEM 908158 $4.29

12950 tube guide
12950 tube guide

P/N 12950 Tube guide OEM 319276 $4.95

86490 grommet
86490 grommet

P/N 86490 Grommet OEM-314008 $4.29

12400 Water pump hosing OEM 438543
12400 Water pump hosing OEM 438543

P/N 12400 Housing OEM 438543 $12.29

12815 cup
12815 cup

P/N 33511 gasket OEM 324449 $4.29

81140  o-ring
81140 o-ring

P/N 81140 O ring OEM 326649 $4.29

89940 Impeller
89940 Impeller

P/N 89940 Impeller OEM 382547 $22.29

89595  key
89595 key

P/N 89595 Impeller key OEM 308928 $6.29

12550  wear plate
12550 wear plate

P/N 12550 wear plate OEM 341038 $11.29

34330  gasket
34330 gasket

P/N 34330 Gasket OEM 319586 $4.29

33150
33150

P/N 33150 gasket OEM 336530 $4.29



P/N 86570 Seal OEM 324981 $4.29

86491

86491

P/N 86491 Grommet OEM 341732 $4.29
