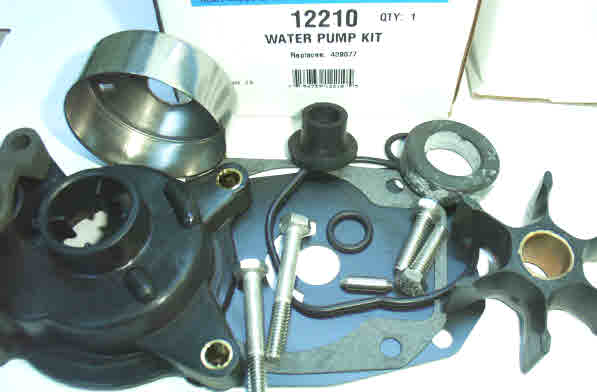

Johnson outboard water pump 40-55 hp. OEM 439077

2 Cylinder loopcharged aftermarket Johnson/Evinrude water pump kit for lower unit small gear-case. 40 hp. years 1984, 1985, 1986, 1987 and 1988 40 hp. commercial 1993 and 1994 45 hp. commercial years 1986 to 1994 48 hp. years 1987 and 1988 50 hp. years 1986, 1987 and 1988 55 hp. commercial years 1986 to 1994 Exploded view Johnson lower unit drawings 3 Cylinder powerhead loopcharged with small lower unit gearcase with plastic wedge impeller key years 1984 to 1994

12210

22324 Johnson-Evinrude screw	P/N 22324 Water pump bolt OEM 331980 $4.95
12940 Tube guide	P/N 12940 Tube guide OEM 315838 $43.95
86494 Grommet	P/N 86494 Grommet OEM 315837 $4.95
22360 water pump bolt	P/N 22360 Water pump bolt OEM 324960 $4.95
12450 Pump housing	P/N 12450 Pump housing OEM 384087 $15.95
12814 Pump cup	P/N 12814 Pump cup OEM 320775 $17.95
81120 O-ring	P/N 81120 O ring OEM 303059 $4.95
89780 Evinrude impeller 1984 thru 1994	P/N 89780 Water pump impeller OEM 396809 $20.95
89591 Water pump key OEM 331901	P/N 89591 Impeller key OEM 331901 $4.95
89593 water pump key OEM 330619	P/N 89593 water pump key OEM 330619 $4.95
86580 Johnson outboard part seal	P/N 86580 GLM Marine aftermarket Johnson outboard seal OEM 315788 $4.95
12620 Impeller Plate	P/N 12620 Water pump impeller wear plate OEM 320981 $11.95
33150 Water pump gasket	P/N 33150 Water pump gasket OEM 336530 $4.95
86491 Grommet	P/N 86491 Grommet OEM 341732
