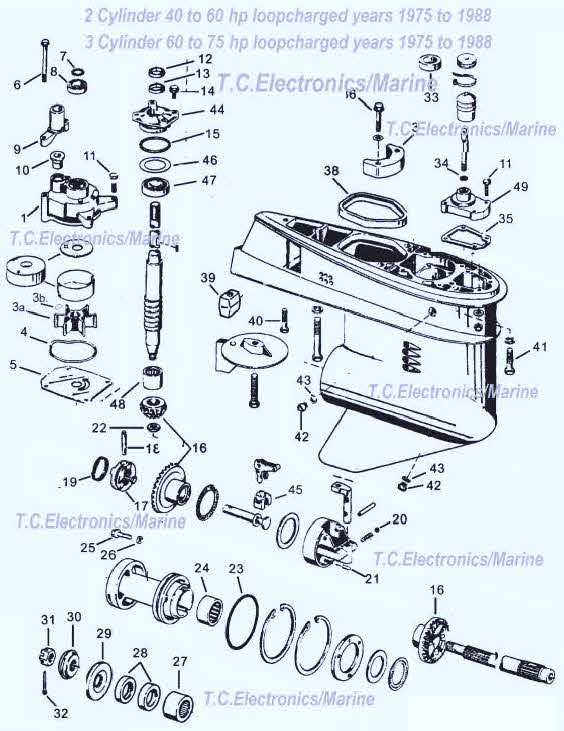

Johnson 2 Cylinder 40-60 hp. 3 cylinder 60-75 hp. 1975-1988

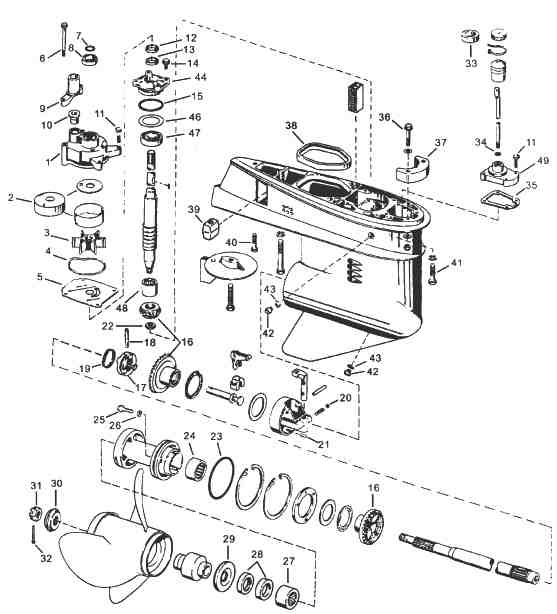

2 cylinder 40 - 60 hp. 3 cylinder 60 to 75 hp. loopcharged
small gearcase parts 1 to 25

Years 1975 to 1988

Johnson outboard parts

Johnson outboard parts

12232 Water pump kit 1971-1978
12232 Water pump kit 1971-1978
Item A
P/N 12232
Click here for water pump kit OEM 389133 $76.95
Fits 1984 to 1994 with 2 and 3 cylinder loopcharged engines with small gearcase

12245 1989-2005 2 cylinder
12245 1989-2005 2 cylinder
Item B
P/N 12245
Click here for water pump kits $52.95
40 hp. Commercial 1991 and up
40, 48, 50 horsepower 1989 and up

12450
12450
Item 1
P/N 12450
Pump housing OEM 384087 $15.95

12814 cup
12814 cup

Item 2
P/N 12814
Pump cup OEM 320775-6 $17.95

89660 Impeller 1971 - 1978
89660 Impeller 1971 - 1978
Item 3A
P/N 89660
Water pump impeller Years 1975 to 1978 OEM 377230 $18.95

89780
89780

Item 3B
P/N 89780 Impeller years 1979 to 1988 OEM 396809 $20.95

 89595
 89595

Item 3C
P/N 89595
Key Years 1975 to 1978 OEM 308928 $7.95

89591 Key white
89591 Key white
Item 3D
P/N 89591
Key, white. years 1979 to 1988 (5 units) OEM 331901 $9.95

89593
89593

Item 3E
P/N 89593
Key, 5 units, black. 1979 to 1988 OEM 344470 $4.95

86580 outboard part seal
86580 outboard part seal

Item 4
P/N 86580
Seal OEM 315788 $4.95

12620 Impeller Plate
12620 Impeller Plate

Item 5
P/N 12620
Wear plate OEM 320981 $11.95

22324 Bolt
22324 Bolt

Item 6
P/N 22324 Screw OEM 331980 $4.95

81120 O ring
81120 O ring

Item 7
P/N 81120
O Ring 5 units OEM 303059 $4.95

86491 Grommet
86491 Grommet
Item 8
P/N 86491
Grommet OEM 341732 $4.95

12940 Tube guide
12940 Tube guide
Item 9
P/N 12940
Tube guide OEM 315838 $43.95

86494
86494
Item 10
P/N 86494 Grommet OEM 315837 $4.95

22360 Screw
22360 Screw
Item 11
P/N 22360 Screw OEM 302325 $4.89


Item 12
P/N 86460
Oil seal OEM 332205 $4.95

86013 Oil seal
86013 Oil seal
Item 12B/13B
P/N 86013
Oil seal OEM 342786 $4.95

86160
86160
Item 13
P/N 86160
Oil seal OEM 321466 $8.95

22327 Bolt
22327 Bolt
Item 14
P/N 22327
Screw OEM 909386 $4.95

82240 O ring
82240 O ring
Item 15
P/N 82240
O-Ring 5 units OEM 302588 $4.95



Item 16
P/N 22680
Complete gear set with clutch $473.95

22681 Gear set
22681 Gear set

Item 16
P/N 22681
Forward / pinion / reverse gear OEM 433570 $594.95

 22683 Clutch Dog
 22683 Clutch Dog

Item 17
P/N 22683 Clutch dog OEM 319895 $146.95



Item 18
P/N 22044
Cross pin OEM 320310

11051 Spring
11051 Spring
Item 19
P/N 11051
Spring OEM 320311 $4.95

 22491 detent ball
 22491 detent ball

Item 20
P/N 22491
Detent ball OEM 160084 $4.95
