Evinrude / Johnson outboard parts and drawing for 2 cylinder loop charged small gearcase 40 thru 50 horsepower for years 1989 thru 2005
W Johnson outboard drawing 40-50 hp lower unit.jpg

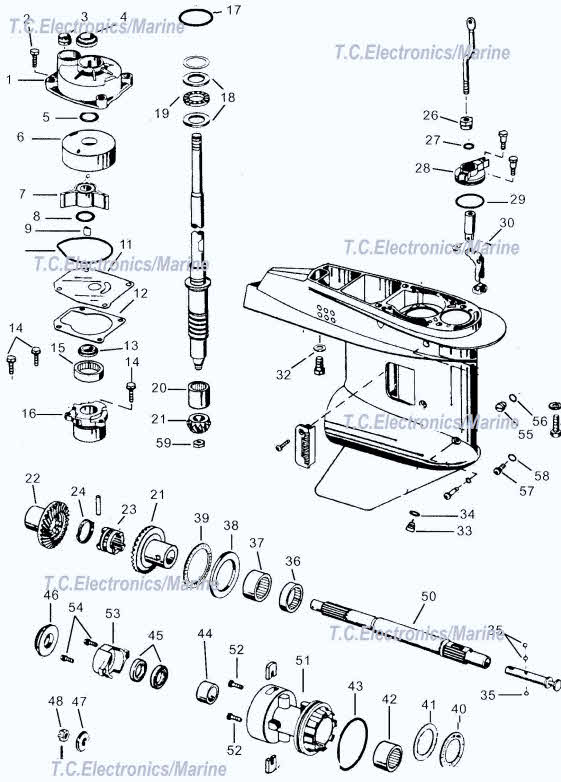

Johnson outboard drawing 40-50 horsepower lower unit

Parts photo
Item
Evinrude / Johnson part description
T 12245 Evinrude Johnson water pump kit.jpg
12245 Evinrude Johnson water pump kit
 1a

# 12245 Click here for water pump kits $58.98

40hp. Commercial 1991 thru
40, 48, 50 hp. 1989 thru

 1a

T 12480 Water pump housing.jpg
12480 Water pump housing
 1

# 12480 Pump hsg. (1989-1998) OEM# 438544 $6.98


 1b

# 12482 Pump hsg. (1995-2001) (2004-2005)

Item is not available (coming soon)
Click here
T 22360 Screw.jpg
22360 Screw
 2

# 22360 Screw OEM # 302325 $3.98


T 86497 Grommet.jpg
86497 Grommet
 3

# 86497 Grommet OEM# 333758 $3.98

T 86491 Grommet jpg
86491 Grommet
 4

# 86491 Grommet OEM# 341732 $3.98

T 82100 O ring.jpg
82100 O ring

 5

# 82100 O-Ring (5 units) OEM# 310584 $4.98

T 12815 Pump cup.jpg
12815 Pump cup
 6

# 12815 Pump cup OEM# 340619 $8.98


 7

# 89790 Impeller  w/o-ring OEM# 432941 $28.98


 7b

#89460 Impeller (1995-2002)

Item is not available (coming soon)
T 81250 O ring.jpg
81250 O ring
 8

# 81250 O-Ring (5 units) OEM# 331188 $4.98

T 89592 Key.jpg
89592 Key
 9

# 89592 Key (5 units) OEM# 334897 $4.98

T 86570 Plate seal.jpg
86570 Plate seal
10

# 86570 Plate seal OEM# 324981 $3.98


11

#12550 Wear plate

Item is not available (coming soon)

T 33150 Gasket.jpg
33150 Gasket

12

# 33150 Gasket OEM# 336530 $3.98

T 86013 Oil seal.jpg
86013 Oil seal

13

# 86013 Oil seal OEM# 342786 $3.98

Click here
# 22362 Screw
14

# 22362  Screw  OEM# 317624 $3.98


15

#11422 Bearing

Item is not available (coming soon)

T 27790 Housing assembly.jpg
27790 Housing assembly

16

# 27790 Bearing hsg. & seal OEM# 435274 $58.98

T 82250 O ring.jpg
82250 O ring

17

# 82250 O-Ring (5 units) OEM# 310327 $9.98

# 21649 Thrust washer
18

# 21649 Thrust washer OEM# 333771 $5.98

#16370 Thrust bearing
19

Sold Out
# 16370 Thrust bearing OEM# 398901 $11.98

# 11430 Bearing
20

# 11430 Bearing OEM# 382343 $11.98

T 22661 Johnson forward gear pinion gear.jpg
# 22661 Pinion & forward gear set
21

# 22661 Gear set OEM# 397627 $241.98

T 22662 Johnson reverse gear.jpg
# 22662 Reverse gear
22

# 22662 Reverse gear OEM# 332489 $135.98

#22663 Clutch dog
23

# 22663 Clutch dog OEM# 332491 $53.98

T 11051 Spring.jpg
11051 Spring

24

# 11051 Spring OEM# 320311 $3.98

T 21133 Pin.jpg
21133 Pin

25

# 21133 Cross pin OEM# 320310 $3.98


26

#27942 Bushing

Item is not available (coming soon)

T 45200 O rings.jpg
45200 O rings

27

# 45200 O-Ring (5 units) OEM# 318372 $4.98

T 27940 Cover bushing assembly.jpg
27940 Cover bushing assembly

28

# 27940 Cover & seal assy. OEM# 434588 $13.98

T 82230 O ring.jpg
