Evinrude/Johnson outboard water pump kit *How to video

GLM Marine aftermarket Evinrude/Johnson water pump kits
with impeller *Key or pin

Click on any photo for larger view and to purchase
impeller, pump, key and o rings.

Contact our tech service number listed below for more help. Please note seals or o rings are also located on each exploded view lower unit drawing.

Notes on outboard installation video:

  1. Impeller should be greased and yes it should be larger than the pump cup it fit into.
  2. Drive shaft should be turned clockwise when installing outboard impeller.
  3. Wheel bearing grease will hold key or pin in place.
  4. O rings and gaskets should be coated with gasket compound.
  5. Oil seals should have loctite 680 or gasket compound on them before installing.
  6. See our installation video at bottom of page.

12137 Evinrude Johnson water pump

12137 Evinrude Johnson water pump

P/N 12137 Johnson Evinrude outboard water pump kit for 4 stroke outboard

  • 4 hp. Deluxe
  • Years 1989 to 1996
  • OEM number

Parts kit included:

  1. Stainless steel bolts 2 units
  2. Grommet
  3. Housing
  4. Cup
  5. impeller
  6. Gasket
  7. Wear plate

12256 Johnson outboard 4 hp 4 stroke water pump kit 0436737

12256 Johnson outboard 4 hp water pump kit

P/N 12256 Johnson Evinrude water pump kits as above with out pump housing

  • 4 hp. Deluxe
  • Years 1989 to 1996
  • OEM part number 0436737
  • 4 Stroke

Included in outboard pump

  1. Stainless steel bolts 2 units
  2. Grommet
  3. Cup
  4. impeller
  5. Gasket
  6. Wear plate

12065 Johnson-Evinrude lower unit water pump kit 4-8 hp.
12065 Johnson-Evinrude lower unit water pump kit 4-8 hp. OEM 396644

P/N 12065 Johnson Evinrude outboard water pump kit for two stroke outboard. $43.95

  • 4 hp. Deluxe 1985 - 1988
  • 4.5 hp. 1980 - 1984
  • 5 hp. 1986 - 1990
  • 5 and 6 hp. 4 stroke 1998
  • 6 hp. 1984 - 1996
  • 7.5 hp. 1980 - 1983
  • 8 hp. 1984 - 1996

Included in kit:

  1. P/N 22322 Stainless steel bolt / 324430
  2. P/N 89594 stainless steel pin / 300611
  3. P/N 86492 grommet / 302497
  4. P/N 12436 housing / 389577
  5. P/N 12818 cup / 324641
  6. P/N 89500 impeller / 389576
  7. P/N 82030 o ring / 305242
  8. P/N 36810 gasket / 325040
  9. P/N 12555 wear plate / 326640

12152 Johnson 9.9 -14 hp 4 stroke water pump impeller kit

P/N 12152 Evinrude water pump kit

  • 9.9 and 14 hp
  • 4 Stroke
  • 302 CC engines
  • Years 2002 to 2005

12049 Johnson-Evinrude 15-25-30 hp e tec water pump impeller kit

12049 Johnson-Evinrude 15-25-30 hp e tec water pump impeller kit

P/N 12049 E-Tec water pump repair kit

  • Years 2011 and up
  • 15, 25 hp and 30 hp
  • OEM part number 5008972

12108 Johnson / Evinrude water pump
12108

water pump repair kit

P/N 12108 Johnson/Evinrude outboard water pump two stroke impeller set. $19.95

  • 3, 4 and 5 hp. 1952 - 1978
  • 4 hp. 1960 - 1983
  • 5 hp. 1965 - 1968
  • 5.5 and 6 hp. 1954 - 1979
  • 7.5 hp. 1954 - 1958
  • 8 hp. 1984 - 1996

12255
12255 Johnson/Evinrude water pump

P/N 12255 Two stroke Johnson Evinrude without housing. $29.95

  • 4 hp. Deluxe 1985 - 1988
  • 4.5 hp. 1980 - 1984
  • 5 hp. 1986 - 1990
  • 5 and 6 hp. 4 stroke 1998
  • 6 hp. 1984 - 1996
  • 7.5 hp. 1980 - 1983
  • 8 hp. 1984 - 1996

Included in kit:

  1. P/N 22322 Stainless steel bolt / 324430
  2. P/N 89594 stainless steel pin / 300611
  3. P/N 86492 grommet / 302497
  4. P/N 12818 cup / 324641
  5. P/N 89500 Water pump impeller / 389576
  6. P/N 82030 o ring / 305242
  7. P/N 36810 gasket / 325040
  8. P/N 12555 wear plate / 326640

12050 9.9 hp 2 stroke years 1974-1996 15 hp 4 stroke 1995-2001
12050 Johnson / Evinrude water pump 9.9 hp 2 stroke years 1974-1996 15 hp 4 stroke 1995-2001

P/N 12050 Two and four stroke 9.9 hp. water pump parts $38.95

  • 8 hp. 4 stroke 1995
  • 9.9 hp. 2 stroke 1974 -1996
  • 9.9 hp. 4 stroke 1995 - 2001
  • 15 hp. 2 stroke 1974 - 1996
  • 15 hp. 4 stroke 1995 - 2001

    Johnson/Evinrude outboard pump includes:
    P/N 89594 stainless steel pin / 300611
    P/N 83200 O ring / 319085
    P/N 86496 grommet / 327035
    P/N 86498 grommet / 338908
    P/N 86492 grommet / 302497
    P/N 22360 Screw contains (4) 302325
    P/N 12460 water pump housing / 435390
    P/N 86120 Oil seal
    P/N 12813 cup / 334097
    P/N 86120 Seal / 318972
    P/N 12610 Wear plate / 318995
    P/N 89770 impeller / 386084

12060 2 cylinder crossflow engines with thru cavitation plate exhaust
12060 Johnson/Evinrude 2 cylinder crossflow engines with thru cavitation plate exhaust

P/N 12060 Johnson outboard pumps with two cylinder cross flow engines with thru-cavitation plate exhaust and two piece gear-case. $31.95
Sierra water pump kit number 18-3383

  • 18 hp. years 1997 to 1998
  • 25 hp. years 1979 to 2005
  • 28 hp. years 1986 to 1998

Included in Johnson/Evinrude outboard pump:

P/N Screw / 324960
P/N grommet / 302497
P/N outboard housing / 330560
P/N cup / 328751
P/N O ring / 301967
P/N Water / impeller / 395289
P/N outboard Impeller key / 330619
P/N gasket / 329390
P/N wear plate / 329391
P/N gasket / 324449
P/N Oil seal / 321459

18-3383 Sierra water pump
18-3383 Sierra water pump kit

P/N Sierra water pump number 18-3383
Johnson pump for two cylinder cross flow engines with thru-cavitation plate exhaust and two piece gear-case. *Replaces GLM Marine part number 12060. $51.95

  • 18 hp. years 1997 to 1998
  • 25 hp. years 1979 to 2005
  • 28 hp. years 1986 to 1998

Included in Sierra water pump kit:

Same as above kit P/N 12060

12070 Water pump kit 1980-2005
12070 Water pump kit 1980-2005

P/N 12070 Evinrude/Johnson two cylinder crossflow engines with thru-prop exhaust and one-piece gear-case. $49.95

  • 20 hp. Thru-prop 1985 - 1998
  • 25 hp. Thru-prop 1985 - 2005
  • 35 hp. Thru-prop 1980 - 1996

Included in set:

P/N 34520 Gasket / 325537
P/N 22360 Screw / 324960
P/N 86492 grommet / 302497
P/N 21427 Brass bushing / 328754
P/N 45230 O ring for bushing /-301877
P/N 12812 cup / 328751
P/N 12470 housing / 393632
P/N 80180 O ring / 311338
P/N 86230 Seal / 328753
P/N 12630 Wear plate / 328755
P/N 34520 Gasket / 325537
P/N 89750 impeller / 395289
P/N 89593 impeller key / 89593

12232 Water pump kit 1971-1978
12232 Water pump kit 1971-1978

with 40 to 50 hp

P/N 12232 Johnson outboard two and three cylinder 50 hp outboard loop-charged engines with the small gear case with half-moon key impeller. $76.95 50 hp years 1971 to 1978.

Parts included:

P/N 22324 bolt / 331980
P/N 12940 Tube guide / 315838
P/N 86494 Grommet / 315837
P/N 22360 bolt / 324960
P/N 12450 housing / 384087
P/N 12814 cup / 320775
P/N 81120 O ring / 303059
P/N 89660 impeller / 377230
P/N 89595 Key / 308928
P/N 86580 seal / 315788
P/N 12620 impeller wear plate / 320981
P/N 33150 gasket / 336530
P/N 86491 Grommet / 341732

12233 3 Cylinder loopcharged engines OEM-437907

12233 3 Cylinder loopcharged engines

P/N 12233 Johnson outboard three cylinder loop-charged water pump repair kit. $55.95
25, 30 and 35 hp. years 1996 to 2001

12210 Water pump kit 1984-1994
12210 Water pump kit 1984-1994

P/N 12210 Two cylinder small housing loop-charged water pump kits. OEM part number 439077 $75.00

  • 40 hp Small housing 1984 - 1988
  • 40 hp Commercial small housing 1993 - 1994
  • 45 hp Commercial small housing 1986 - 1994
  • 48 hp Small housing 1987 - 1988
  • 50 hp Small housing 1986 - 1988
  • 55 hp Commercial small housing 1986 - 1994

Water pump kits parts included:

  1. P/N 22324 bolt / 331980
  2. P/N 12940 Tube guide / 315838
  3. P/N 86494 Grommet / 315837
  4. P/N 22360 bolt / 324960
  5. P/N 12450 housing / 384087
  6. P/N 12814 cup / 320775
  7. P/N 81120 O ring
  8. P/N 89780 impeller / 396809
  9. P/N 89591 key / 331901
  10. P/N 89593 key / 330619
  11. P/N 86580 seal / 315788
  12. P/N 12620 wear plate / 320981
  13. P/N 33150 gasket / 336530
  14. P/N 86491 Grommet / 341732

12235 Water pump kit 1995-2005
12235 Water pump kit 1995-2005

P/N 12235 Two cylinder loopcharged outboard engines with large gear-case with the six vane impeller. $68.95

  • 40 hp Large housing 1995 - 2005
  • 45 hp Commercial large housing for years 1995 to 2005
  • 55 hp Large pump housing 1995 - 2005

Included:
P/N 22351 bolt / 328725
P/N 22352 Screw / 337574
P/N 86497 Grommet / 333758
P/N 12482 hosing / 438545
P/N 12815 cup / 340619
P/N 81140 o ring / 326649
P/N 89710 pump 396725
P/N 89591 impeller / 331901
P/N 89592 key black / 334897
P/N 86570 seal 324981
P/N 12551 wear plate / 341038
P/N 33150 gasket / 336530
P/N 11053 Yellow spring / 343977
P/N 13240 Thermostat cover / 343141
P/N 35440 Gasket / 329830
P/N 86491 Grommet / 341732

12552

P/N 12552 Two cylinder loopcharged outboard engines with large gear-case with the six vane water pump impeller with out housing. $54.95

40 hp. Large housing 1995 - 2005
45 hp. Commercial large housing for years 1995 to 2005
55 hp. Large housing 1995 - 2005

Included
P/N 86490 Grommet / 333758
P/N 12815 cup / 340619
P/N 12550 Wear plate / 319275
P/N 81140 o ring / 326649
P/N 89710 pump 396725
P/N 89591 impeller / 331901
P/N 89592 key black / 334897
P/N 86570 seal / 324981
P/N 12550 wear plate / 341038
P/N 33150 gasket / 336530
P/N 34330 gasket /319586
P/N 86491 Grommet / 341732
P/N 12950 guide / 319276
P/N 22320 Screw / 908158
P/N 22360 Screw / 331979

12245 2 cylinder loopcharged engines with small gearcase
12245 2 cylinder loopcharged engines with small gearcase

P/N 12245 Two cylinder loopcharged engines with small gear-case. Large three vane impeller. $59.89

40, 48 and 50 hp Small gear-case housing 1989 to 1998.

Contain the following parts:

P/N 22360 Screw 324960 (1 unit)
P/N 82100 O ring 310584
P/N 86497 Grommet 333758
P/N 12480 housing
P/N 12815 cup 340619
P/N 81250 O ring 331188
P/N 89790 impeller 432941
P/N 89592 black plastic key 334897
P/N 86570 seal 324981
P/N 12551 wear plate 341038
P/N 33150 gasket 336530
P/N 86491 Grommet 341732

12247 40 hp Small housing years 1974 thru 1976
12247 40 hp Small housing years 1974 thru 1976

P/N 12247 Two cylinder outboards with cross-flow engine water pump. 391741 $62.95

  • 40 hp. Small housing 1974 to 1976
  • 40 hp. Commercial outboards years 1981 to 1987

Included in set:

  1. 86180 oil seal 321466
  2. 89595 key 308928
  3. 86180 oil seal 321466
  4. 86483 Grommet 304028
  5. 12474 housing 390613
  6. 12816 cup 325397
  7. 89990 impeller 390286
  8. 36860 gasket 325229
  9. 12564 wear plate 325398
  10. 36850 gasket 325399

12240 Water pumps 1979 thru 1981
12240 Water pumps 1979 thru 1981

P/N 12240 Two cylinder 40-60 hp. loopcharged engines with large gear-case years 1979 to 2005 $72.00

65, 70, and 75 hp. 3 Cylinder loopcharged engines with large gear-case.
Large gear-case years 1979 to 1985 with the plastic wedge key.

Parts included in set:
P/N 22360 Screw 324960
P/N 22320 bolt 908158
P/N 12950 tube guide 319276
P/N 86490 grommet 314008
P/N 12400 hosing 438543
P/N 33511 gasket 324449
P/N 81140 o ring 326649
P/N 89710 impeller 396725
P/N 89591 impeller key 331901
P/N 89592 Black key 334897
P/N 86570 seal 324981
P/N 12550 wear plate 341038
P/N 33150 gasket 336530
P/N 86491 Grommet 341732

12244
12244

P/N 12244 Three cylinder loopcharged engines with the large gearcase $58.00
Large with half-moon key impeller
70 and 75 hp. years 1974 to 1978

Johnson kit includes the following:

P/N 22360 Screw 324960
P/N 22320 bolt 908158
P/N 12950 tube guide 319276
P/N 86490 grommet 314008
P/N 12400 housing 438543
P/N 12815 cup 340619
P/N 33511 gasket 324449
P/N 81140 o ring 326649
P/N 89940 impeller 382547
P/N 89595 Impeller key 308928
P/N 12550 wear plate 341038
P/N 34330 gasket 319586
P/N 33150 gasket 336530
P/N 86570 seal 324981
P/N 86491 Grommet 341732

12246 Water pump 1986-2001
12246 Water pump 1986-2001

P/N 12246 Three cylinder outboards with loopcharged engines with the large lower unit gearcase with half-moon key impeller $55.09

  • 60 hp. 1989 - 2001
  • 60 and 70 hp. 4 - stroke 1998 - up
  • 65 hp. 1979 - 2001
  • 70 hp. 1979 - 1994
  • 75 hp. 1979 - 1988

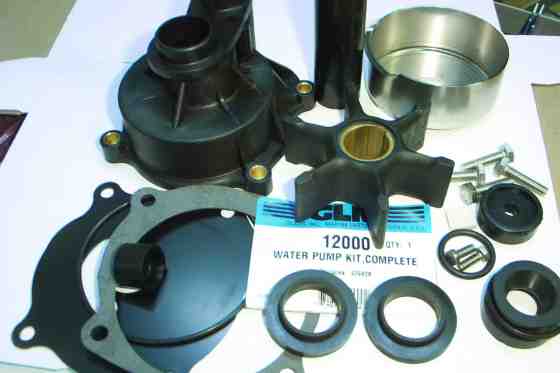

12000 Evinrude-Johnson water pump parts

P/N 12000 Johnson water pump kit for years 1979 to 2006 with V4,V6 and V8 outboard engines, with 25 and 30 inch shaft plastic wedge key impeller $65.00

90 hp. 25" Shaft 1995 - 2003
100 hp. 25" Shaft 1998 - 2005
105 hp. 1998 - 2001
115 hp. 25" Shaft 1995 - 2006
120 hp. 25" Shaft 1985 - 1994
130 hp. 25" Shaft 1995 to 1998
135 hp. 25" Shaft 2000 - 2006
140 hp. 25" Shaft 1985 - 1994
150 hp. 25" Shaft 1993 - 2006
175 hp. 25" Shaft 1993 - 2006
185 hp. 25" Shaft 1993 - 1994
200 hp. 25" or 30" Shaft 1993 - 2006
225 hp. 25" or 30" Shaft 1993 - 2006
250 hp. 25" or 30" Shaft 2006
250 hp. 25" or 30" Shaft 1993 - 1998
300 hp. 25" or 30" Shaft 1993 - 1995

Johnson pump including the following parts:

P/N 12827 Guide tube short / 338636
P/N 12828 Guide tube long / 338667
P/N 89590 keys / 331107
P/N 81160 O ring / 310585
P/N 33730 Gasket / 338484
P/N 12570 Cover / 338893
P/N 22360 Screw (4) 302325
P/N 86480 Cover grommet / 320943
P/N 12395 housing with built in spray hole / 435959
P/N 82120 O ring / 302035
P/N 12811 cup / 338586
P/N 86490 grommet / 314008
P/N 86660 Seal / 331353
P/N 12580 Wear plate / 338485
P/N 22370 Screw (2) 306643
P/N 86500 Shift rod seal / 321008
P/N 81250 O ring / 331188
P/N 89570 impeller / 5001593

12104 Evinrude-Johnson impeller set
12104 Evinrude-Johnson impeller kit
P/N 12104-2 Johnson pumps without case for years 1979 to 2006 with V4,V6 and V8 outboard engines. 25 and 30 inch shaft using plastic wedge key impellers. $46.15

12101 Outboard motor water pumps
12101 Outboard motor water pumps

P/N 12101 Johnson Evinrude water pump years 1976, 1978 and V4 or V6 outboard engines with mechanical-hydraulic shift. Uses a half moon key for the impeller $71.29

  • 85 hp. 25 inch shaft 1977
  • 85, 115, 150 and 235 hp. 1978
  • 100 hp. 1979 - 1980
  • 115 hp. 25 inch shaft 1977
  • 140, 175 hp. 1977 to 1978
  • 200 hp. 1976 to 1978

Water pump kit includes the following parts:

P/N 89595 key half moon stainless steel / 308928
P/N 81160 O ring / 310585
P/N 33730 Gasket / 338484
P/N 12570 Cover / 338893
P/N 22360 Screws (4) or bolts / 302325
P/N 86480 Cover grommet / 320943
P/N 12430 housing with built in spray hole / 435990
P/N 82120 O ring / 302035
P/N 12811 cup / 338586
P/N 86490 grommet / 314008
P/N 86660 Seal / 331353
P/N 12580 Wear plate / 338485
P/N 22370 Screw (2) 306643 $4.29 each
P/N 86500 Shift rod seal / 321008
P/N 81250 O ring / 331188
P/N 89680 impeller / 777212

12072
12072 Evinrude outboard kit
P/N 12072 Johnson/Evinrude water pump kit for years 1976, 1978 and V4 or V6 outboard engines with mechanical-hydraulic shift. As above without case. $44.15

12102 Evinrude Johnson water pump kit
12102 Evinrude Johnson water pump kit

P/N 12102 OEM 5001594 Years 1979 to 2006 Johnson/Evinrude pumps for V4, V6 and V8 outboard engines with 20 inch shaft plastic wedge key impeller. $54.89

85 hp. 1979 - 1980
90 hp. 1981 - 1994
90 hp. 20 inch shaft 1995 - 2003
100 hp. 1984 - 1997
100 hp. 20 inch shaft 1998 - 2005
115 hp. 1979 - 1994
115 hp. 20 inch shaft 1995 - 2006
120 hp. 20 inch shaft 1985 - 1994
130 hp. 20 inch shaft 1995 - 1998
135 hp. 20 inch shaft 2000 - 2006
140 hp. 1979 - 1984
140 hp. 20 inch shaft 1985 - 1994
150 hp. 1979 - 1992
150 hp. 20 inch shaft 1993 - 2006
175 hp. 1979 - 1992
175 hp. 20 inch shaft 1993 - 2006
185 hp. 1984 - 1992
185 hp. 20" Shaft 1993 - 1994
200 hp. 1979 - 1992
200 hp. 20 inch shaft 1993 - 2006
225 hp. 1986 - 1992
225 hp. 20 inch shaft 1993 - 2006
235 hp. 1979 - 1985
250 hp. 20 inch shaft 2006
250 hp. 1991 - 1992
250 hp. 20 inch shaft 1993 - 1998
275 hp. 1985 - 1988
300 hp. 1985 - 1992
300 hp. 20 inch shaft 1993 - 1995

Includes the following parts:

P/N 89590 water key 331107
P/N 81160 O ring / 310585
P/N 33730 Gasket / 338484
P/N 12570 Cover / 338893
P/N 22360 Screw kit contains (4) 302325
P/N 86480 Cover grommet / 320943
P/N 12430 housing with built in spray hole / 435990
P/N 82120 O ring / 302035
P/N 12811 cup / 338586
P/N 86490 Water tube grommet / 314008
P/N 86660 Seal / 331353
P/N 12580 Wear plate / 338485
P/N 22370 Screw kit contains (2) 306643
P/N 86500 Shift rod / 321008
P/N 81250 O ring / 331188
P/N 89570 Impeller / 5001593

12104 outboard kit

P/N 12104 Johnson pump as above without the housing for years 1979 to 2006. V4, V6 and V8 outboard engines with 20 inch shaft plastic wedge key impeller. $46.15

85 hp. 1979 - 1980
90 hp. 1981 - 1994
90 hp. 20 inch shaft 1995 - 2003
100 hp. 1984 - 1997
100 hp. 20 inch shaft 1998 - 2005
115 hp. 1979 - 1994
115 hp. 20 inch shaft 1995 - 2006
120 hp. 20 inch shaft 1985 - 1994
130 hp. 20 inch shaft 1995 - 1998
135 hp. 20 inch shaft 2000 - 2006
140 hp. 1979 - 1984
140 hp. 20 inch shaft 1985 - 1994
150 hp. 1979 - 1992
150 hp. 20 inch shaft 1993 - 2006
175 hp. 1979 - 1992
175 hp. 20 inch shaft 1993 - 2006
185 hp. 1984 - 1992
185 hp. 20" Shaft 1993 - 1994
200 hp. 1979 - 1992
200 hp. 20 inch shaft 1993 - 2006
225 hp. 1986 - 1992
225 hp. 20 inch shaft 1993 - 2006
235 hp. 1979 - 1985
250 hp. 20 inch shaft 2006
250 hp. 1991 - 1992
250 hp. 20 inch shaft 1993 - 1998
275 hp. 1985 - 1988
300 hp. 1985 - 1992
300 hp. 20 inch shaft 1993 - 1995

Includes the following water pump parts:

P/N 89590 Key / 331107
P/N 81160 O ring / 310585
P/N 33730 Gasket / 338484
P/N 12570 Cover / 338893
P/N 22360 Screw kit contains 4 units / 302325
P/N 86480 Cover grommet / 320943
P/N 82120 O ring / 302035
P/N 12811 cup / 338586
P/N 86490 Water tube grommet / 314008
P/N 86660 Seal / 331353
P/N 12580 Wear plate / 338485
P/N 22370 Screw kit contains 2 units / 306643
P/N 86500 Shift rod / 321008
P/N 81250 O ring / 331188
P/N 89570 impeller / 5001593

M 12136 Johnson 250 hp engine water pump impeller set

M 12136 Johnson 250 hp engine water pump impeller set

P/N 12136 Evinrude water pump

  • OEM number 5007972
  • Years 2009 to 2011
  • 3.4 liter engine
  • 250 hp HO model

89570 Impeller V4 V6 V8 1979-2006
89570 Outboard impeller

P/N 89570 GLM aftermarket Johnson/Evinrude outboard impeller with inside diameter .875 inch outside 3.500 inch. V4, V6 & V8 mechanical shift lower units requires P/N 89590 plastic wedge key 5001593 $19.15

Hp and years for Evinrude outboard motors
85 hp. years 1979 and 1980
90 hp. years 1981 to 1994
90 hp. 20 and 25 inch shaft years 1995 to 2003
100 hp. years 1979 to 1980
100 hp. years 1984 to 1987
100 hp. 20 and 25 inch shaft years 1998 to 2005
105 hp. years 1998 to 2001
115 hp. years 1979 to 1994
115 hp. 20" and 25" shaft years 1995 to 2006
120 hp. 20" and 25" shaft years 1985 to 1994
130 hp. 20" and 25" shaft years 1995 to 1998
135 hp. 20" and 25" shaft years 2000 to 2006
140 hp. years 1979 to 1984
140 hp. 20' and 25" shaft years 1985 to 1994
150 hp. years 1979 to 1992
150 hp. 20" and 25" shaft years 1993 to 2006
175 hp. years 1979 to 1992
175 hp. 20" and 25" shaft years 1993 to 2006
185 hp. years 1984 to 1992
185 hp. 20" and 25" shaft years 1993 to 1994
200 hp. years 1979 to 1992
200 hp. 20" and 25" shaft 1993 to 2006
225 hp. years 1986 to 1992
225 hp. 20", 25" and 30" shaft 1993 to 2006
235 hp. years 1979 to 1985
250 hp. 20", 25" and 30" shaft years 2006
250 hp. years 1991 to 1992
250 hp. 20, 25 and 30 inch shaft 1993 to 1998
275 hp. years 1985 to 1998
300 hp. years 1985 to 1992
300 hp. 20, 25 and 30 inch shaft 1993 to 1995

  1. Note: Installation is easy if grease is placed on outboard impeller and inside of the cup area.
  2. Press pump housing down as you slowing turn the outboards drive shaft clockwise.
  3. Please see video at top of page and note the impeller is about 1/4 inch larger that the cup and housing area.
  4. Contact order desk for Evinrude / Johnson outboard manuals or for that matter any outboard manuals required for V4 cross flow outboards that were produced from years 1968 to 1997 for service
  5. Free shipping on water pump only orders of $300.00 or more, the add to cart shipping cost will be refunded in this case.
