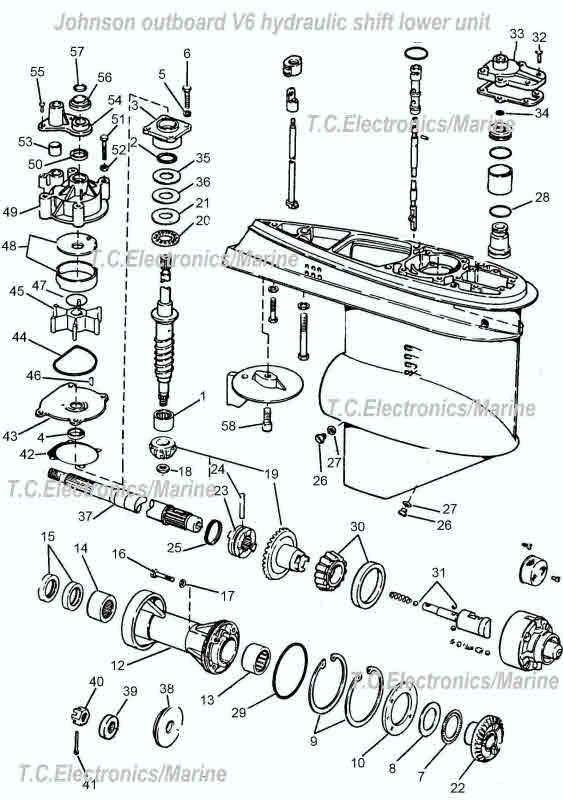

Evinrude / Johnson outboard V6 hydraulic shift lower unit parts and drawing for years 1976, 1977 and 1978
  • GLM Marine aftermarket Johnson outboard parts and drawing for use with Hydraulic shift lower units
  • Use with lower unit years from 1976 thru 1978
  • Click on thumb-nail pictures below drawing to see larger photo or purchase from add to cart with Visa, MC and paypal
  • We plan on having all pricing and pictures in by 07/31/06
  • Note items in stock at both location USA and Canada
W Johnson V6 Hydraulic shift 1976-1978.jpg
Johnson V6 Hydraulic shift 1976-1978

Parts photo
#
Evinrude / Johnson part description
# 21610 Drive shaft bearing
# 1

# 21610 Pinion bearing $31.79
OEM# 387817

T 81380 O ring.jpg
81380 O ring
# 2

# 81380 O-ring drive shaft bearing (5 units) $4.79
OEM# 314725


T 85120 Oil seal.jpg
85120 Oil seal
# 4

# 85120 Oil seal, drive shaft $7.79
OEM# 321453

Click here
# 16300 Thrust bearing

# 7

# 16300 Thrust bearing $5.79
OEM# 382408

Click here
# 21642 Thrust washer
# 8

# 21642 Thrust washer $10.79
OEM # 314731


# 9

N/A
# 11410 Roller bearing
# 14

# 11410 Bearing 13/16" I.D. $9.79
OEM# 387247

T 85130 Oil seal.jpg
T 85130 Oil seal
# 15

# 85130 Prop shaft seal $9.79
OEM# 320862


# 16

# 22300 Carrier retaining screw (4 units) $11.79
OEM# 316563

# 11190 Pinion nut
# 18

# 11190 Nut $2.79
OEM# 314730

T 22621 forward pinion 1978-1981.jpg
# 22621 Forward and pinion gear 1978 thru 1981
# 19

# 22621 Pinion & foward gear $528.79
OEM# 320635

Click here
# 16330 Thrust bearing
# 20

# 16330 Thrust bearing $25.79
OEM# 387656

Click here
T 21645 Trust washer.jpg
21645 Trust washer
# 21

# 21645 Pinion, thrust bearing $6.79
OEM# 327656

# 22624 Reverse gear V6
# 22

# 22624 Reverse gear V6 $254.79
OEM# 910994

Click here
# 22625 Clutch dog
# 23

# 22625 Clutch dog $95.79
OEM# 337774


T 21135 Cross pin.jpg
21135 Cross pin
# 24

# 21135 Pin, clutch dog $2.79
OEM# 313448

# 11052 Spring
# 25

# 11052 Spring $2.79
OEM# 324369

21731 Draining screw
# 26

# 21731 Draining Screw $5.79
OEM# 318544


# 28

# 82130 O-ring, shift (5 units) $9.79
OEM# 320140

T 82400 O ring.jpg
82400 O ring
# 29

# 82400 O-ring prop shaft carrier (5 units) $9.79
OEM# 305123

T 22490 Detente ball.jpg
22490 Detente ball
# 31

# 22490 Detent ball $2.79
OEM# 316506


# 33

N/A

# 34

# 45200 O-ring, shift rod (5 units) $9.79
OEM# 318372

T 12000 water pump.jpg
12000 water pump
T 12102 Johnson pump.jpg
12102 Johnson pump


See Water pump  page for unit required
Click on photo for water pump page
# 23590 Shim .003
# 36A

# 23590 Shim .003 $4.79
OEM# 323362

# 23580 Shim .004
# 36B

# 23580 Shim .004 $4.79
OEM# 323361

# 23510 Shim .005
# 36C

# 23510 Shim .005 $4.79
OEM# 314745


# 37

# 22415..

# 38

# 22220 Prop thrust washer/bushing $25.79
OEM# 333592

# 22190 Spacer
# 39

# 22190 Spacer $11.79
OEM# 320570


# 40

# 22180  Prop nut
OEM# 320569
Not yet available (coming soon)
22100 cotter pins.jpg
22100 cotter pins
# 41

# 22110 Prop nut cotter pin (10 units) $9.79
OEM# 309955

T 33730 Gasket.jpg
33730 Gasket
# 42

# 33730 Plate gasket (5 units) $9.79
OEM# 338484

12580 Wear plate.jpg
12580 Wear plate
# 43

# 12580 Impeller wear plate $8.79
OEM# 321118


# 44

# 86660 Plate seal 1 unit $4.79
OEM# 331353

Click here
T 89680 Evinrude Johnson outboard impeller.jpg
89680 Evinrude Johnson outboard impeller
# 45

# 89680 Impeller W.P. $34.79
OEM# 385528

T 89595 water pump key.jpg
89595 water pump key
# 46

# 89595 Impeller key (1 unit) $6.79
OEM# 308928

T 12811 Pump cup.jpg
12811 Pump cup
# 48

# 12811 Pump cup $10.79
OEM# 338486

T 12395 Pump housing.jpg
12395 Pump housing
# 49

# 12395 Pump housing $9.79
OEM# 435959


# 50

# 85120 Oil seal $8.79
OEM# 321453

Click here
T 22360 Screw.jpg
22360 Screw
# 51

# 22360 Screw $4.79
OEM# 302873


# 52

# 21673 Washer screw
OEM# 305981
TEMPORARILY SOLD OUT

# 53

# 86490 Water tube grommet $4.79
OEM# 314008

T 12570 Tube guide.jpg
12570 Tube guide
# 54

# 12570 Water tube guide $4.79
OEM# 338893

T 22370 Screw.jpg
22370 Screw
# 55

# 22370 Screw $4.79
OEM# 306643


# 56

# 86480 Grommet $4.79
OEM# 320943

T 81160 o ring for drive shaft.jpg
81160 o ring for drive shaft
# 57

# 81160 O-ring (5 units) $4.79
OEM# 310585

Click here
T 22368 Bolt.jpg
22368 Bolt.
# 58

# 22368 Screw $4.79
OEM# 313715
