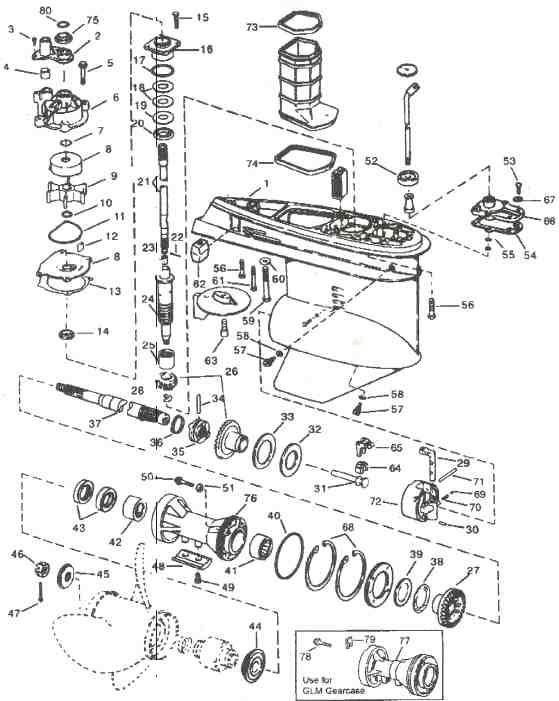

V4 gearcase 90 degree power head Years 1978 thru 1998 lower unit tech drawing
Johnson outboard V4 90 degree lower unit.jpg
Johnson outboard V4 90 degree lower unit parts and drawings

Parts photo


# 1A

# 28210


# 1B

# 28200


# 1C

# U28200

T 87600 Johnson seal kit.jpg
87600 Johnson seal kit
# 1D

# 87600 Complete lower unit seal kit OEM # 5006373 $60.79


# 2

# 12570 Tube guide OEM # 338893 $4.79

# 22362 Screw
# 15

# 22362 Screw OEM # 317624 $4.79

# 22720 Bearing housing & seal
# 16

# 22720 Bearing hsg. & seal
OEM # 439476 $66.79



# 17

# 81380 O-Ring (5 units) OEM # 314728 $4.79

# 23590 Shim .003
# 18

# 23590 Shim .003 OEM # 323362 $4.79

# 23580 Shim .004
# 18

# 23580 Shim .004 OEM # 323361 $4.79

# 23510 Shim .005
# 18

# 23510 Shim .005 OEM # 314745 $4.79

# 21645 Thrust washer
# 19

# 21645 Thrust washer  OEM # 327656 $6.79

# 16330 Thrust bearing
# 20

# 16330 Thrust bearing OEM # 387656 $25.79
