Drawing
1 thru 20 loopcharged large gearcase
2 cylinder 40-60 hp years 1975 thru 2006
3 cylinder 60-65-70-75 hp years 1975 thru 2001

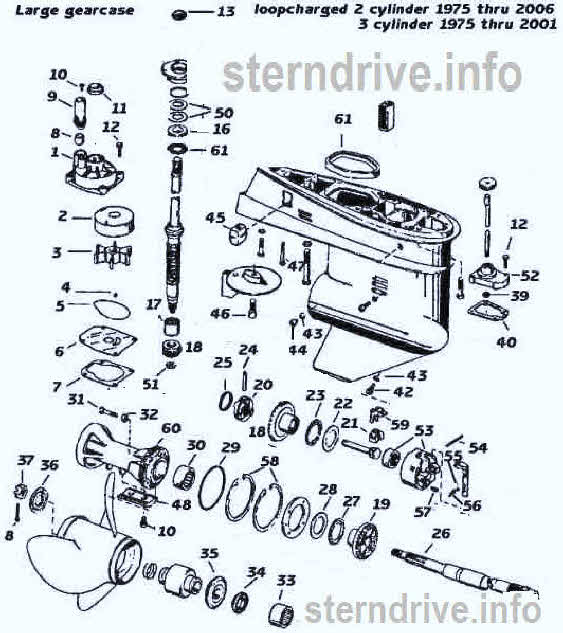

2 & 3 Cylinder loopcharged gearcase parts identification drawing 1 thru 20

  • 2 Cylinder large gearcase years 1975 thru 2006 with 40-60 horsepower loopcharged power heads
    3 Cylinder large gearcase 1975 thru 2001 with 60-75 hp loopcharged powerhead
  • Physical characteristics are 17- 7/16 inches tall and six holes above the cavitation plate. Outside rear hub measures 4 -1/16 inches intake water intake screens ( 3 holes ) with no pilot
2 Cylinder Johnson outboards years 1975-2006

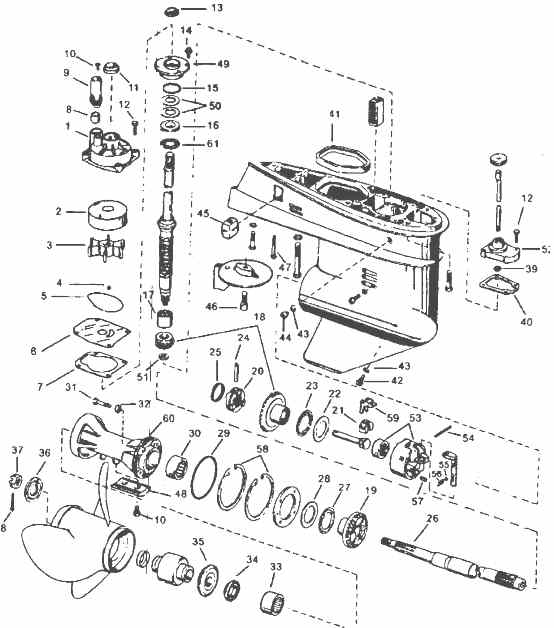

Johnson loopcharged parts 2 and 3 cylinder lower unit.

Click on
photo,s
bellow

12246 Water pump kit 60, 65 & 70 hp years 1986 thru 2001
A

# 12246 Water pump kit 60, 65 & 70 hp years 1986 thru 2001 $62.79
OEM # 432955

12240 johnson outboard water pump
B

# 12240 Johnson water pump kit
40 thru 60 hp years 1979 thru 2005
65, 70 & 75 hp years 1979 thru 1985
OEM # 438602  $57.79

12244 johnson outboard water pump
C

# 12244 Water pump kit $54.79
70 and 75 hp 3 cylinder 1974 thru 1978
OEM # 438579

12400 Water pump housing
1

# 12400 Pump housing $12.79
OEM # 438543

12815 Pump cup
2

# 12815 Pump cup $9.79
OEM # 340619

89710 Water pump impeller
3

# 89710 Impeller 1979 thru 2006 $21.79
OEM # 396725

3

# 89940 Impeller 1975 thru 1978 $27.79
OEM # 382547

T 89595 water pump key.jpg
# 89595 Water pump key
4

# 89595 key 1975 -1978 $6.79
OEM # 308928

89591 Key white
4

# 89591 key white ( five units ) 1979 - 2006 $9.79
OEM # 331901

89592 Key
4

# 89592 key black ( five units ) 1979 - 2006 $4.79
OEM # 334897

34330 Water pump gasket
5A

# 34330 Gasket 1975-1978 $4.79
OEM # 319586

86570 Plate seal
5B

# 86570 Water pump seal years 1979 thru 2006 OEM # 324981 $ 4.79

34330 Water pump wear plate
6

# 12551 Wear plate $4.79
OEM # 341038


8

# 86490 Grommet $4.79
OEM # 314008

12950 Tube guide
9

# 12950 Tube guide $4.79
OEM # 319276

22320 Screws
10

# 22320 screws stainless steel (five unit) $9.79
OEM # 908158

86491 Grommet
11

# 86491 Grommet $4.79
OEM # 341732

22360 Screw
12

# 22360 Screw $3.98
OEM # 302325

86013 Oil seal
13

# 86013 Oil seal $4.98
OEM # 342786

22327 Stainless steel bolt
14

# 22327 Stainless steel bolt $3.98
OEM # 909386

21643 Thurst washer
16

# 21643 Thrust washer $4.98
OEM # 317230

11430 Roller bearing
17

# 11430 Roller bearing $11.98
OEM # 382343

22671 Pinion forward gear
18A

# 22671 Gear set $198.98
OEM # 397338

22670 Johnson outboard gears
18B

# 22670 Gear set $332.98
OEM # 397338+318304+318303

22672 Reverse gear
19

# 22672 Reverse gear $138.98
OEM # 318304

22673 Clutch dog
20

# 22673 Clutch dog $52.98
OEM # 318303
