V4-V6 Type "O" Evinrude / Johnson outboard parts

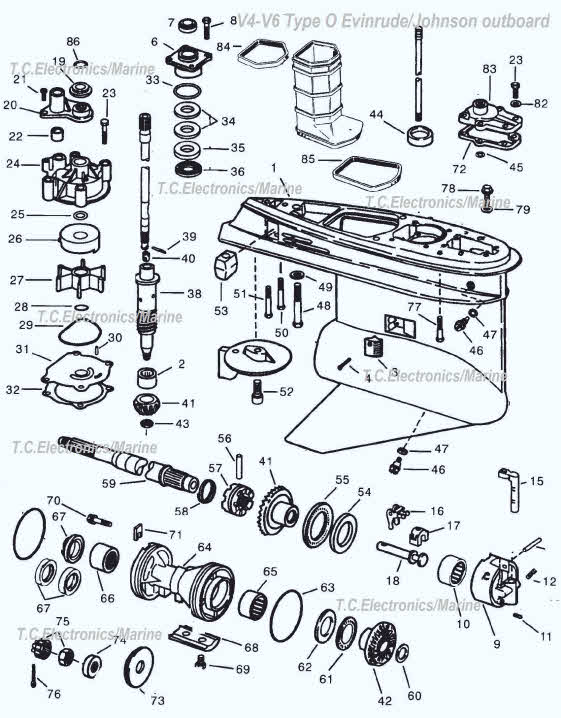

Exploded drawing years 1979 thru 2006

  • GLM Marine aftermarket Johnson outboard parts and exploded tech drawing for use with V4 & V6 Type "O" lower unit years 1979 and up
  • Gear ratios as follows V4 ratio 2.25:1 and V6 ratio 1.85:1

Johnson-outboard-parts-exploded-drawing-V4-V6-1979-2006-Type-O

Parts photo
#

# 1

# 28700 GLM aftermarket lower unit Johnson outboard gearcase & cover guide with speedo (empty housing) $799.79
OEM # 439973

21610 Drive shaft & pinion gear bearing
# 2

# 21610 Pinion bearing (lower unit drive shaft and pinion gear) $31.79
OEM # 387817

21885 Screen
# 3

# 21885 Screen $8.79
OEM# 337778

22363 Screw
# 4

# 22363 Screw $4.79
OEM# 337061

85840 lower unit seal
# 5

# 85840 Seal (exhaust)
OEM # 320961 $7.79

22720 Bearing housing Johnson outboard parts with seal
# 6

# 22720 Bearing housing and seal $66.79
OEM # 439476

87600 Seal kit
# 7B

# 87600 Seal kit (lower unit) $60.79
OEM # 439141
Click here for blow up of seal kit
86011 Oil seal
# 7

# 86011 Oil seal (included in seal kit) $7.79
OEM # 341280

22362 bolt
# 8

# 22362 bolt $4.79
OEM# 317624

27700 Housing & bearing assy.
# 9

# 27700 Housing & bearing assy. $164.79
OEM# 389455

22910 Bearing
# 10

# 22910 Bearing $53.79
OEM# 389039

21138 Pin
# 11

# 21138 Pin $4.79
OEM# 331880

21137 Pin
# 12

# 21137 Pin $4.79
OEM# 328825

22491 Detent ball
# 13

# 22491 Detent ball $4.79
OEM# 160084

11055 Spring
# 14

# 11055   Spring  $4.79
OEM# 911962


27720 Detent
# 15

# 27720 Detent shaft OEM # 915954 $54.79

27740 Lever
# 16

# 27740 Lever $27.79
OEM# 322938

27730 Cradle
# 17

# 27730 Cradle $10.79
OEM# 334163

27710 Shaft
# 18

# 27710 Shaft $56.79
OEM# 322941

12102 Johnson pump

# 19 thru # 32 Included in water pump kit

# 12102 fits 1979 thru 2006 with V4,V6, & V8 engines with (spray in pump housing # 12430) in kit $54.79

12000 water pump


# 12000 fits 1979 thru 2006 with V4,V6, & V8 engines with 20 inch shaft $59.79
Same as 12102 except with-out spray hole in pump housing OEM # 50011595


86480 Grommet
# 19

# 86480 Grommet (Water pump) $4.79
OEM # 320943

12570 Tube guide
# 20

# 12570 Water tube guide $4.79
OEM # 322941

22370 Water pump screw
# 21

# 22370 Water pump screw $4.79
OEM # 306643

86490 Grommet
# 22

# 86490 Grommet (Water pump) $4.79
OEM # 314008

22360 Screw
# 23

# 22360 Water pump screw $4.79
OEM # 303325

12430 Water pump housing with exhaust housing spray
# 24A

# 12430 Water pump housing for 25 & 30 " exhaust housing, (spray hole in housing) for exstra cooling for long shaft units $8.79
OEM # 435990

OEM # 435959 use with 20 inch shaft
12395 Water pump housing with out spray hole
# 24B

# 12395 Water pump housing with out spray hole $9.79
OEM # 435959

81250 O ring
# 25

# 81250 O-ring for water pump case (5 units) $4.79
OEM # 331188

12811 water pump cup
# 26

# 12811 Water pump cup stainless steel $10.79
OEM # 338486

89570 impeller
# 27

# 89570 water pump impeller $15.79
OEM # 5001593

82120 Water pump o ring
# 28

# 82120 O-ring water pump (5 units) $6.79
OEM # 302035

86660 seal
# 29

# 86660 Seal (water pump) (1 unit) $5.79
OEM # 331353
