V4-V6 Type "O" Evinrude / Johnson outboard parts

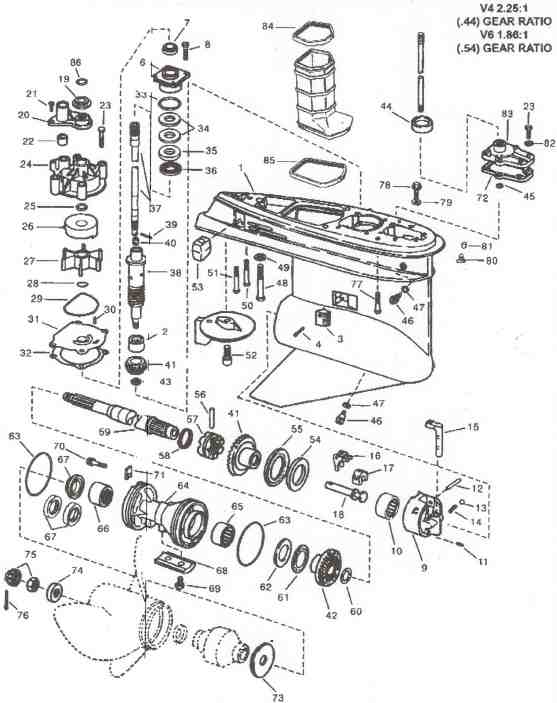

Exploded drawing years 1979 thru 2006

  • GLM Marine aftermarket Johnson outboard parts and exploded tech drawing for use with V4 & V6 Type "O" lower unit years 1979 and up
  • Gear ratios as follows V4 ratio 2.25:1 and V6 ratio 1.85:1

Johnson-outboard-parts-exploded-drawing-V4-V6-1979-2006-Type-O

Parts photo
#
16300 Thrust bearing
# 61

# 16300 Thrust bearing $5.79
OEM# 382408

21642 Thrust washer
# 62

# 21642 Thrust washer $10.79
OEM# 314731

82400 O ring
# 63

# 82400 O-Ring (5 units) $4.79
OEM# 305123

11406 Bearing carrier 13/16
# 64

# 11406 Bearing carrier 13/16" $197.79
OEM# 5000074

11408 Bearing carrier
# 64

# 11408 Bearing carrier 1 1/4" $209.79
OEM# 5004257

22870 Bearing
# 65

# 22870 Bearing $15.79
OEM# 382407

11410 Roller bearing
# 66

# 11410 Bearing 13/16" I.D. $9.79
OEM# 387247

22950 Bearing
# 66

# 22950 Bearing 1 1/14" I.D. $18.79
OEM# 434467

86012 Oil Seal
# 67

# 86012 Oil seal 1 1/4" 1 pc. $10.79
OEM# 341281

86810 lower gearcase oil seal
# 67

# 86810 Oil seal 1 1/4" 2 pcs. $9.79
OEM# 334950

85130 Oil seal
# 67

# 85130 Oil seal 1 3/16" 2 pcs. $9.79
OEM# 320862

12737 Anode
# 68

# 12737 Anode $11.79
OEM # 336565

22320 Screw (5 units)
# 69

# 22320 Screw (5 Units) $4.79
OEM# 908158


# 70

# 22373 Screw $4.79
OEM# 350271

27850 Tab
# 71

# 27850 Tab $20.79
OEM# 333957


# 72

# 33020 Gasket (5 units) $4.79
OEM# 324670

22221 Prop thrust washer
# 73

# 22221 Prop thrust washer $25.79
OEM# 126870

22190 Spacer
# 74

# 22190 Spacer $11.79
OEM# 320570

22185 Prop nut & keeper
# 75

# 22185 Prop nut & keeper $5.79
OEM# 398042

22142 Cotter pin (5 units)
# 76

# 22142 Cotter pin (5 units) $4.79
OEM# 306394

22371 Screw
# 77

# 22371 Screw 3/8x1 3/4-16 $5.79
OEM# 331999

22374 Screw
# 78

# 22374 Screw $4.79
OEM# 341220

# 79

# 21677 Seal washer $4.79
OEM# 437330

28352 Nipple
# 80

# 28352 Nipple $4.79
OEM# 336535

28353 Cap
# 81

# 28353 Cap $4.79
OEM# 305749

21678 Washer
# 82

# 21678 Washer $4.79
OEM# 328702

27752 Cover seal assembly
# 83

# 27752 Cover & seal assy. $22.79
OEM# 5006241

85830 exhaust seal
# 84

# 85830 Seal (exhaust) $9.79
OEM # 320936

85840 Seal
# 85

# 85840 Seal (exhaust) $7.79
OEM # 320961

81165 O rings
# 86

# 81165 O-ring (5 units) $5.79
OEM # 310585
