GLM Marine aftermarket bearing carrier for Johnson outboard lower gearcase
  • GLM marine aftermarket Johnson outboard bearing housing assembly Includes housing, seals and bearings
  • OEM # 439476
  • GLM marine aftermarket Johnson outboard parts drawing and chart identifies horsepower or year
Aftermarket Johnson outboard parts

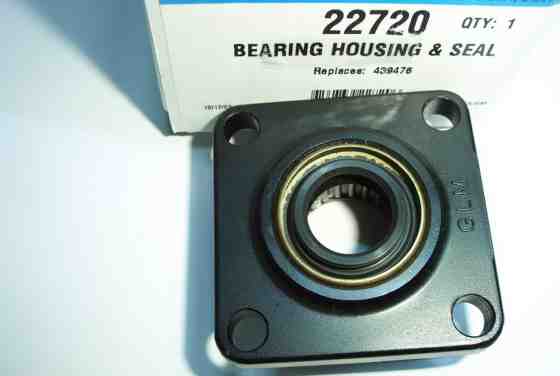

W 22720 Johnson outboard bearing carrier.jpg
# 22720 Bearing housing and seals

# 22720 Bearing housing and seals OEM # 439476 $66.79



Aftermarket Johnson outboard parts

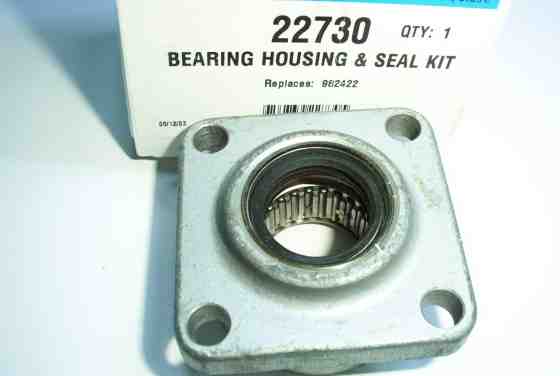

W-22730 Bearing carrier housing Johnson parts.jpg
22730 Bearing carrier housing Johnson parts

# 22730 Bearing, housing and seals $96.79
