Johnson/Evinrude parts V4 60 degree 1995-2005

Johnson / Evinrude outboard parts V4 60 degree lower unit gearcase
Years 1995 to 2005

V4 60 degree gear-case identification
  • Small gear-case, new style 1995-2005 used only on 60 degree V4 engines with the standard 20 inch shaft.
  • Used on the 75 and 90 horsepower inline 3 cylinder E-Tec outboard engines 2004 to 2006 with a 20 inch shaft.
  • Physical characteristics 19-1/16 inch high curved at the trailing end of the gear housing and the fin. Rear propeller hub area 4-1/8 inch.
  • Flat at the trailing end of the cavitation plate with two slots above the cavitation plate and external water intake screen
  • Gear ratio 2.00 : 1 reduction .50 with 13 tooth pinion and 26 tooth forward and reverse gear.

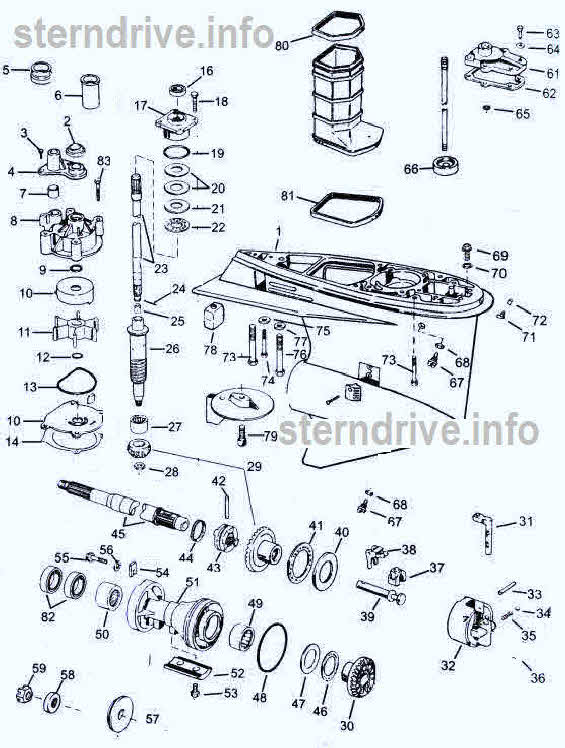

 outboard V4 60 degree gearcase parts

outboard V4 60 degree gearcase parts

Parts photo
P/N 28510 Complete gearcase OEM 5004632 Call for availability and current pricing
12102 Evinrude Johnson Water pump
12102 Evinrude Johnson Water pump
Item B
P/N 12102
Water pump kit OEM 5001594 $54.29

87600  seal kit
87600 seal kit
Item C
P/N 87600
Seal kit OEM 5000411 $49.09


Item 1
P/N 28500
Gearcase assembly OEM 5004767 $779.89
86480 Grommet
86480 Grommet
Item 2
P/N 86480
Grommet OEM 320943 $4.89

22370 Screw
22370 Screw
Item 3
P/N 22370
Screw OEM 306643 $4.89

12570 Tube Guide
12570 Tube Guide
Item 4
P/N 12570
Tube guide OEM 338893 $4.89


Item 5
P/N 86495
Grommet OEM 338601 $4.89

12827 Tube spacer
12827 Tube spacer
Item 6
P/N 12827
Tube spacer, short. OEM 338636 $4.89

86490 Grommet
86490 Grommet
Item 7
P/N 86490
Grommet OEM 314008 $4.89

12430 Water pump housing
12430 Water pump housing
Item 8
P/N 12430
Pump housing, a 20 inch transom. OEM 435990 $10.79

81250 O ring
81250 O ring
Item 9
P/N 81250
O-rings, 5 units OEM 331188 $4.89


Item 10
P/N 12395
Pump housing, 25 inch transom. OEM 435959 $10.89

89570 Impeller
89570 Impeller
Item 11
P/N 89570
Impeller OEM 439476 $26.89

82120 O ring
82120 O ring
Item 12
P/N 82120
O rings, 5 units. OEM 302035 $5.89

86660 Seal
86660 Seal
Item 13
P/N 86660
Seal OEM 331353 $4.89

33730 Gasket
33730 Gasket
Item 14
P/N 33730
Gasket OEM 338484 $4.89

89590 Key
89590 Key
Item 15
P/N 89590
Key OEM 331107 $4.89

86011 Oil seal
86011 Oil seal
Item 16
P/N 86011
Oil seal OEM 341280 $8.89

22720 Bearing housing
22720 Bearing housing
Item 17
P/N 22720
Bearing housing and seals OEM 439476 $66.89

22362 Screw
22362 Screw
Item 18
P/N 22362
Screw OEM 317624 $4.89

81380 O ring
81380 O ring

Item 19
P/N 81380
O rings 5 units. $4.89

23510
23510
Item 20
P/N 23510
Shims .005 (two units). OEM 314745 $4.89

 23580 Shims
23580 Shims
Item 20
P/N 23580
Shim .004, two units. OEM 323361 $5.89

23590
23590
Item 20C
P/N 23590
shims .003, two units. OEM 323362 $4.89
