GLM aftermarket V4 Johnson Outboard Motor Parts Drawing

  • V4 aftermarket lower unit outboard motor parts for OMC / Evinrude / Johnson outboards
  • Component chart and drawing identifies our aftermarket parts
  • Tech consultant help line for T.C.Electronics / Marine is (416) 751-7326

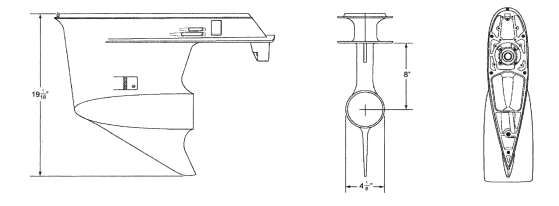

V-4 Johnson / Evinrude Outboard Motor Parts
Evinrude Johnson outboard parts V4 drawing.jpg
Seal Kit For Outboard Motor Parts V4 Johnson Click Here
Johnson Parts Layout for use with V4 Outboard item Numbers

  1. Grommet # 86480
  2. Tube guide # 12570
  3. Screw # 22370
  4. Grommet # 86490
  5. Screw # 22360
  6. Pump housing # 12430 Pump housing # 12395
  7. O-ring # 81250
  8. Cup & plate assy.# 12880
  9. Impeller # 89570
  10. O-ring # 82120
  11. Seal # 86660
  12. Key # 89590
  13. Gasket # 33730
  14. Oil seal # 86011
  15. Screw # 22362
  16. Bearing housing # 22720
  17. O-ring # 81380
  18. Shim .003 # 23590 / Shim .004 # 23580 / Shim .005 # 23510
  19. Thrust washer # 21645
  20. Thrust bearing # 16330
  21. Drive shaft (L) # 22433 / Drive shaft (XL) # 22434 / Drive shaft (L) # 22435
  22. Pin # 21139
  23. Retainer # 28351
  24. Lower drive shaft 22409
  25. Pinion bearing # 22880
  26. Forward gear set 22631
  27. Reverse gear # 22632
  28. Nut # 11190
  29. Detente # 27720
  30. Pin # 21138
  31. Shaft # 27710
  32. Thrust washer # 21644
  33. Thrust bearing # 16310
  34. Cross pin # 21135
  35. Clutch dog # 22633
  36. Spring # 11052
  37. Prop shaft # 22416
  38. Thrust bearing # 16300
  39. Thrust washer # 21642
  40. O-ring # 82370
  41. Bearing # 22870
  42. Bearing # 22860
  43. Oil seal # 86030
  44. Thrust washer # 22230
  45. Spacer # 22250
  46. Nut # 22150
  47. Cotter pin # 22120
  48. Anode # 12737
  49. Screw # 22320
  50. Screw & seal # 22300
  51. Seal # 86640
  52. Grommet # 86500
  53. Screw # 22360
  54. Gasket # 33020
  55. O-ring # 45200
  56. Screw # 22371
  57. Draining screw # 21731
  58. Gasket # 31171
  59. Screw # 22374
  60. Washer # 21674
  61. Screw # 22366
  62. Anode # 12766
  63. Screw # 22368
