Johnson outboard motor parts for 4, 4.5, 5, 6, 7.5 and 8 horsepower 1980 and up lower unit with 2 stroke outboard powerheads
  • T.C.Electronics / Marine technicical help number is (416) 751-7326
  • Note at this time we do not have propeller shafts, drive shafts, bearing carriers or gears for this lower unit
  • We have only numbered parts in stock for 4, 4.5, 5, 6, 7.5 and 8 horsepower lower units

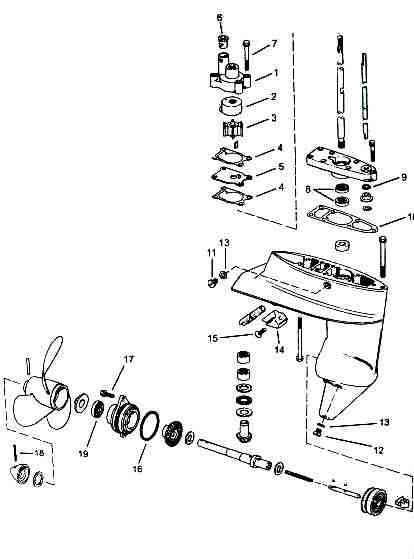

W Johnson 4 4.5 5 6 7.5 8 hp drawing.jpg
Johnson outboard 4, 4.5, 5, 6, 7.5 and 8 hp. drawing

Parts photo
#
Evinrude / Johnson lower unit parts description
12065 Johnson outboard water pump
# A

P/N 12065 Water pump kit includes housing and key $39.29
OEM 396644 or 389844

  • 4 hp. Deluxe 1985 thru 1988
  • 4.5 hp. 1980 thru 1984
  • 5 hp. 1986 thru 1990
  • 5 hp. 4 stroke 1998
  • 6 hp. 1984 thru 1996
  • 6 hp. 4 stroke 1998
  • 7.5 hp. 1980 thru 1983
  • 8 hp. 1984 thru 1996

12436 Pump housing
# 1

# 12436 Water pump housing $12.29
OEM # 389577

12818 Pump cup
# 2

P/N 12818 Pump cup $10.29
OEM 324641

89500 Impeller
# 3A

P/N 89500 Impeller $12.29
OEM 436137

  • 4 hp. (90) 1981 thru 1990
  • 4 hp. Deluxe 1985 thru 1988
  • 4.5 hp. 1980 thru 1984
  • 5 hp. 1986 thru 1990
  • 5 hp. 4 stroke 1998
  • 6 hp. 1984 thru 1996
  • 6 hp. 4 stroke 1998
  • 7.5 hp. 1980 thru 1983
  • 8 hp. 1984 thru 1996

89580-Impeller
# 3B

P/N 89580 Impeller $14.29
OEM 434424

  • 3 and 4 hp. 1969, 1970, 1971 and 1972
  • 4 hp. (Model 110) 1973 thru 1982
  • 5 hp. 1965 thru 1968
  • 5.5 hp. 1956 thru 1964
  • 6 hp. 1965 thru 1979
  • 7.5 hp. 1954 thru 1959

36810 Water pump gasket
# 4

P/N 36810 Gasket included in water pump kit
OEM 325040
# 5

P/N 12611 Wear plate included
in water pump kit OEM 324640
86492 Grommet
# 6

P/N 86492 Grommet $4.29
OEM 302497

22324 Bolt
# 7

P/N 22324 Screw (2 units) $4.29
OEM 331980

86510-Oil-seal
# 8

P/N 86510 Oil seal $5.29
OEM 324639

82030-O-Ring OEM 305242
# 9

P/N 82030 O-ring (5 units) $4.29
OEM 305242


# 10

P/N 32692 Gasket
OEM 324637
22420 Screw set
# 11

P/N 22420 Screw and gasket set $4.29
OEM 307551

21731 Draining screw washer
# 12

P/N 21731 Drain screw and washer $5.29
OEM 318544

31170 gasket for housing drain screw
# 13

P/N 31170 Gasket (5 units) $4.29
OEM 307552


# 14

P/N 12761 Anode $14.29
OEM 432397


# 15

P/N 22351 screw $4.29
OEM 328725

82270 o-ring
# 16

# 82270 O-ring (5 units) $4.29
OEM # 322494

22395 Screw
# 17

P/N 22395 Screw (2 units) $4.29
OEM 328744

22142 cotter pin
# 18

P/N 22142 Cotter pin (5 units) $4.29
OEM 306394

86014-lower-unit-oil-seal
# 19

P/N 86014 Oil seal $13.29
OEM 336493
