Johnson outboard parts 9.9 and 15 horsepower years 1974 thru 2006

  • T.C.Electronics / Marine technical support number is ( 416 ) 751-7326
  • Note at this time we do not have prop shaft, drive shaft or gears for this unit
  • We have only numbered parts in stock for 9.9 or 15 hp. units

Evinrude/Johnson years 1974 thru 1992 (lower unit) water pump rebuild instructions

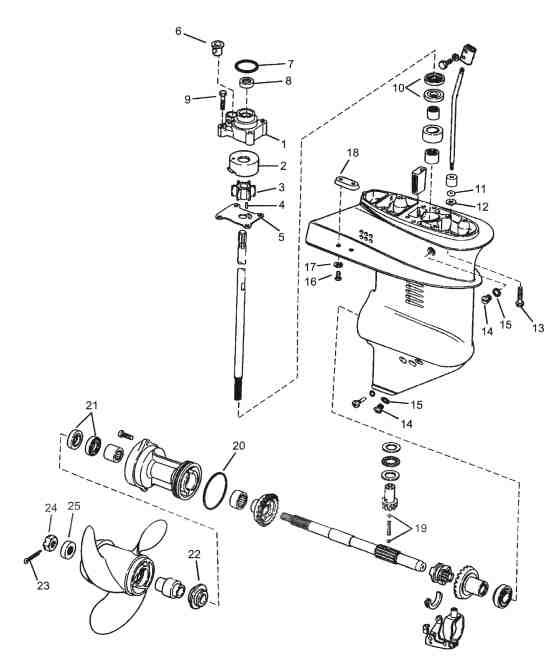

W Johnson 9.9 15-hp. 1974 thru 2006 2.jpg
Johnson outboard 9.9 and 15 horsepower years 1974 thru 2006

Parts photo
#
Evinrude / Johnson part description
87602-Evinrude-9.9-15hp.-1974-up
# A

# 87602 Evinrude / Johnson outboard
seal kit 9.9 or 15 hp.
1974 up
OEM # 396350 $28.29

12050-Johnson-Evinrude-outboard-water-pump-kit
# B

# 12050 Water pump kit includes housing

 $39.29

OEM: 394711

12460 Water pump housing
# 1

# 12460 Water pump housing $20.29 OEM # 435390

12813 Pump cup
# 2

# 12813 Pump cup $11.29
OEM # 324097

Click here for Impellers
89770 Impeller
# 3

# 89770 Impeller $11.29
OEM # 386084

89594 Key
# 4

# 89594 Key $4.29
OEM # 300611

12610 Wear plate
# 5

# 12610 Wear plate $4.29
OEM # 318995

86492 Grommet for 12470 pump housing
# 6

# 86492 Grommet $4.29
OEM # 302497

83200 O ring
# 7

# 83200 O-ring (5 units) $4.29
OEM # 319085

86120-Johnson-lower-gearcase-oil-seal
# 8B

# 86120 Oil seal $4.29
OEM # 318972

screw
# 9

# 22360 Screw  $4.29
OEM # 305325

oil seal
# 10

# 86170 Oil seal $10.29
OEM # 321480

45230 o ring for 12740 pump housing
# 11

# 45230 O-ring (5 units) $4.29
OEM # 301877

34410 Gasket
# 12

# 34410 Washer 5 units $4.29
OEM # 321738

22321 Screw
# 13

# 22321 Screw  $4.29
OEM # 324334

22420 Drain screw and washer set
# 14

# 22420 Screw and gasket set $4.29
OEM # 307551

31170 gasket for housing drain screw
# 15

# 31170 Gasket $4.29
OEM # 321480

22370 Screw
# 16

# 22370 Screw  $4.29
OEM # 306643

21491 Lockwasher
# 17

# 21491 Lockwasher 2 units $4.29
OEM # 304454

# 18

# 12730 Anode $10.29
OEM # 173029

22490 Detente ball
# 19

#22490 Detent ball $4.29
OEM # 316506

82280 O ring
# 20

# 82280 O-ring (5 units) $4.89
OEM # 308627

OIL SEAL
# 21

# 86180 Oil seal $8.89
OEM # 321481

22242 Prop thrust washer
# 22

# 22242 Thrust washer $11.89
OEM # 334590

22140 Cotter pin
# 23

# 22140 Cotter pin 10 units $9.89
OEM # 328522

NUT
# 24

# 22160 Nut $4.89
OEM # 318971

22255 Prop spacer
# 25

# 22255 Prop spacer $4.89
OEM # 323942
