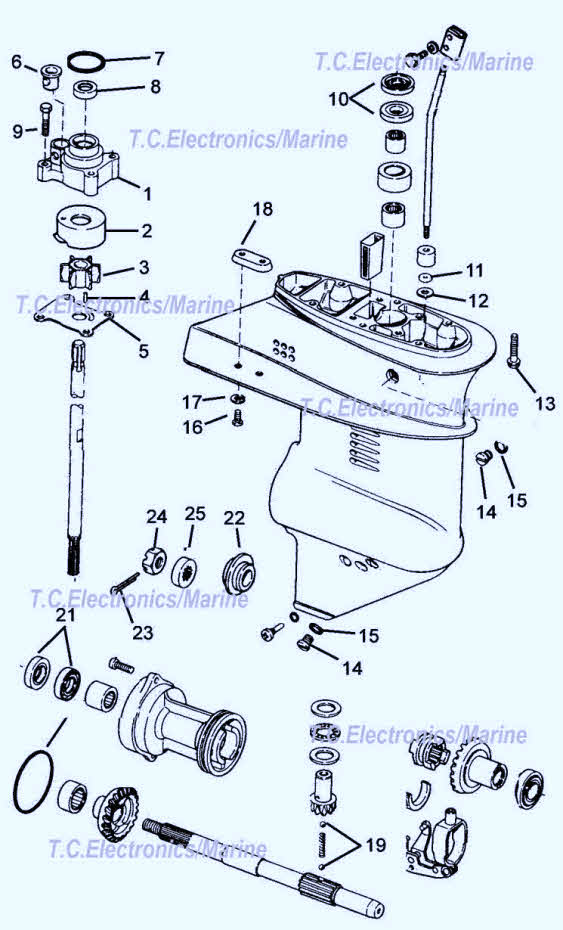

Johnson parts drawing 9.9 to 15 hp. 1974 and up

Johnson/Evinrude outboard 17-25 parts drawing
for 9.9 and 15 hp. Years 1974 to 2006

  • Note at this time we do not have prop shaft, drive shaft or gears for this unit
  • We have only numbered parts in stock for 9.9 or 15 hp.
  • Parts 15 to 25

Evinrude/Johnson years 1974 to 1992 (lower unit)
water pump rebuild instructions

Johnson 9.9 15 hp.

Johnson 9.9 15 hp.

87602 Evinrude 9.9 -15hp 1974 up
87602 Evinrude 9.9 -15hp 1974 up

12050 outboard water pump kit
12050 outboard water pump kit

22370 Screw
22370 Screw
Item 16

P/N 22370 Screw OEM 306643 $4.29

21491 Lockwasher
21491 Lockwasher
Item 17

P/N 21491 Lockwasher 2 units OEM 304454 $4.29

12730 Anode
12730 Anode
Item 18

P/N 12730 Anode OEM 173029 $10.29

22490 Detente ball
22490 Detente ball
Item 19

P/N 22490 Detent ball OEM 316506 $4.29

82280 O ring
82280 O ring
Item 20

P/N 82280 O-rings, 5 units. OEM 308627 $4.89

86180 oil seal
86180 oil seal
Item 21

P/N 86180 Oil seal OEM 321481 $8.29

22242 thrust washer
22242 thrust washer
Item 22

P/N 22242 Thrust washer OEM 334590 $11.89

22140 Cotter pin
22140 Cotter pin
Item 23

P/N 22140 Cotter pin 10 units OEM 328522 $9.89

22160

22160

Item 24

P/N 22160 Nut OEM 318971 $4.89

22255 Prop spacer
22255 Prop spacer
Item 25

P/N 22255 Propeller spacer OEM 323942 $4.89
