T.C. Electronics/Marine Home Page

Mercruiser parts I need help page

I need help page to identify components with detailed drawings and photos

  • Mercruiser, MR, Alpha one and Generation 2 upper-lower gearcase drawings with photos
  • R, MR, Alpha 1 and Alpha One generation 2 trim cylinder with hydraulic hoses
  • Transom plate, shift cables and gimbal housing
  • R, MR, Alpha One and Generation 2 bell housing
  • Bravo upper-lower gearcase and bell housing
  • Transom bellow kits with gimbal bearing
  • Mercruiser engine parts including engine rebuild kits and manifold gaskets

Click picture for Mercruiser parts exploded view drawing

39018 Mercruiser 5.7 liter engine kit 1991 to 1997

39018 Mercruiser 5.7 liter engine parts kit 1991 to 1997

Mercruiser engine parts for:

  • Ford 302 CID (5 liter) engine
  • GM 153 CID (2.5 liter), 181 CID (3 liter), 160 and 165 horsepower 305/350 CID (5.0 / 5.7 liter), 454 CID (7.4 liter) engines
  • GM 250 CID (4.0 liter 160 and 165 horsepower
  • Exploded view outdrive drawings
  • Chevy 262 CID engine 175, 185 and 205 horsepower engines
  • Mercruiser engine 224 CID (3.7 liter) engine all models 1983 to 1989 except (1983 and 1984 model 470) and 224 CID (3.7 liter) engine models 470 1976 to 1984 and 485 1980 to 1982
  • Manifold gaskets for above

  • Complete GLM Marine head gaskets, manifold gaskets, oil pan gaskets and engine parts for gasket kits with crankshaft rear main seals for all GM, Chevy, Ford and Mercruiser engines
  • Ignition coils, distributor caps and electronic conversion kits
  • Rotors, points, condensers and tune up kits for 4 cylinder, 6 cylinder and V8 motors

Engine Components
Engine Components
Mercruiser MC-1-R parts drawing

Mercruiser MC-1-R parts drawing

Mercruiser lower unit components diagram and photos

  • Years 1972 to 1983 illustration for troubleshooting your stern drive.
  • GLM products are completely compatible and interchangeable with Mercruiser components.
  • GLM has committed to producing high quality and cost effective aftermarket Mercruiser parts for the past two decades

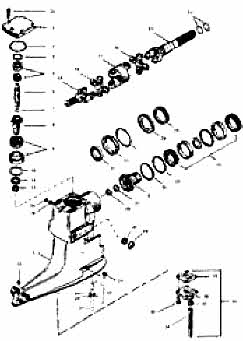

MC 1 component breakdown

MC 1 component breakdown

Years 1972 - 1983 upper gearcase diagram with over 70 photos.
  • Great for the boating enthusiasts performing their own outdrive work.
  • GLM aftermarket upper gearcase outdrive parts drawing including:
  • Gear sets, seals, shaft, bearings and o rings

Alpha One outdrive upper

Alpha One outdrive upper

  • Alpha One 1984 to 1990 outdrive upper gearcase components diagram with over 70 photos.
  • Great for the boating enthusiasts performing their own outdrive work.

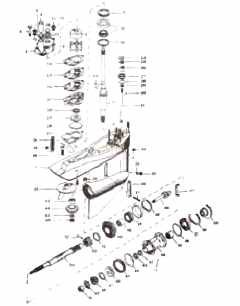

drawing

drawing

  • Alpha 1 outdrive lower gear-case and photos for years 1984 to 1990
  • All GLM products are brand new completely compatible and interchangeable with Mercruiser Alpha One parts.
  • GLM has committed to producing high quality and cost effective aftermarket outdrive parts for the past two decades

Mercruiser Alpha 1 Gen. 2 upper gearcase parts drawing

Mercruiser Alpha 1 Gen. 2 upper gearcase parts drawing

Mercruiser outdrive parts for:

  • Alpha 1 Generation 2 years 1991 and up upper gearcase and photos.
  • GLM products are brand new completely compatible and interchangeable with Mercruiser Alpha 1 Generation 2 parts 1991 and up with Mercruiser serial number OD469859 and up.
  • GLM has committed to producing high quality and cost effective aftermarket Mercruiser sterndrive parts for the past two decades

Alpha one generation II lower parts drawing

Alpha one generation II lower parts drawing

Alpha One generation 2 lower gearcase and photos years 1991 and up

bell housing tech

bell housing tech

Bell housing parts diagram.
  • Bell housing exhaust / u-joint bellow
  • Stern drive bushings, shift arms, gaskets, oil seals and clamps Sterndrive tech support video links
  • Outdrive gasket and o ring kit
  • Water pump hoses / clamps
  • Mercruiser 1 outdrive (MC-1), R-Type, and Alpha One stern drive transom service kits

Alpha 1 bell housing component.

Alpha 1 Gen 2 bell housing components.

Transom plate

Transom plate

Transom plate, cable charts.

Alpha 1 transom plate and shift cables
  • Outdrive shift cable assembly kit for all Mercruiser MC-1/R/MR/Alpha 1 and Bravo models
  • Transom plate parts include motor mounts and bolts
  • Guide, wrapping, tube, washers, set screws and nuts
  • See our shift cable kit page for tips on how to adjust and install the cable

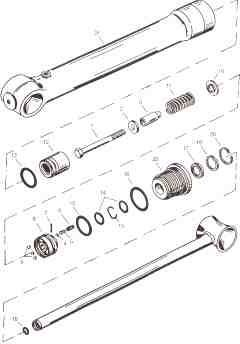

power trim cylinder

power trim cylinder

  • Alpha One power trim cylinder. Alpha One hydraulic power trim, tilt cylinders illustrated photos.
  • Tilt cylinder photos identified with matching GLM order numbers.

hoses

hoses

  • Trim cylinder parts compatible with the Mercruiser 1 for years 1970 to 1980
  • Models numbers 120, 140, 470, 165 and V8 models (Mercruiser serial number 2763442 to 6225576)
  • Cylinders manufactured by GLM Marine - include a 2 year warranty
  • Trim hoses are manufactured by Sierra Marine
  • Please note the 1981 and up models use different lines
  • Connector junction housing also available here

gimbal housing

gimbal housing

R, MR and Alpha 1 gimbal housing parts photo.
  • Oil seals, tolerance rings and gimbal bearings
  • Clamps, bellow, gaskets and connector
  • Mercruiser 1, MR, and Alpha One transom seal
  • Mercruiser bell housing and outdrive drawings click on link

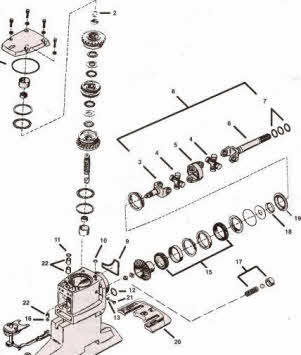

Bravo upper

Bravo upper

Bravo upper gearcase
  • Lower unit parts
  • Bravo 1 and 2 outdrive parts with drawing
  • Bearings, o rings, gaskets and oil seals

Lower gearcase
  • Lower unit parts
  • Bravo 1 and 2 outdrive parts with drawing
  • Bearings, o rings, gaskets, tools and oil seals

Bravo bell housing

manifold drawing

Manifolds

Manifold components, end caps, drain plugs and exhaust elbows. Use for Ford or Chevy marine engines. GLM Marine aftermarket units are made by " Lost Foam " technology for precise specification and casting quality. They have hot dipped galvanized coating black painted for corrosion resistance.
  • GLM fully tuned design to reduce back pressure and enhance flow to add increase engine horse power.
  • Fully tuned design allows manifold to add 30 - 40% water cooling area for longer life.
  • In the 4" elbow, there are two extra exits at each side to increase water flushing to avoid engine over heating.
  • In V8 GM small block, fully tuned manifold design will guide exhaust gases directly to elbow without turbulence and back pressure. In the meantime, additional 40% water cooling area will decrease the entire body temperature significantly.
  • In V8 GM big block manifold there is an extra 30% water cooling area that will help reduce temperature in port exit area for longer gasket life. The tuned design will reduce turbulence and enhance exhaust flow for higher and maximum engine power.

90190 Mercruiser tool bearing carrier retainer wrench

90190 Mercruiser tool bearing carrier retainer wrench

Over 25 Mercruiser repair tools you may require click on tools

P/N 90190 Bearing carrier retainer wrench tool OEM number 91-61069T $97.95

P/N 90100 Bearing retainer wrench tool for Alpha One, Bravo, R, MR outdrive Mercruiser OEM number 91-17256 $75.95

90100 Mercruiser bearing retainer wrench

90100 Mercruiser bearing retainer wrench

Need Tech support

Technical support is available from Wayne our tech service rep in person Toronto, Canada location
Search on Goggle for YouTube videos by Wayne Coll or T.C. Electronics/Marine
there is about 72 boat repair video in total as of 2019 there is no charge to view

Example of videos on YouTube
  • Mercruiser outdrive shift cable and bellows repairs 593,228 views
  • Water pump removal and repair video 320,214 views
  • How do I remove my Alpha One gen 2 lower unit 76,350 views
  • 65 repair video on YouTube for Mercury Marine outboard or Mercruiser outdrive parts
  • Need help to identify your Mercruiser outdrive not sure what outdrive unit you require contact us for link to page or videos
