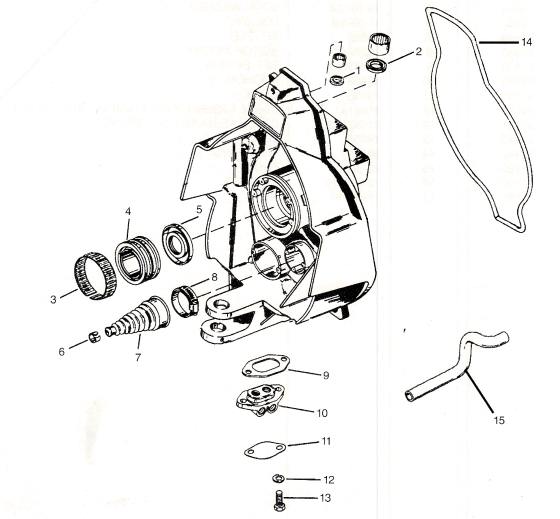

Mercruiser parts drawing *Gimbal housing

Sterndrive oil seal - Bell housing gimbal bearing parts

  • Oil seals, tolerance rings and gimbal bearings
  • Clamps, bellow, gaskets and connector
  • Mercruiser 1, MR, and Alpha One transom seal
  • Mercruiser parts for bell housing and outdrive drawings click on link

 gimbal housing

gimbal housing

85420

85420

1
P/N 85420
Oil seal OEM 26-54925 $11.95

85440 oil seal

85440 oil seal

2
P/N 85440
Oil seal OEM 26-32911 $9.95



3
P/N 21851
Tolerance ring OEM 61075

21905 Mercruiser Bearing 30-862540A3

21905 Mercruiser Bearing 30-862540A3

4
P/N 21905
Gimbal bearing with tolerance ring OEM 30-60794A4 $53.95

85910

85910

5
P/N 85910
Gimbal bearing oil seal OEM 26-88416 $14.95

21790 cable bellow clamp

21790 cable bellow clamp

6
P/N 21790
Clamp OEM 54-38863 $4.09



7
P/N 89080
Bellow OEM 74639A2 $13.09

21791 clamp

21791 clamp

8
P/N 21791
Clamp OEM 54-31766 $4.09

32500 gaskets

32500 gaskets

9
P/N 32500
Gasket *5 units OEM 27-98823-1 $9.09

21970 trim connector kit

21970 trim connector kit

10
P/N 21970
Connector with gaskets and aftermarket parts see picture OEM 98825A4 $59.95



11
P/N 32160
Gasket OEM 27-99506-1 $4.09


12
P/N 05009
Lock=washer *5 units OEM 13-78968 $4.09

22440 bolt

22440 bolt

13
P/N 22440
Screw OEM 10-28636 $4.09

86711 transom seal

86711 transom seal

14A
P/N 86711
Transom seal Alpha one generation II all Bravo & Blackhawks OEM 43713 $6.95

86712

86712

14B
P/N 86712
Transom seal Mercruiser 1 / MR / Alpha 1 #65533A1 $6.95

47130 water hose

47130 water hose

15
P/N 47130
Water hose all Bravo & Blackhawk OEM 32-43437 $24.09

21950

21950

P/N 21950 Bellows kit 1973 to 1989 OEM 30-803097T1 $145.95

16005 Plug kit

16005 Plug kit

P/N 16005 Plug kit OEM 22-88847A1 $17.95
