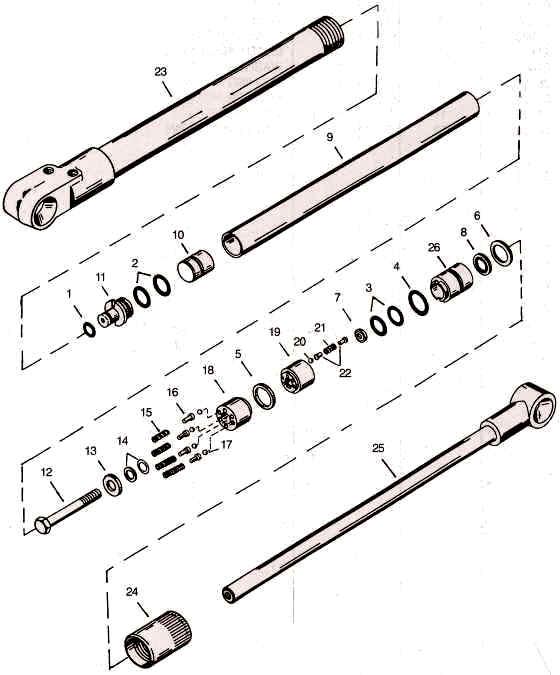

Aftermarket Mercruiser repair kit parts layout 120 to 260 trim cylinders
  • Power trim cylinder 120-260 models
  • Overhaul kit part as marked
  • O-ring kit part as marked
  • Mercruiser parts layout for boating enthusiasts and auto mechanics performing work on hydraulic trim, tilt cylinders will find this layout valuable
  • Exploded drawing that show internal parts and their relationship with hydraulic power trim or tilt cylinders
  • Trim cylinders and repair parts

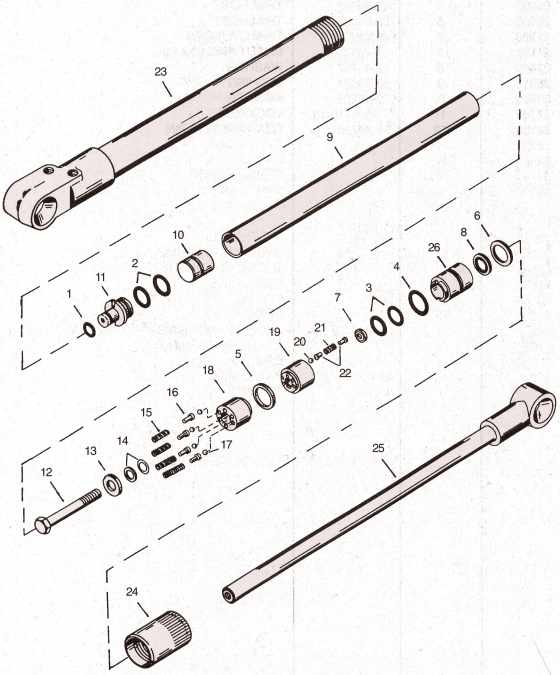

Mercruiser Parts Layout 120 - 260 Trim Cylinders
Click Here for Mercruiser Trim Cylinder Layout 120-260


Ref.#
Item description
Add to cart
87410 Aftermarket Mercruiser parts o-rings kit
87410 Aftermarket Mercruiser parts o-rings kit
1- 9

# 87410

  1. # 81109 O-ring
  2. # 82109 O-ring
  3. # 81169 O-ring
  4. # 82129 O-ring
  5. # 41170 Quad ring
  6. # 07400 Washer
  7. # 08741 Sealing
  8. # 09742 Rod scraper
  9. # 87411 Inner tube


P.T. O-Ring kit $16.29

Tube not included in 87400
87410 Aftermarket Mercruiser parts o-rings kit
Aftermarket Mercruiser parts o-rings kit
1- 9

# 87400  # 9 Not included in this kit

  1. # 81109 O-ring
  2. # 82109 O-ring
  3. # 81169 O-ring
  4. # 82129 O-ring
  5. # 41170 Quad ring
  6. # 07400 Washer
  7. # 08741 Sealing
  8. # 09742 Rod scraper


P.T. O-Ring kit $16.09


10

# 02191 Floating Piston



11

# 02192 Tube guide


87412 mercruiser parts overhaul kit
1-9
12
to
22

# 87412

Included in # 87410 Items 1 to 9

  1. # 02193 Bolt
  2. # 02194 Plain washer
  3. # 02195 Shim washer
  4. # 02196 Spring
  5. # 02197 Guide
  6. # 02198 Steel ball
  7. # 02199 Shock piston
  8. # 02190 Shock piston
  9. # 02189 Steel ball
  10. # 02188 Spring
  11. # 02187 Guide


P.T. Overhaul kit $130.89


23
# 21931 Cylinder housing


24
# 21932 End cap

21981 Pivot end aftermarket parts
21981 Pivot end
25
# 21981 Pivot end

$16.89

21940 cylinder bearing
21940 cylinder bearing
26
# 21940 Bearing

$19.89

21980 aftermarket replacement cylinder Mercruiser outdrives
21980 aftermarket replacement cylinder Mercruiser outdrives
A
# 21980 Trim cylinder
OEM# 45706A14

$299.09
