Mercruiser Trim Hoses Trim Ram Bushing Pins

GLM aftermarket trim hoses and power trim ram bushing pins for trim cylinder 120, 140, 160, 165, 888, 898, 228, 225-S, 233, 250, 260, 470 and 485 stern drive units trim cylinders

  • Aftermarket Mercruiser parts for 120 to 485 power trim, tilt cylinder hoses with illustrated photos
  • Mercruiser parts exploded drawing
  • Exploded drawings that show internal parts and their relationship with hydraulic power trim or tilt cylinders listed on index on left

Tech support Exploded view drawings

Photo and index page

Search by part number or description here

This site  The Web

26220 power trim hose
26220 power trim hose

Tubing OEM 32-58432A2
P/N 26220 $16.29

# 26230 brass hydraulic fitting
# 26230 brass hydraulic fitting
Brass Hydraulic Nut

OEM 22-49718

For use with 120 - 485 Mercruiser cylinders

P/N 26230 $7.89 *2 units


Trim Hose
OEM 3259841

P/N 26070 $45.89
Call for availability


Trim Hose
OEM 3259842

P/N 26080 $41.89
Call for availability

26100 Power
26100 Power
Trim Hose
OEM 32-86036
P/N 26100 29.89

21980 Aftermarket replacement cylinder for Mercruiser outdrives
21980 Aftermarket replacement cylinder for Mercruiser outdrives

Trim Cylinder

OEM 45706A14

P/N 21980 $299.09

21130 Front anchor pin for small bushings
21130 Front anchor pin for small bushings

Front Anchor Pin
OEM 17-45735
For power trim rams
Fits older Mercruisers with small bushings
3/8 - 24 threads 10 - 11/32"
P/N 21130 $25.89

21100 Rear anchor pin
21100 Rear anchor pin
Rear Anchor Pin
OEM # 17-45738
For power trim rams
Fits older Mercruisers with small bushings
3/8 - 24 threads 7-1/2"
P/N 21100 $22.89

21390 P.T.
21390 P.T.

Power trim ram bushing kit
OEM# N/A
For MC1 120-260
For rear anchor pin on early Mercruiser with small rubber bushings
Kit contains
1-21100 Pin
4-26310 Bushings
2-21640 Washers
2-21650 Washers
2-21160 Nuts
P/N 21390 $54.09

21310 P.T. Ram
21310 P.T. Ram
Power trim ram bushing kit
OEM# N/A
For MC1 120-260
For front anchor pin on early Mercruiser with small rubber bushings
Kit contains
1-21130 Pin
4-26310 Bushings
2-21640 Washers
2-21650 Washers
2-21160 Nuts
P/N 21310 $39.09

 21640 stainless steel 5/8 trim washer
21640 stainless steel 5/8 trim washer
Stainless Steel Washers
OEM 12-45737
5/8-ID 1 - 1/2 OD
P/N 21640 $4.89

21650 stainless steel 3/8 trim washer
21650 stainless steel 3/8 trim washer
Stainless Steel Washers
OEM # 12-46765
3/8 - ID 1 - 1/2 OD
P/N 21650 $4.89

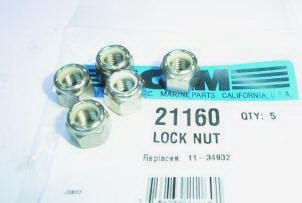

21160 Stainless steel 3/8" 24N.F. trim lock nuts
21160 Stainless steel 3/8" 24N.F. trim lock nuts
Lock Nuts
OEM 11-13437-1, 1134932
3/8 - 24 For 120/ 485 trim cylinders
P/N 21160 $12.09 *5 units

26310 Power trim ram bushing
26310 Power trim ram bushing
Power Trim Ram Bushings
OEM 23-89574
For 120 / 485 Mercruiser trim cylinders
P/N 26310 $44.09 *8 units
