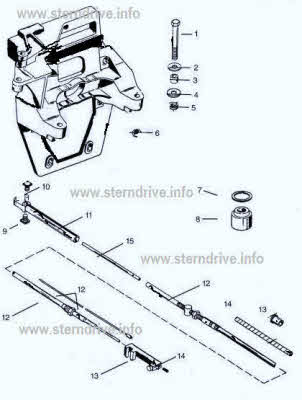

Mercruiser shift cable parts drawing *Transom plate

GLM Mercruiser Lower Unit Shift Cable - Sterndrive Transom Parts

  • Outdrive shift cable assembly kit for all Mercruiser MC-1/R/MR/Alpha 1 and Bravo models
  • Transom plate parts include motor mounts and bolts
  • Guide, wrapping, tube, washers, set screws and nuts
  • See our shift cable kit page for tips on how to adjust and install the cable

Mercruiser Tech support Exploded view drawings

Photo and index page

Search by part number or description here

This site  The Web

Transom drawings
Transom drawings

21450
21450

P/N 21450 Shift cable kit OEM # 865436A03 $69.00

New style cable with larger core wire for Mercruiser / Alpha 1 models.

This cable installs from inside (aft end) of the bell housing. Click on picture for more information.

19310 motor mount bolt
19310 motor mount bolt

P/N 19310 Motor mount bolt OEM # 10-97934 $4.00

19320 washer
19320 washer

2

P/N 19320 Washer OEM # 12-35777 $2.00

19340 spacer
19340 spacer

3

P/N 19340 Spacer OEM # 23-99299 $4.00

30020 fibre washer
30020 fibre washer

4

P/N 30020 Fibre washer (5 units) OEM # 12-32834 $4.00

19330 lockwasher
19330 lockwasher

5

P/N 19330 Lock washer (5 units) OEM # 13-33734 $4.00

19350 lock nut OEM 11-863332
19350 lock nut OEM 11-863332

6

P/N 19350 Nylon locknut OEM #11-863332 $4.00

21050 spacer
21050 spacer

7

P/N 21050 Spacer OEM #99322 $4.00

21040 rear motor mount
21040 rear motor mount

8

P/N 21040 Rear motor mount kit OEM # 99297A1 $19.00

Includes 2 rear mounts and 2 spacers

21433 set screw
21433 set screw

9

P/N 21433 Set screw (10 units) OEM # 10-20518 $7.00

21432 anchor
21432 anchor

10

P/N 21432 Shift cable anchor OEM # 43436 $6.00

21430 guide tube
21430 guide tube

11

P/N 21430 Shift cable guide set OEM # 43433 $11.00

Includes guide, anchor and 2 set screws

32600 washers 12-815472
32600 washers 12-815472

16

P/N 32600 Washers (5 units) OEM # 12-815472 $4.00

21162 nut
21162 nut

17

P/N 21162 Nut (1 unit) OEM # 11-49910 $4.00
