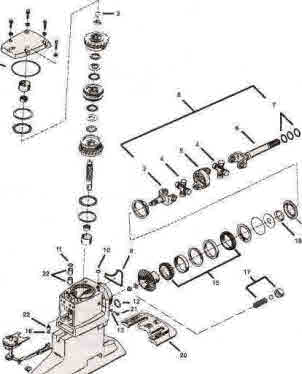

Upper Gear Case
Upper Gear Case



Item 1

P/N 81570 O ring



Item 2

P/N 12920 Keeper



Item 3

P/N 28340 Yoke shaft

28030 Heavy Duty
28030 Heavy Duty

Item 4

P/N 28030 U-Joints

28100 Socket
28100 Socket

Item 5

P/N 28100 Socket

28315
28315

Item 6

P/N 28315 Yoke drive shaft



Item 7

P/N 81190 O-ring

28060 U Joint Assembly
28060 U Joint Assembly

Item 8

P/N 28060 Universal joint assembly



Item 9

P/N 86310 Seal



Item 10

P/N 80430 O-ring

80180 O-ring
80180 O-ring

Item 11

P/N 80180 O-ring



Item 12

P/N 81270 O-ring



Item 13

P/N 31170 Gasket



Item 14

P/N 86720 Seal



Item 15

P/N 21525 Tapered roller bearing



Item 16

P/N 85820 Oil seal

12930 Spring kit
12930 Spring kit

Item 17

P/N 12930 Spring kit



Item 18

P/N 86730 Oil seal

28372 SEAL CARRIER
28372 SEAL CARRIER

Item 19

P/N 28372 Seal carrier assy.



Item 20

P/N 12712 Anode

21731 drain screw magnetic
21731 drain screw magnetic

Item 21

P/N 21731 Drain screw set



Item 22

P/N 87563 Shift shaft bushing
