Mercruiser - Hydraulic Trim Cylinder & Hoses

Trim Rams and Hydraulic Connecting Lines for the Mercruiser Stern Drive

  • Parts compatible with the MC-1 (years 1970 - 1980)
  • Models 120, 140, 470, 165 and V8 models (serial numbers 2763442 - 6225576)
  • Cylinders manufactured by GLM Marine - include a 2 year warranty
  • Trim hoses are manufactured by Sierra Marine
  • Please note the Mercruiser 1981 and up models use different lines
  • Connector junction housing also available here

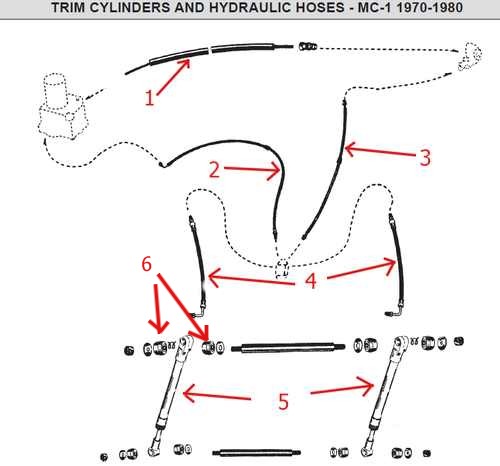

Mercruiser Cylinders Trim Breakdown

Mercruiser Cylinders Trim Breakdown



1

18-2126
Tubing - Replaces 32-58432A2 $36.15

18-2108

2

18-2108
44 inch Trim hose - Replaces 32-59841 $79.15

18-2109

18-2109

3

18-2109
Hose - Replaces 32-59842 $69.15

18-2103 Hose

18-2103 Hose

4

18-2103
Straight line - Replaces 32-86036 $42.15



5

21980
Hydraulic trim cylinder assembly (used for port and starboard) - Replaces 45706A14 $299.15 each

26310 Bushing 23-89574

26310 Bushing 23-89574

6A

26310
Rubber bushing. Price is per single unit - (note: 4 are required per ram) Replaces 23-89574 $6.15

21390

21390

21310

21310

6B

21390
Bushing kit with pin (for rear). Replaces N/A $62.15

6C

21310
Bushing kit with pin (for front). Replaces N/A $44.15

87410 Seals Kit 25-60342A2

87410 Seals Kit 25-60342A2

8

7410
Cylinder sealing kit. Includes o-rings and replacement inner tube. For 1970 - 1982 models, serial numbers 2763442 - 6225576. Replaces 25-60342A2 $39.15
