Mercruiser lower unit outdrive parts drawing #58 to 72

Lower unit stern drive parts photo numbers 58 to 72

  • Lower Gearcase Schematic / Breakdown / Drawing
  • Bearings, drive shaft, water pump parts and oil seals
  • Tech support exploded view drawings search by part number or description here
  • GLM parts include photos and Mercruiser / Mercury OEM numbers

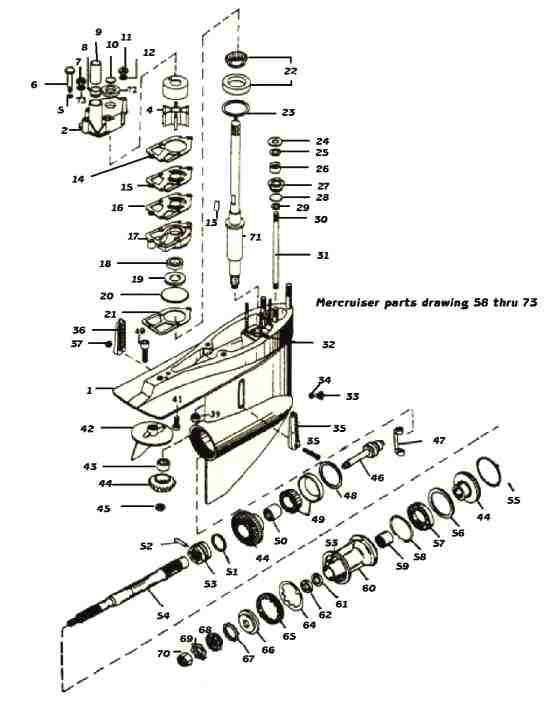

Mercruiser drawing sterndrive parts 58-72

Mercruiser drawing sterndrive parts 58-72

87510 Seal kit OEM 26-33144A2

87510 Seal kit OEM 26-33144A2

A
# 87510 Seal and gasket kit, years 1970-1990. Replaces 26-33144A2. $49.89

12120 1984-1990 kit

12120 1984-1990 kit

B
P/N 12120
GLM Marine aftermarket lower unit water pump kit, years 1984-1990, S/N 6854393-OD469858. Note - for 1970-1983 models, use kit P/N 12110 $48.89

12120 1984-1990 kit

12110

C
P/N 12110
Lower unit water pump kit, years 1970-1983, S/N 2763442-6854392. Note - for 1984-1990 Alpha One models, use kit P/N 12120 $51.89

83440 o-ring

83440 o-ring

58
P/N 83445
O ring for bearing carrier (1 unit) $9.89. Also included in GLM Marine aftermarket seal kit part number 87510

11410 bearings

11410 bearings

59
P/N 11410
roller bearing OEM 31-30956 $19.99

11405 alpha one

11405 alpha one

60
P/N 11405
Bearing carrier OEM 818763A10 $157.95

85130 oil seal inside

85130 oil seal inside

61
P/N 85130
Oil seal (inside seal) $10.89. Also included in GLM Marine aftermarket seal kit number 87510

85700 outside

85700 outside

62
P/N 85700
Oil seal (outside) $15.89. Replaces 26-12224. Also included in GLM Marine part number 87510

11080 key

11080 key

63
P/N 11080
Bearing carrier key (5 units) OEM 28-30281 $4.95

11380 Tab Washer

11380 Tab Washer

64
P/N 11380
Tab washer OEM 14-79447 $8.99

21120 Cover nut

21120 Cover nut

65
P/N 21120
Cover nut OEM 79448 $21.99

21301 thrust hub

21301 thrust hub

66
P/N
21301 Thrust hub OEM 12-835467-1 $29.89

21760 lockwasher

21760 lockwasher

67
P/N 21760
Lock washer OEM 13-42351-1 $4.95

21360 Tab washer receiver

21360 Tab washer receiver

68
P/N 21360
Washer receiver OEM 12-31211A3 $7.99

21210 tab washer

21210 tab washer

69
P/N 21210
Tab washer OEM 14-31210 $4.95

21230 prop nuts

21230 prop nuts

70
P/N 21230
Lock nut *1 unit OEM 11-827614 $9.99

21305 Prop service kit Mercruiser outdrive

21305 Prop service kit Mercruiser outdrive

70A
P/N 21305 Prop Nut Kit OEM N/A $24.99

11110 outdrive upper

11110 outdrive upper

71
P/N 11110
Drive shaft OEM 45-41939F1 $199.89

21330 slinger

21330 slinger

72
P/N 21330
Slinger *2 units OEM 25-30271 Included in water pump parts kit $4.95
