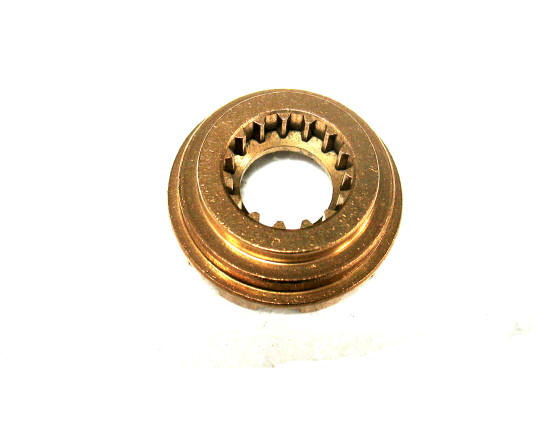

Mercruiser propeller shaft tab washer receiver part for lower unit outdrive.

  • GLM marine # 21360
  • OEM # 12-31211A2
  • Tab washer receiver used to hold propeller in place used with tab washer

#21360 Tab washer receiver $8.29
