Mercruiser parts *Tab washer

GLM keyed tab washer for stern drive lower gearcase

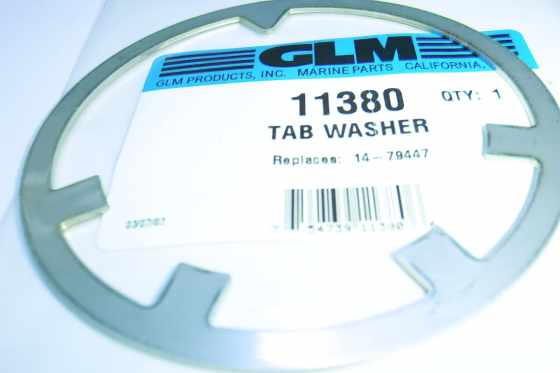

11380 Mercruiser tab washer

11380 Mercruiser tab washer

P/N 11380 GLM Marine aftermarket tab washer OEM 14-79447 $6.95

Customers who viewed this item all so
purchased one of the following:



Customers who ordered 21731 drain screw also purchased:

87500 GLM aftermarket Mercruiser upper gearcase seal kit

87500 GLM aftermarket Mercruiser upper gearcase seal kit

Seal kit 87500. All kits include o-rings, oil seals and gaskets in the upper housing. Remember to use a gasket sealing compound. Replaces OEM 26-32511A1, Sierra 18-2648.

M1 / R / MR / Alpha 1 (1964 - 1990) serial numbers 1684188 - OD469858
Includes:
P/N 80420 O-ring
P/N 25-32546
P/N 80190 O-ring
P/N 25-55801
P/N 81180 O-ring
P/N 25-25439
P/N 82380 O-ring 25-70937
P/N 85020/85060/85030 Oil seals OEM 26-32511/26-96503/26-823894
P/N 31150 Gasket 27-55810-1
P/N 85150 Grommet 26-36557

90190 Mercruiser tool bearing carrier retainer wrench

90190 Mercruiser tool bearing carrier retainer wrench

P/N 90190 Bearing carrier retainer wrench OEM 91-61069T $97.95

Bearing carrier wrench, bearing puller and pinion nut adapter

Shift shaft bushing, outdrive bearing race and seal drivers. Mercury outboard and Mercruiser stern drive prop wrench kit

Tools are compatible with Alpha 1 and generation 2, Bravo, MR, and Mercruiser outdrives

21120 Cover Nut Mercruiser Part 79448

21120 Cover Nut
Mercruiser Part 79448

P/N 21120 OEM 79448 $18.95

88010 Mercruiser outdrive water pump and seal kit

88010 Mercruiser outdrive water pump and seal kit

Lower unit water pump P/N 88010 and upper - lower gearcase seal kits $99.00

Compatible with models 1 and R (1970 - 1983)
Serial numbers 2663442 - 6225576

Includes:
P/N 87500 / 26-32511A1 Upper housing seal set
P/N 87510 / 26-33144A2 Lower seal set
P/N 89840 / 47-89984T4 Impeller
P/N 11070 / 28-56654 Key
P/N 12410 / 46-96148T1 Housing
P/N 12322 / 46-44292A3 Base
P/N 12820 / 23-29804T Guide tube
P/N 12810 / 48752 Cup
P/N 12510 / 32435 Wear plate
P/N 31010 / 27-85608-1 Gasket

51210 GM 120-140 hp manifold parts years 1982-1995

51210 GM 120-140 hp manifold parts years 1982-1995

P/N 51210 Unit OEM 806867A8 GM 120 / 140 hp. 4 Cylinder 153 / 181 CID years 1982 - 1995

Contains the following item if required:
P/N 51210 Exhaust manifold 806867A8
P/N 33570 Gasket 27-96429
P/N 30920 Gasket-End cap (5) 27- 807218
P/N 31520 Gasket-elbow or adaptor 27- 99777- 2
P/N 51020 End cap 805629A1
P/N 51030 End cap 73813A1
P/N 13980 Straight Fitting Water Drain Contents 22-862557
P/N 13992 Drain Plug Kit (5)22-806608A1
P/N 80140 O-Ring (5) 25-45253
P/N 22443 Screw-End Cap (8) 21-824941
P/N 32180 Gasket-Carburetor Base 27-807982
P/N 22444 Screw Edit 10-807212
P/N 22445 Screw (2) 10-66863-1
P/N 22484 Stud (2) 16-56826
P/N 21892 Plug-Exhaust Elbow 22-41622
P/N 21248 Flange Serrated Nut (5) 11-46335
P/N 22482 Stud-Carburetor (2) 16-70236
P/N 21664 Washer- Carburetor (5) 12-20084
P/N 19354 Lock Nut Carburetor (5) 11-25594

P/N 51210 Exhaust manifold OEM 806867A8 $287.89

11247 Teeth 20-24 ratio 2.4 or 1.94 years 1998-up

GLM Marine Products aftermarket gears for upper gearcase and lower units all models


Outdrive forward, pinion and reverse gears for all models including MC-1 / R / MR and Alpha One and Generation 2 compatible with 120/140 4 cylinder, inline 6 cylinder, V6 and 5.0-5.7 liter V8 motors.

Upper and lower unit gear sets with bearings and shims, ratios, years and serial numbers. See our application chart for lower and upper units for help with choosing the right one for your model Limited selection of used gears also available.
