Mercruiser propeller shaft thrust hub lockwasher

Outdrive Lower Unit propeller Lock Washer

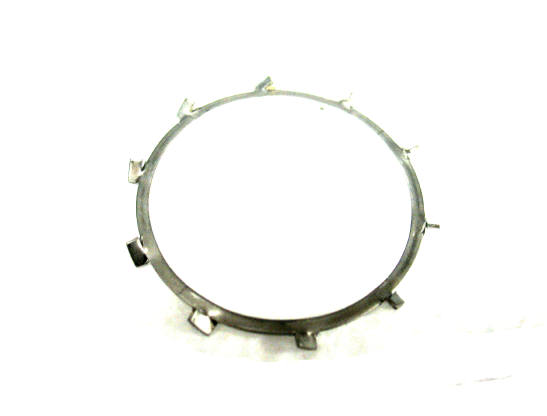

21760 Lock washer

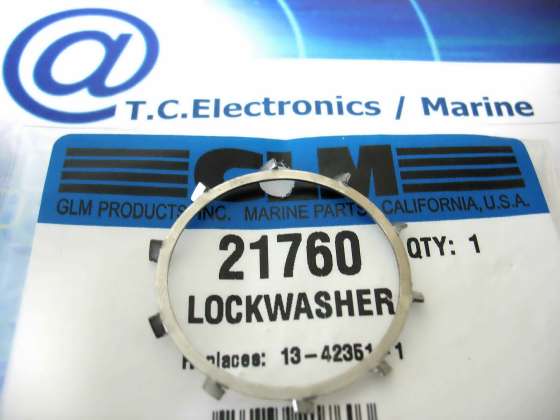

21760 Lock washer

P/N 21760 Propeller lock washer OEM 13-42351-1 $4.95

Customers also purchased:

12120 Impeller kit 1984-1990

12120 Impeller kit 1984-1990

P/N 12120 Water pump kit - years 1984 - 1990 Serial numbers 6854393 - OD469858 $35.95

Includes:
P/N 89840 / 47-89984T4 Impeller
P/N 12410 / 46-96148T1 Housing
P/N 12820 / 23-29804T Guide tube
P/N 12510 / 32435 Wear plate
P/N 12322 / 46-44292A3 Pump base
P/N 11070 / 28-56654 Key
P/N 12810 / 48752 Cup
P/N 31010 / 27-85608-1 Gasket

12110

12110

P/N 12110 Water pump kit for 1970 - 1983 Mercruiser models, serial numbers 2763442 - 6854392 $39.95 Mercruiser MC-1 / R years 1970 - 1983 Serial numbers 2763442 - 6854392 $39.95

Includes:
P/N 89840 / 47-89984T4 Impeller
P/N 12510 / 32435 Wear plate
P/N 12310 / 46-57234T1 Pump base
P/N 31010 / 27-85608-1 Gasket
P/N 11070 / 28-56654 Key
P/N 12410 / 46-96148T1 Pump housing
P/N 12820 / 23-29804T Guide tube
P/N 12810 / 48752 Cup

87510 gasket kit

87510 gasket kit

P/N 87510 Lower unit seal kit for 1967-1990 (s/n 2062141 - 0D469800) $38.95

Includes:
P/N 12830 Seal 25-39970
P/N 21330 Slinger 25-30271
P/N 81160 O-ring 25-30613
P/N 21010 bushing assembly 23-30617A2
P/N 85070 Oil seal 26-89238
P/N 81390 O-ring 25-90011
P/N 81180 O-ring 25-25439
P/N 31020 Gasket 25-858524
P/N 31050 Gasket 27-42631-1
P/N 31010 Gasket 27-85608-1
P/N 85040 Oil seal 26-16977
P/N 85700 Oil seal 26-12224
P/N 85581 Oil seal 26-816464
P/N 85140 Seal 26-45577-1

87511

87511

P/N 87511 Lower gearcase seal kit, replaces 26-816575A3 Alpha 1 Generation 2 (1991 and up) Serial numbers OD469859 - up. $35.95
