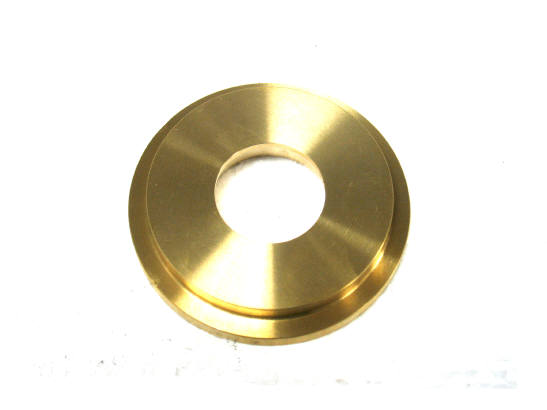

Mercruiser propeller thrust hub part for lower unit outdrive.

  • GLM marine # 21301
  • OEM # 12-835467-1
  • Thrust hub used to hold front of propeller in place

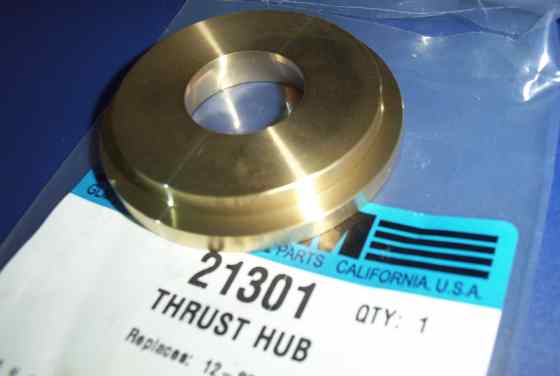

W 21301 Mercruiser thrust hub.jpg
# 21301 Mercruiser thrust hub

# 21301  $23.29
