Yamaha outboard parts *Exploded view lower unit drawings

Yamaha outboard water pump *Replacement *Impeller

GLM Marine aftermarket kits and lower unit impellers
2 to 275 hp. models

  • GLM Marine complete water pump kits include impeller, key, cup, gaskets and seals.
  • Housing is included unless otherwise specified.
  • Compatible for 9.9 hp. - 250 hp. models.
  • OEM model numbers, horsepower and year listed below.

Exploded view lower unit drawings

Search by part number or description here

This site  The Web

Notes on installation video:

Impeller should be greased and yes it should be larger than the cup it fit into. Drive shaft should be turned clockwise when installing impeller. Wheel bearing grease will hold key or pin in place. O-rings and gaskets should be coated with gasket compound. Oil seals should have loctite 680 or gasket compound on them before installing. See our installation video.

12087 Outboard with housing
12087 Outboard with housing

F-15 hp. 1998-2005
F-9.9 hp. 2005
T-9.9 hp. 2005
9.9 hp. 1996-2005
15 hp. 1996-2004

P/N 12087 Complete water pump repair kit OEM 63V-W0078-01 + 63V-44301-00-00 $67.00

Includes:
P/N 22502 Bold (4) OEM 97080-08045
P/N 12865 Damper, seal OEM 647-44366-00
P/N 12445 Pump housing OEM 63V-44301 -00-00
P/N 12809 Pump cup OEM 63V-44322-00
P/N 89619 Impeller OEM 63V-44352-01
P/N 89589 Key woodruff OEM 664-44338-00
P/N 12517 Wear plate OEM 682-44323-00
P/N 82250 O ring OEM 93210-44704-00

12066

F-15 hp. 1998 - 2005
F-9.9 hp. 2005
T-9.9 hp. 2005
9.9 hp. 1996 - 2005
15 hp. 1996 - 2004

P/N 12066 Repair kit OEM 63V-W0078-01 $27.00 Same as above unit less the housing

Includes:
P/N 22502 Bold (4) OEM 97080-08045
P/N 12865 Damper, seal OEM 647-44366-00
P/N 12809 Pump cup OEM 63V-44322-00
P/N 89619 Impeller OEM 63V-44352-01
P/N 89589 Key woodruff OEM 664-44338-00
P/N 12517 Wear plate OEM 682-44323-00
P/N 82250 O ring OEM 93210-44704-00

12278
12278

F-9.9 hp. 1986-1995
FT-9.9 hp. 1985-1990
T-9.9 hp. 1991-1996
15 hp. 1984-1995
9.9 hp. 1984-1995

P/N 12278 Repair kit parts OEM 682-W0078-A1 $33.00

Includes:
P/N 12877 Damper, water seal OEM 682-44365-00
P/N 22428 Bolt (4) OEM 97095-06040
P/N 12876 Pump cup OEM 682-44322-00
P/N 89880 Impeller OEM 682-44352-03
P/N 89587 Key, woodruff OEM 90280-03024
P/N 38107 Gasket, water pump OEM 682-44315-A0
P/N 12515 Wear plate OEM 682-44323-00
P/N 38107 Gasket, water pump OEM 682-44315-A0

12281
12281

F-9.9 hp. 1997 - 2003
T-9.9 hp. 1997 - 1999 and 2001 - 2003
F-9.9 hp. 2004
T-9.9 hp. 2004

P/N 12281 Impeller repair kit $29.00 OEM 682-W0078-A2, 682-W0078-A3

Includes:
P/N 12877 Damper, water seal OEM 682-44365-00
P/N 22428 Bolt (4) OEM 97095-06040
P/N 12448 Water pump housing OEM 682-44300-01-00
P/N 12876 Pump cup OEM 682-44322-00
P/N 89880 Impeller OEM 682-44352-03
P/N 89587 Key, woodruff OEM 90280-03024
P/N 38107 Gasket, water pump OEM 682-44315-A0
P/N 12515 Wear plate OEM 682-44323-00
P/N 38107 Gasket, water pump OEM 682-44315-A0

20 hp. years 1996-1997
25 hp. years 1988-1998, 2000 and 2003-2004

P/N 12267 Water pump with housing $77.00
OEM 6L2-W0078-00 + 6L2-44311-00-00

Includes:
P/N 22428 Bolt (4) OEM 97095-06040
P/N 12455 Water pump housing OEM 6L2-44311-00-00
P/N 84310 O-ring OEM 93210-45161
P/N 12866 Pump cup OEM 6L2-44322-00
P/N 89622 Impeller OEM 6L2-44352-00
P/N 89587 Key, woodruff OEM 90280-03024
P/N 12508 Wear plate OEM 6L2-44323-00
P/N 21490 Washer (4) OEM 92990-06600-00

12277
12277

20 hp. years 1996-1997
25 hp. years 1988-1998, 2000 and 2003-2004

P/N 12277 Water pump repair kit $27.00
OEM 6L2-W0078-00

12285
12285

25 hp. 1999,2001 and 2002
30 hp. 1997 - 1999 and 2001 - 2002

P/N 12285 repair kit $36.00
OEM 6J8-W0078-A2

Includes:
P/N 22508 Bolt with washer (2) OEM 90119-08M13-00
P/N 12864 Pump cup OEM 663-44352-00
P/N 89900 Impeller OEM 6H4-44352-02
P/N 89587 Key, woodruff OEM 90280-03024
P/N 38106 Gasket, water pump OEM 663-44315-A0
P/N 12526 Wear plate OEM 663-44323-00
P/N 38011 Gasket, wear plate OEM 663-443160-A0

25 hp. 1999, 2001 and 2002
30 hp. 1997 - 1999 and 2001 - 2002

P/N 12268 water pump kit with housing $86.00
OEM 6J8-W0078-A2 + 6J8-44311-00

Includes:
P/N 22508 Bolt with washer (2) OEM 90119-08M13-00
P/N 12864 Pump cup OEM 663-44352-00
P/N 89900 Impeller OEM 6H4-44352-02
P/N 89587 Key, woodruff OEM 90280-03024
P/N 38106 Gasket, water pump OEM 663-44315-A0
P/N 12526 Wear plate OEM 663-44323-00
P/N 38011 Gasket, wear plate OEM 663-443160-A0
P/N 12452 water pump housing OEM 6J8-44311-00-00

T-25 hp. 2001-2005
F-30 hp. 2001-2005
F 40 hp. 2000 and up

P/N 12266 water pump kit with housing $00.00
OEM 66T-W0078-00 + 66T-44311-00

Includes:
P/N 12874 Cover, pump housing OEM 63D-44312-00
P/N 12875 Damper, water seal OEM 663-44366-00
P/N 22429 Bolt w/washer (4) OEM 90119-08M15
P/N 12451 Water pump housing OEM 66T-44311-00
P/N 12873 Pump cup OEM 63D-44322-00
P/N 89900 Impeller OEM 6H4-44352-02
P/N 89599 Key, woodruff OEM 90280-03M03
P/N 12512 Wear plate OEM 66T-44323-00
P/N 38008 Gasket, water pump OEM 63D-44316-00

T-25 hp. 2001-2005
F-30 hp. 2001-2005
F 40 hp. 2000 and up

P/N 12272 kit with out the housing $00.00
OEM 66T-W0078-00

12284
12284

30 hp. 1987, 1989 - 1993 and 1996

P/N 12284 Repair kit $29.00

12058
12058

25 hp. 1984 - 1985
30 hp. 1984 - 1985

P/N 12058 Repair kit $45.00

12059
12059

C-25 hp. 1991 - 1997
30 hp. 1991 - 1992
CV-25 hp. 1990
30 hp. 1989 - 1990
25 hp. 1986 - 1987
30 hp. 1986

P/N 12059 repair parts $33.00

Includes:
P/N 12869 Damper, water seal OEM 626-44365-01
P/N 22507 Bolt (3) OEM 97080-06030
P/N 12076 Water pump housing OEM 689-44311-03
P/N 12868 Pump cup OEM 626-44365-01
P/N 89890 Impeller OEM 689-44352-00
P/N 89589 Key, woodruff OEM 664-44338-00
P/N 38109 Gasket pump cup OEM 689-44324-A0
P/N 12527 Wear plate OEM 689-44323-03
P/N 38108 Gasket, wear pump OEM 689-44316-A0

12287
12287

40 hp. 1984 - 1994
50 hp. 1986 - 1994
Pro 50 hp. 1991 - 1994

P/N 12287 Repair kit with housing $56.00
OEM 6H4-W0078-00 + 663-44311-02-00

Includes:
P/N 22503 Bolt (2) OEM 97080-08055
P/N 22502 Bolt (2) OEM 97080-08045
P/N 12875 Damper, water seal OEM 93210-37M67
P/N 12446 Water pump housing OEM: 663-44311-02-00
P/N 12864 Pump cup OEM 663-44322-00
P/N 89900 Impeller OEM 6H4-44352-02
P/N 89587 Key, woodruff OEM 90280-03024
P/N 38106 Gasket, water pump OEM 663-44315-Ao
P/N 12526 Wear plate OEM 663-44323-Ao
P/N 38011 Gasket, wear plate OEM 663-44324-Ao
P/N 38010 Gasket, water pump OEM 663-443160-Ao

12064 Yamaha without housing
12064 Yamaha without housing

40 hp. 1984 - 1994
50 hp. 1986 - 1994
Pro 50 hp. 1991 - 1994

P/N 12064 Repair kit $26.00 OEM 6H4-W0078-00

Includes:
P/N 22503 Bolts (2)
P/N 22502 Bolts (2)
P/N 12875 Damper seal
P/N 12864 Pump cup
P/N 89900 Impeller
P/N 89587 Key Woodruff
P/N 38106 Gasket
P/N 12526 Wear plate
P/N 38011 Gasket for wear plate
P/N 38010 Gasket

12288
12288

C-55 hp. years 1991-1995
CV-55 hp. 1989

P/N 12288 Complete water pump kit $47.00
OEM 663-W0078-A0 + 663-W0078-A0
+ 663-44311-02-00

Includes:
P/N 12875 Damper, water seal OEM 663-44366-00
P/N 12446 Water pump housing OEM 66-44311-02-00
P/N 12862 Pump cup OEM 663-44322-00
P/N 89910 Impeller OEM 6H3-44352-00
P/N 89599 Key, woodruff OEM 90280-03M03-00
P/N 38106 Gasket OEM 663-44315-A0
P/N 12526 Wear plate OEM 663-44323-00
P/N 38011 Gasket, pump cup OEM 663-44324-A0

12279
12279

C-55 hp. years 1991-1995
CV-55 hp. 1989

P/N 12279 Repair kit $27.00
OEM 663-W0078-01 and 663-W0078-A0

Includes:
P/N 12875 Damper, water seal OEM 663-44366-00
P/N 12862 Pump cup OEM 663-44322-00
P/N 89910 Impeller OEM 6H3-44352-00
P/N 89599 Key, woodruff OEM 90280-03M03-00
P/N 38106 Gasket, water pump OEM 663-44315-A0
P/N 12526 Wear plate OEM 663-44323-00
P/N 38011 Gasket, pump cup OEM 663-44324-A0

12289
12289

C-40 hp. 1998 - 2002
C-50 hp. 1998 - 2001
F-40 hp. 1999
F-50 hp. 1996 - 2005
F-60 hp. 2002 - 2005
P-40 hp. 1998
P-50 hp. 1995 - 1996
T-50 hp. 2002 - 2004
40 hp. 1995 - 2005
50 hp. 1995, 1996 and 1998 - 2005

P/N 12289 Complete unit as below with housing $85.00
OEM 63D-W0078-01 + 63D-44311-00-00

Includes:
P/N 12874 Cover pump housing OEM 63D-44312-00
P/N 12875 Damper water seal OEM 663-44366-00
P/N 22429 Bolt w/washer (4)OEM 90119-08M15
P/N 12079 Water pump housing OEM 63D-44311-00-00
P/N 12873 Pump cup OEM 63D-44322-00
P/N 89910 Impeller OEM 6H3-44352-00
P/N 89587 Key, woodruff OEM 90280-03024
P/N 84305 O-ring OEM 93210-59MG7
P/N 12524 Wear plate OEM 63D-44323-00
P/N 38008 Gasket, water pump OEM 63D-44316-00

12276
12276

Same as above unit less the outside case
C-40 hp. 1998 - 2002
C-50 hp. 1998 - 2001
F-40 hp. 1999
F-50 hp. 1996 - 2005
F-60 hp. 2002 - 2005
P-40 hp. 1998
P-50 hp. 1995 - 1996
T-50 hp. 2002 - 2004
40 hp. 1995 - 2005
50 hp. 1995, 1996 and 1998 - 2005

P/N 12276 outboard water pump repair kit
OEM63D-W0078-C1 $26.00

Includes:
P/N 12874 Cover pump housing OEM 63D-44312-00
P/N 12875 Damper water seal OEM 663-44366-00
P/N 22429 Bolt w/washer (4)OEM 90119-08M15
P/N 12079 Water pump housing OEM 63D-44311-00-00
P/N 12873 Pump cup OEM 63D-44322-00
P/N 89910 Impeller OEM 6H3-44352-00
P/N 89587 Key, woodruff OEM 90280-03024
P/N 84305 O-ring OEM 93210-59MG7
P/N 12524 Wear plate OEM 63D-44323-00
P/N 38008 Gasket, water pump OEM 63D-44316-00

12291
12291

C-60 hp. 1997 - 2001
C-70 hp. 2000 - 2001
P-60 hp. 1997 - 1999
T-50 hp. 1997 - 2001,2003,2005
T-60 hp. 2003 - 2005
60 hp. 2003
70 hp. 1997 - 2003

P/N 12291 as above with pump housing $68.00

Includes:
P/N 22504 Bolt w/washer (2) OEM 90119-08M14-00
P/N 12447 Water pump housing OEM 6H3-44311-02-00
P/N 12864 Pump cup OEM 663-44322-00
P/N 89910 Impeller OEM 6H3-44352-00
P/N 89599 Key, woodruff OEM 90280-03M03-00
P/N 38004 Gasket, water pump OEM 6H3-44315-A0
P/N 12514 Wear plate OEM 6H3-44323-A0
P/N 38005 Gasket, wear plate OEM 6H3-44316-A0
P/N 38002 Gasket, water pump OEM 688-44316-A0
P/N 84290 O-ring OEM 93210-460444-00

12283
12283

C-60 hp. 1997 - 2001
C-70 hp. 2000 - 2001
P-60 hp. 1997 - 1999
T-50 hp. 1997 - 2001, 2003 and 2005
T-60 hp. 2003 - 2005
60 hp. 2003
70 hp. 1997 - 2003

P/N 12283 repair kit with out housing $25.00

Includes:
P/N 22504 Bolt w/washer (2) OEM 90119-08M14-00
P/N 12864 Pump cup OEM 663-44322-00
P/N 89910 Impeller OEM 6H3-44352-00
P/N 89599 Key, woodruff OEM 90280-03M03-00
P/N 38004 Gasket, water pump OEM 6H3-44315-A0
P/N 12514 Wear plate OEM 6H3-44323-A0
P/N 38005 Gasket, wear plate OEM 6H3-44316-A0
P/N 38002 Gasket, water pump OEM 688-44316-A0
P/N 84290 O-ring OEM 93210-460444-00

12292
12292

T50 horsepower year 1996
C55 hp. (drive 2) 1991 - 1994
CV55 hp. (drive 2) year 1989
P60 hp. year 1991
60 hp. years 1984 - 1991

P/N 12292 as above with pump housing $77.00

Includes:
P/N 22503 Bolt (2) OEM 97080-08055
P/N 22502 Bolt (2) OEM 97080-08045
P/N 12447 Water pump housing OEM 6H3-44311-02-00
P/N 12864 Pump cup OEM 663-44322-00
P/N 89910 Impeller OEM 6H3-44352-00
P/N 89599 Key, woodruff OEM 90280-03M03
P/N 38004 Gasket, water pump OEM 6H3-44315-A0
P/N 12514 Wear plate OEM 6H3-44323-00
P/N 38005 Gasket, wear plate OEM 6H3-44324-00
P/N 38002 Gasket, water pump OEM 688-44316-A0
P/N 84290 O-ring OEM 93210-46044

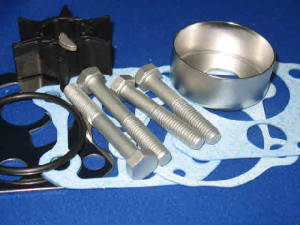

12057
12057

T50 horsepower year 1996
C55 hp. (drive 2) 1991 - 1994
CV 55 hp. (drive 2) year 1989
P60 hp. year 1991
70 hp. years 1984 - 1991

P/N 12057 without housing $ 31.00 OEM 6H3-W0078-00

12293
12293

P/N 12293 as below with pump housing $76.00 OEM 693-W0078-02 * 688-44311-01-00

Includes:
P/N 22508 Bolt w/washer (2) OEM 90119-08M13-00
P/N 12078 Water pump housing OEM 688-44311-01-00
P/N 12862 Pump cup OEM 688=44322-00
P/N 89920 Impeller OEM 688-44352-03
P/N 89595 Key, woodruff OEM 90280-04M04
P/N 38001 Gasket, water pump OEM 688-44315-A0
P/N 12513 Wear plate OEM 688-44323-00
P/N 38003 Gasket, wear plate OEM 688-44316-A0
P/N 38002 Gasket, water pump OEM 688-44316-A0
P/N 84290 O-ring OEM 93210-46044-00

12282
12282

B-90 hp. 1998 - 1999
C-75 hp. 1998 - 1999
C-80 hp. 1997
C-90 hp. 1997 - 2001
E-75 hp. 2000
P-75 hp. 1997 - 1999
60 hp. 2004 - 2005
70 hp. 2004 - 2005
90 hp. 1997 - 2005

P/N 12282 Repair kit OEM 693-W0078-02 $27.00

Includes:
P/N 22508 Bolt w/washer (2) OEM 90119-08M13-00
P/N 12862 Pump cup OEM 688=44322-00
P/N 89920 Impeller OEM 688-44352-03
P/N 89595 Key, woodruff OEM 90280-04M04
P/N 38001 Gasket, water pump OEM 688-44315-A0
P/N 12513 Wear plate OEM 688-44323-00
P/N 38003 Gasket, wear plate OEM 688-44316-A0
P/N 38002 Gasket, water pump OEM 688-44316-A0
P/N 84290 O-ring OEM 93210-46044-00

12294 75-85-90 hp.
12294 75-85-90 hp.

C70 hp. 2000-2001
CV 85 hp.1989 - 1991
90 hp. 1984 - 1996 OEM 692-W0078-00-00

P/N 12294 as above with pump housing $86.00

Includes:
P/N 22505 Bolt (2) OEM 97095-08050
P/N 22501 Bolt (2) OEM 97095-08070
P/N 12078 Water pump housing OEM 688-44311-01-00
P/N 12862 Pump cup OEM 688-44322-00
P/N 89920 Impeller OEM 688-44352-03
P/N 89595 Key, woodruff OEM 90280-04M04
P/N 38001 Gasket, water pump OEM 688-44315-A0
P/N 12513 Wear plate OEM 688-44323-00
P/N 38003 Gasket, wear plate OEM 63D-44323-00
P/N 38002 Gasket, water pump OEM 688-44316-A0
P/N 84290 O-ring OEM 93210-46044

12053
12053

C-70 hp. 2000-2001
CV-85 hp. 1989 -1991
90 hp. 1984 - 1996

P/N 12053 Repair kit $ 30.00
OEM 692-W0078-00-00

12295
12295

F-100 hp. 2000 - 2002
F-75 hp. 2003 - 2005
F-80 hp. 1999 - 2003
F-90 hp. 2003 - 2005
FT-80 hp. 2002 - 2003

P/N 12295 Service kit $77.00
OEM 67F-W0078-00 + 67F-44311-01-00

Includes:
P/N 22509 Bolt, w/washer (2) OEM 90119-08M87
P/N 22508 Bolt, w/washer (2) OEM 90119-08M13
P/N 12443 Water pump housing OEM 67F-44311-01-00
P/N 12872 Pump cup OEM 67F-44322-00
P/N 89624 Impeller OEM 67F-44352-00
P/N 89595 Key, woodruff OEM 90280-04M04
P/N 38001 Gasket, water pump OEM 688-44315-A0
P/N 12523 Wear plate OEM 67F-44323-00
P/N 38003 Gasket, wear plate OEM 688-44324-AO
P/N 38002 Gasket, water pump OEM 688-44316-AO
P/N 84290 O-ring OEM 93210-46044

12275
12275

F-100 hp. 2000 - 2002
F-75 hp. 2003 - 2005
F-80 hp. 1999 - 2003
F-90 hp. 2003 - 2005
FT-80 hp. 2002 - 2003

P/N 12275 Service kit $47.00
OEM 67F-W0078-00

12296
12296

F-115 hp. 2002 - 2005
LF-115 hp. 2002 - 2005

P/N 12296 Service kit with housing OEM 68V-W0078-00 + 61A-44311-00-00 $69.00

Includes:
P/N 22504 Bolt, w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12074 Water pump housing OEM 61A-44311-01-00
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-4435201-00
P/N 89588 Key, woodruff OEM 90280-04002-00, 9028004M05
P/N 12518 Wear plate OEM 68V-44323-00
P/N 38000 Gasket, water pump OEM 6E5-44315-A0

12067.
12067.

F-115 hp. 2002 - 2005
LF-115 hp. 2002 - 2005

P/N 12067 Service kit $69.00

F-115 hp. 2002 - 2005
LF-115 hp. 2002 - 2005

12297
12297

C-115 hp. 1997 - 2000
F-115 hp. 2000 - 2001
L-130 hp. 1997 - 2001
LF-115 hp. 2000 - 2001
S-115 hp. 1997 - 1999
S-130 hp. 1997 - 1999
115 hp. 1997 - 2005
130 hp. 1997 - 2004

P/N 12297 Service kit with housing OEM 6N6-W0078-02 + 61A-443-00-00 $64.00

C-115 hp. 1997 - 2000
F-115 hp. 2000 - 2001
L-130 hp. 1997 - 2001
LF-115 hp. 2000 - 2001
S-115 hp. 1997 - 1999
S-130 hp. 1997 - 1999
115 hp. 1997 - 2005
130 hp. 1997 - 2004

Includes:
P/N 22504 Bolt, with washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O ring OEM 93210-37M67
P/N 84295 O ring OEM 93210-86M38
P/N 12074 Water pump housing OEM 61A-44311-01-00
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-4435201-00
P/N 89588 Key, woodruff OEM 90280-04002-00, 9028004M05
P/N 12522 Wear plate OEM 6E5-44323-00
P/N 38000 Gasket, water pump OEM 6E5-44315-A0

12286
12286

C-115 hp. 1997 - 2000
F-115 hp. 2000 - 2001
L-130 hp. 1997 - 2001
LF-115 hp. 2000 - 2001
S-115 hp. 1997 - 1999
S-130 hp. 1997 - 1999
115 hp. 1997 - 2005
130 hp. 1997 - 2004

P/N 12286 Service kit OEM 6N6-W0078-02 $64.00

Includes:
P/N 22504 Bolt w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12074 Water pump housing OEM 61A-44311-00-00
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-44352-01
P/N 89588 Key, woodruff OEM 90280-04M05
P/N 12521 Wear plate OEM 65N-44323-00
P/N 38007 Gasket water pump OEM 65N-44315-AO

12299
12299

P/N 12299 as below unit with pump housing $112.00
OEM 6N6-W0078-00 OEM 61A-44311-00-00

12264
12264

C-115 hp. years 1993 - 1996
C-130 hp. year 1996
L-130 and P-115 hp. 1993 - 1996
S-115 and S-130 hp. year 1996
115 and 130 hp. years 1993 - 1996

P/N 12264 Service kit $47.00 OEM 6N6-W0078-00

12086
12086

P/N 12086 as above with pump housing $122.00
OEM 6E5-W0078-01 + OEM 6E5-44311-00-00

Includes:
P/N 22502 Bolt (4) OEM 97395-08045
P/N 22506 Washer (4) OEM 90209-08M02
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12077 Water pump housing OEM 6E5-44311-00-00
P/N 12871 Pump cup OEM 6E5-44322-00
P/N 89930 Impeller OEM 6E5-44352-01
P/N 89588 Key, woodruff OEM 90280-04M05
P/N 12522 Wear plate OEM 6E5-44323-00
P/N 38000 Gasket, water pump OEM 6E5-44315-AO

12054
12054

C-115 hp. 1991 and 1992
L-130 hp. 1989
C115 hp. 1992, 1993 - 1996
115 hp. 1984
C115 hp. 1992, 1993 - 1996
130 hp. 1988
C115 hp. 1992, 1993 - 1996

P/N 12054 Yamaha repair kit
OEM 6E5-W0078-A1-00
Click on picture to see larger view and parts included $49.00

12298
12298

B-115 hp. 1998 - 1999
D-150 hp. 1997 - 1999
DX-150 hp. 1999 - 2005

P/N 12298 Water pump complete OEM 65N-W0078-A1 + 61A-44311-00-00 $57.00

Includes:
P/N 22504 Bolt, w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12074 Water pump housing OEM 61A-44311-01-00
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-4435201-00
P/N 89588 Key, woodruff OEM 90280-04002-00, 9028004M05
P/N 12521 Wear plate OEM 65N-44322-00
P/N 38007 Gasket, water pump OEM

12075
12075

B-115 hp. 1998 - 1999
D-150 hp. 1997 - 1999
DX-150 hp. 1999 - 2005

P/N 12075 pump without housing $ 57.00

12068
12068

VZ-200 hp. 2005
VZ-225 hp. 2003 - 2005
VZ-250 hp. 2003 - 2005
VZ-300 hp. 2004 - 2005

P/N 12068 Impeller repair kit $63.00
OEM 60X-W0078-00-00

Includes:
P/N 22504 Bolt w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-44352-01
P/N 89588 Key, woodruff OEM 90280-04M05
P/N 12519 Wear plate OEM 60X-44323-00
P/N 38006 Gasket, water pump OEM 60X-44315-AO

12261
12261

2 Stroke
VZ-200 hp. 2005 - 2009
VZ-225 hp. 2003 - 2005
VZ-250 hp. 2003 - 2009
VZ-300 hp. 2004 - 2009

P/N 12261 Complete water pump kit
OEM 60X-W0078-00-00 + 61A-44311-01-00

Includes:
P/N 22504 Bolt w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-44352-01
P/N 89588 Key, woodruff OEM 90280-04M05
P/N 12519 Wear plate OEM 60X-44323-00
P/N 38006 Gasket, water pump OEM 60X-44315-AO
P/N 12074 water pump housing OEM 51A-44311-01-00

12069 water pump kit
12069 water pump kit

PX150 hp. 1999
SX150 hp. 1999 - 2002
V150 hp. 2000 - 2002
VX150 hp. 2001, 2002
Z150/LZ150 hp. 2001, 2002
175 hp. (6R3) 1992 - 2002
P175 hp. (62H) 1994 - 1999
VZ175 hp. 2001, 2002
Z175 hp. 2001, 2002
200 hp. (6R4) 1992 - 1999
F200 hp. / LF200 hp. year 2002
L200 hp. 1992 - 1999
LX200 hp.1999 - 2002
P200 hp. 1991 - 1999
SX200 hp.1999 - 2002
V200 hp. 1998, 1999
VZ200 hp. 2001, 2002
Z200 / LZ200 2000 -2002
225 hp. 2.6 liter engine 1992 - 1997
225 / L225 / S225 3.1litre engine 1994 - 1999
F225 / LF225 hp. year 2002
LX225/SX225 hp. 2000 - 2002
V225 hp. 1998, 1999
VX225 hp. 200 - 2002
250 / L250 hp. 1990 - 1996
L250 / S250 hp. 1997 - 1999
VX250 hp. year 2002

P/N 12069 Yamaha repair kit without housing $48.00 OEM 61A-W0078-A3-00
Click on picture to see larger view and parts included


Includes:
P/N 22504 Bolt w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-44352-01
P/N 89588 Key, woodruff OEM 90280-04M05
P/N 12511 Wear plate OEM 6G5-44323-00
P/N 38000 Gasket, water pump OEM 6E5-44315-AO

12419
12419

PX150 hp. 1999
SX150 hp. 1999 - 2002
V150 hp. 2000 - 2002
VX150 hp. 2001, 2002
Z150/LZ150 hp. 2001, 2002
175 hp. (6R3) 1992 - 2002
P175 hp. (62H) 1994 - 1999
VZ175 hp. 2001, 2002
Z175 hp. 2001, 2002
200 hp. (6R4) 1992 - 1999
F200 hp. / LF200 hp. year 2002
L200 hp. 1992 - 1999
LX200 hp.1999 - 2002
P200 hp. 1991 - 1999
SX200 hp.1999 - 2002
V200 hp. 1998, 1999
VZ200 hp. 2001, 2002
Z200 / LZ200 2000 -2002
225 hp. 2.6 liter engine 1992 - 1997
225 / L225 / S225 3.1litre engine 1994 - 1999
F225 / LF225 hp. year 2002
LX225/SX225 hp. 2000 - 2002
V225 hp. 1998, 1999
VX225 hp. 200 - 2002
250 / L250 hp. 1990 - 1996
L250 / S250 hp. 1997 - 1999
VX250 hp. year 2002

P/N 12419 Yamaha repair kit with pump housing
but without gasket and wear plate $48.00 OEM

Includes:
P/N 22504 Bolt, w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12074 Water pump housing OEM 61A-44311-01-00
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-4435201-00
P/N 89588 Key, woodruff OEM 90280-04002-00, 9028004M05

12262
12262

PX150 hp. 1999
SX150 hp. 1999 - 2002
V150 hp. 2000 - 2002
VX150 hp. 2001, 2002
Z150/LZ150 hp. 2001, 2002
175 hp. (6R3) 1992 - 2002
P175 hp. (62H) 1994 - 1999
VZ175 hp. 2001, 2002
Z175 hp. 2001, 2002
200 hp. (6R4) 1992 - 1999
F200 hp. / LF200 hp. year 2002
L200 hp. 1992 - 1999
LX200 hp.1999 - 2002
P200 hp. 1991 - 1999
SX200 hp.1999 - 2002
V200 hp. 1998, 1999
VZ200 hp. 2001, 2002
Z200 / LZ200 2000 -2002
225 hp. 2.6 liter engine 1992 - 1997
225 / L225 / S225 3.1 litre engine 1994 - 1999
F225 / LF225 hp. year 2002
LX225/SX225 hp. 2000 - 2002
V225 hp. 1998, 1999
VX225 hp. 200 - 2002
250 / L250 hp. 1990 - 1996
L250 / S250 hp. 1997 - 1999
VX250 hp. year 2002

P/N 12262 Complete repair kit
as above with housing $132.00
OEM 61A-W0078-A3 + 61A-44311-01-00

Includes:
P/N 22504 Bolt w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-44352-01
P/N 89588 Key, woodruff OEM 90280-04M05
P/N 12511 Wear plate OEM 6G5-44323-00
P/N 38000 Gasket, water pump OEM 6E5-44315-AO
P/N 12074 Water pump housing

12063
12063

P/N 12063 Same as below listing with out housing for
models: F/LF 300A V6 with 4.2 liter years 2007 and up

Includes:
P/N 12863 Water pump housing OEM 6AW-4431 2-00-00
P/N 45330 Cover O ring OEM 93210-94003
P/N 12867 Damper OEM 6AW-44365-00-00
P/N 21779 Cup OEM 93420-35085-00
P/N 85233 Oil seal OEM 93109-24001-00
P/N 22504 Bolt with washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 12879 Pump cup OEM 6AW-44322-00
P/N 89960 Impeller OEM 6AW-44352-00
P/N 89586 Key OEM 6AW-44336-00
P/N 12528 Wear plate OEM 6AW-44323-00
P/N 84300 Gasket, water pump OEM 93210-37M67
P/N 38050 O ring OEM 6AW-44315-00

12265
12265

P/N 12265 Complete kit with housing for models: F/LF 300A V6 with 4.2 liter years 2007 and up

Includes:
P/N 12863 Water pump housing OEM 6AW-4431 2-00-00
P/N 45330 Cover O ring OEM 93210-94003
P/N 12867 Damper OEM 6AW-44365-00-00
P/N 21779 Cup OEM 93420-35085-00
P/N 85233 Oil seal OEM 93109-24001-00
P/N 22504 Bolt with washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 12402 Water pump housing OEM 6AW-44311-01
P/N 12879 Pump cup OEM 6AW-44322-00
P/N 89960 Impeller OEM 6AW-44352-00
P/N 89586 Key OEM 6AW-44336-00
P/N 12528 Wear plate OEM 6AW-44323-00
P/N 84300 Gasket, water pump OEM 93210-37M67
P/N 38050 O ring OEM 6AW-44315-00

12089
12089

models: F/LF 300 and 350 V8
5.3 liter years 2007 and up

P/N 12089 Same as below listing with out housing

Includes
P/N 12863 Cover water pump housing
P/N 12867 Damper
P/N 21779 Clip
P/N 85233 Oil seal
P/N 22504 Bolt with washers
P/N 12808 Pin
P/N 84300 O ring
P/N 45330 O ring
P/N 12879 Pump cup
P/N 89960 Impeller
P/N 89586 Key
P/N 12528 Wear plate
P/N 38050 Gasket for wear plate

12248
12248

P/N 12248 Complete kit with housing for models: F/LF 300 and 350 hp. V8 with 5.3 liter years 2007 and up

Includes:
P/N 12863 Cover water pump housing
P/N 12867 Damper
P/N 21779 Clip
P/N 85233 Oil seal
P/N 22504 Bolt with washers
P/N 12808 Pin
P/N 84300 O ring
P/N 45330 O ring
P/N 12402 Housing
P/N 12879 Pump cup
P/N 89960 Impeller
P/N 89586 Key
P/N 12528 Wear plate
P/N 38050 Gasket for wear plate

12258
12258

Fits models:
VZ 200 hp. years 2005-2009
VZ 225 hp. years 2003-2009
VZ 250 hp. years 2003-2009
VZ 300 hp. years 2004-2009

P/N 12258 Pump kit OEM 6P2-W0078-00

Includes:
P/N 22504 Bolt, w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-4435201-00
P/N 89588 Key, woodruff OEM 90280-04002-00, 9028004M05
P/N 12529 Wear plate OEM
P/N 38006 Gasket, water pump OEM 60X-44317AO

12263
12263

Fits models:
VZ 200 hp. years 2005-2009
VZ 225 hp. years 2003-2009
VZ 250 hp. years 2003-2009
VZ 300 hp. years 2004-2009

P/N 12263 as above with pump housing
OEM 6P2-W0078-00 + 61A443-01-00

Includes:
P/N 22504 Bolt, w/washer (4) OEM 90119-08M14
P/N 12808 Pin, dowel (2) OEM 93606-12019
P/N 84300 O-ring OEM 93210-37M67
P/N 84295 O-ring OEM 93210-86M38
P/N 12074 Water pump housing OEM 61A-44311-01-00
P/N 12870 Pump cup OEM 61A-44322-02
P/N 89930 Impeller OEM 6E5-4435201-00
P/N 89588 Key, woodruff OEM 90280-04002-00, 9028004M05
P/N 12529 Wear plate OEM
P/N 38006 Gasket, water pump OEM 60X-44317AO

Copyright 2014 T.C. Electronics/Marine (416) 751-7326 All rights reserved.
