Yamaha outboard water pump kit *40 hp. *50 hp.

GLM Marine aftermarket lower unit water pump kit years: 1985 to 1994 40 hp., 1983 to 1993 50 hp. years 1987 to 1990 Pro 50 hp. 1991-1992-1993 P50 hp.

Lower unit water pump repair kit without pump housing
  • 40 horsepower year 1985
  • 50 hp. years 1984 to 1993
  • 50 hp. Pro years 1987 to 1990
  • P50 hp. years 1991 to 1993

Exploded view lower unit Yamaha drawings
Search by part number or description here

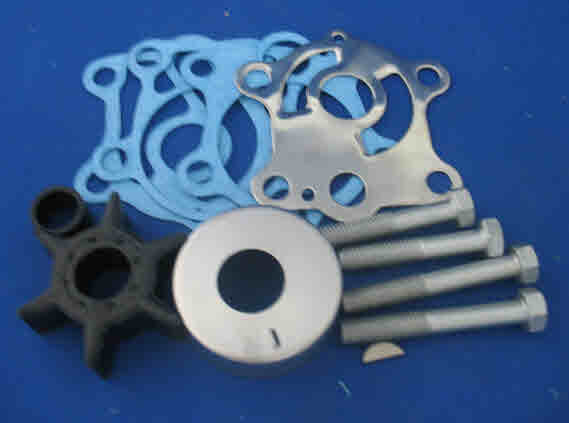

12064 Yamaha outboard lower unit water pump

12064

P/N 12064 OEM 6H4-W0078-00 GLM aftermarket water pump repair kit $28.29

Qty
OEM number and description
1
663-44322-00 Insert cartridge
1
6H4-44352-00 Impeller
1
663-44315-00 Gasket
1
663-44323-00 Outer plate cartridge
1
663-44324-00 Gasket, cartridge outer
1
663-44316-00 gasket B
2
97395-08055 Bolt
2
97395-08045 Bolt
1
663-44366-00 Damper seal
1
90280-03024 Woodruff key
