Yamaha outboard water pump*T50 *C55 *CV55 *P60 *70 hp

Lower unit water pump kit for model (T50 hp. 1986), (C55 hp. 1991 to 1994), (CV55 hp. 1989) (P60 hp. 1991) and 70 hp. 1984 to 1991

Repair kit with out housing
  • T50 horsepower year 1996
  • C55 hp. (drive 2) 1991 to 1994
  • CV55 hp. (drive 2) year 1989
  • P60 hp. year 1991
  • 70 hp. years 1984 to 1991

Exploded view Yamaha outboard lower unit drawings
Search by part number or description here

12057 Yamaha outboard

12057 Yamaha outboard

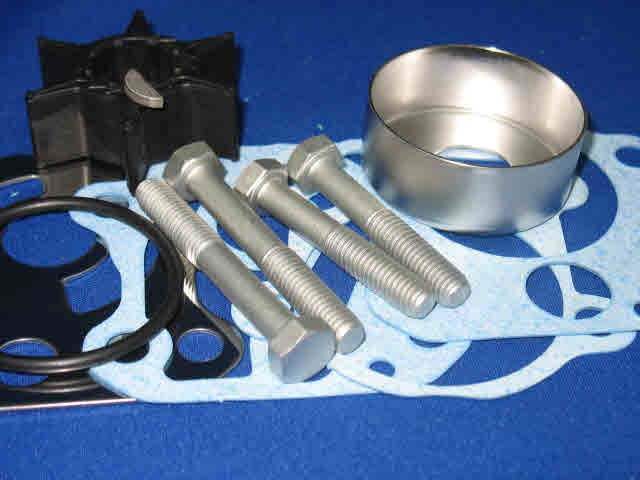

P/N 12057 GLM aftermarket water pump repair kit OEM 6H3-W0078-00-00 $33.29

Qty

OEM number and description

1
663-44322-00 Insert cartridge
1
6H3-44352-00 Impeller
1
6H3-44315-00 Gasket, A
1
6H3-44323-00 Outer plate cartridge
1
6H3-44324-00 Gasket, cartridge outer
1
688-44316-01 gasket B
1
93210-46044 O-ring
2
97395-08045 Bolt
2

97395-08055 Bolt

1
90280-03M03 Woodruff key
