Yamaha outboard water pump repair kit *115 *130 hp.

GLM Marine aftermarket lower unit water pump kit for model: C115 HP., 115 HP., 130 HP. and L130 HP.

Water pump repair kit with out housing
  • C115 hp. years 1991 and 1992
  • 115 hp. 6N6, 6E5 years 1984 to 1992
  • 130 hp. 6L1, 6N7, years 1988 to 1992
  • L130 hp. 6L6, 6N4, years 1989 to 1992

Exploded view Yamaha outboard lower unit drawings
Search by part number or description here

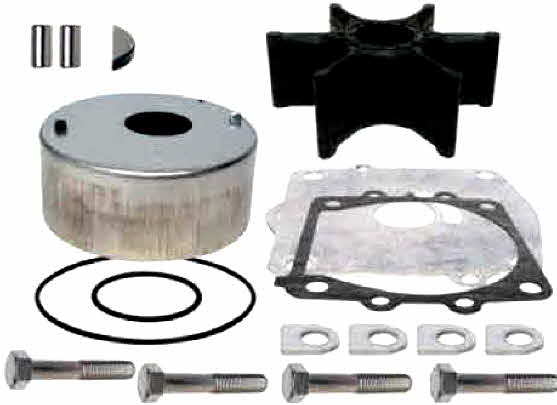

12054 Yamaha water pump OEM 6G5-W0078-A1-00

12054

P/N 12054 Yamaha outboard water pump repair kit OEM 6G5-W0078-A1-00 $52.29

Qty

OEM number and description

4
90209-08M02 Washers
2
93606-12019 Dowel pins (2)
1
93210-86M38 O-ring
1
6E5-44315-A0 Water pump gasket
1
6E5-44322-00 Pump cup
1
6E5-44352-00 Impeller
1
6E5-44323-00 Wear plate
1
90280-04M05-00 Woodruff key
4
97395-08045-00 Bolt
1
93210-37M67 O-ring
