Yamaha outboard impeller 2 to 300 hp.

GLM Marine aftermarket water pump impeller

  • One outboard impeller is included in all GLM marine water pump kits please look here for installation video
  • Inside of pump cup should be lubricated with wheel bearing grease. Then installed on drive shaft with key or pin, then press down pump housing while turning the drive shaft clockwise till unit seats out in the pump cup area.
  • See picture below for detailed information, including the water pump impeller key-pin type and part number that will be required to install in lower unit gearcase.

Exploded view lower unit outboard drawings
Search by part number or description here

Please note that keys or pin is sold separately

89850

89850

P/N 89850 Impeller OEM 646-44352-01-00 $11.29

Requires key OEM 17-82355M
2 hp. years 1984 to 2002

89860

89860

P/N 89860 Impeller OEM 6EO-44352-00-00 $11.29
Requires key OEM 17-82355M

4 hp. years 1984 to 1998
5 hp. years 1984 to 2002

89870 Impeller

89870 Impeller

P/N 89870 Impeller OEM 6G1-44352-00-00 $17.29
Requires key OEM 28-81912M

6-8 hp. 1984 to 2002
T 8 hp. 2001 and 2002

89880

89880

P/N 89880 Impeller OEM 682-44352-03 $18.29
Requires key P/N 89587 OEM 90280-03024

9.9 hp. 1984 to 1995
F 9.9 hp. 1986 to 1995, 1997 to 2004
FT 9.9 hp. 1985 to 1990
T 9.9 hp. 1991 to 1997, 1999 and 2001 to 2004
15 hp. 1984 to 1995

89660

89660

P/N 89660 Impeller 40 horsepower outboard OEM 6F5-44352-00 $16.00
Requires key P/N 89595 OEM 90280-04M04-00

C 40 hp. years 1991, 1993, 1995 and 1997
CV 40 hp. year 1990

89619 9.9 horsepower years 1996-2005

89619 9.9 horsepower years 1996-2005

P/N 89619 Outboard impeller 63V-44352-01 $17.00
Requires woodruff key P/N 89589 OEM 664-44338-00

9.9 hp. years 1996 to 2005
F 9.9 hp. year 2005
T 9.9 hp. year 2005
15 hp. years 1996 to 2004
F 15 hp. 1998 to 2005

89622 water pump

89622 water pump

P/N 89622 Impeller OEM 6L2-44352-00 $17.00
Requires key P/N 89587 OEM 90280-03024

20 hp. 1996 and 1997
25 hp. 1988 to 1996, 1998, 2000, 2003 and 2004

89624 Outboard 75-80 horsepower

89624 Outboard 75-80 horsepower

P/N 89624 Impeller OEM 67F-44352-00 $26.00
Requires key P/N 89595 OEM 90280-04M04-00

F 75 hp. 2003, 2004 and 2005
F 80 hp. 1999 to 2003
FT 80 hp. 2002 and 2003

018-30650 Sierra Mallory 20-25 hp.

018-30650 Sierra Mallory 20-25 hp.

P/N 018-30650 Impeller $21.29

20 hp. 2 cylinder years 1996 to 1997
25 hp. 2 cylinder years 1988 to 2002

89890

89890

P/N 89890 Impeller $23.29
OEM 689-44352-02-00
Requires key P/N 89589
OEM 664-44338-00

25 hp. 2 cylinder years 1984 to 1987
C 25 hp. 3 cylinder years 1990 to 1997
CV 25 hp year 1990
30 hp. 1984 to 1986

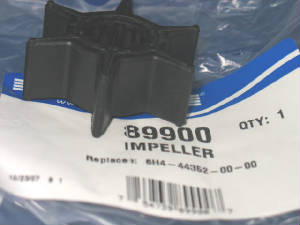

89900 3 cylinder

89900 3 cylinder

P/N 89900 Water pump impeller OEM 6H6-44352-02 $23.29
Requires woodruff key P/N 89587
OEM 90280-03024

25 hp. 3 cylinder 1996 to 2002
F25 hp. 1998 to 2004
T25 hp. 2001 to 2004

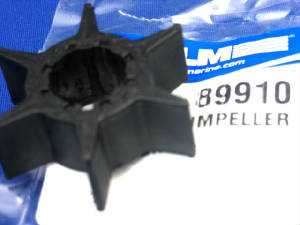

89910 70 hp

89910 70 hp

P/N 89910 Impeller $29.29
OEM 646-44352-00
Requires key P/N 89599
OEM 90280-03M03-00

Year and hp.
40 hp. 1995-2002
C40 hp. 1997-2002
F40 hp. 1999
P40 hp. 1998
50 hp. 1995-2004
C50 hp. 1999-2001
F50 hp. 1999-2003
P50 hp. 1995-1996
T50 hp.1996-2002
C55 hp. drive 1 1991-1994
CV55 hp. drive 1 1989
C55 hp. drive 2 1991-1994
CV55 hp. drive 1989
C60 hp. 1990-2001
E60 hp. 1995-2000
P60 hp.1991-1999
70 hp. 1984-2002
C75 hp. 1994-1999
E75 hp. 1995-2000
6H3-44352-00-00

89920 Yamaha 90 hp.

89920 Yamaha 90 hp.

P/N 89920 Impeller $23.29
OEM 688-44352-03-00
Requires key P/N 89595
OEM 90280-04M04-00

C75 hp. 1994-1999
E75 hp. 1995-2000
P75 hp. 1996-1999
C80 hp. 1997 85 hp. 1985
C85 hp. 1989-1997
CV85 hp. 1989-1991
90 hp. 1984-2002
90 hp. Jet 1986-1989
B90 hp. 1997-1999
C90 hp. 1997-2001

89930

89930

P/N 89930 Yamaha water pump impeller OEM 6E5-44352-01 please click here $22.29
Requires key P/N 89588 OEM 90280-04M05-00

PX150 hp. 1999
SX150 hp. 1999 to 2002
V150 hp. 2000 to 2002
VX150 hp. 2001, 2002
Z150/LZ150 hp. 2001, 2002
175 hp. (6R3) 1992 to 2002
P175 hp. (62H) 1994 to 1999
VZ175 hp. 2001, 2002
Z175 hp. 2001, 2002
200 hp. (6R4) 1992 to 1999
F200 hp. / LF200 hp. 2002
L200 hp. 1992 to 1999
LX200 hp. 1999 to 2002
P200 hp. 1991 to 1999
SX200 hp. 1999 to 2002
V200 hp. 1998, 1999
VZ200 hp. 2001, 2002
Z200 / LZ200 2000 to 2002
225 hp. 2.6 liter engine 1992 to 1997
225 / L225 / S225 3.1 liter engine 1994 to 1999
F225 / LF225 hp. 2002
LX225/SX225 hp. 2000 - 2002
225 hp. 1998, 1999
VX225 hp. 200 to 2002
250 / L250 hp. 1990 - 1996
S 250 hp. 1996 -1999
LX 250 hp. 2000 to 2003
SX 250 hp. 2000 to 2003
VX 250 hp. 2002 to 2004
Z 250 2003 to 2005
LZ 250 2003 to 2005
VZ 250 hp. 2003 to 2005
Z 300 hp. 2004 and 2005
LZ 300 hp. 2004 and 2005
YZ 300 hp. 2004 and 2005
