Yamaha outboard parts *Lower unit drawings

T.C. Electronics/Marine ( Need the home page please click here )

Yamaha outboard water pump *40-50-60 hp.

GLM aftermarket lower unit kits fits models: C-40 hp. (1998-2002)
C-50 hp. (1998-2001), F-40 hp (1999) F-50 hp. (1996-2005)
F-60 hp. (2002-2005), P-40 hp. (1998) 50 hp (1995-1996)
T-50 hp. (2002-2004), 40 hp 1995-2005, 50 hp. (1995-1996 and 1998-2005)

Bolts, o ring, water seal, cup, wear plate woodruff key and impeller

  • 40 hp. years 1996 to 2005
  • P-40 hp. years 1998
  • C-40 hp. years 1998 to 2002
  • F-40 hp. years 1999
  • F-50 hp. years 1996 to 2005
  • T-50 hp. years 2002 to 2004
  • C-50 hp. years 1998 to 2001
  • P-50 hp. years 1995 and 1996
  • 50 hp. years 1995, 1996 and 1998 to 2006
  • F-60 hp. years 2002 to 2005

Exploded view Yamaha lower unit outboard drawings
Search by part number or description here


12276

12276

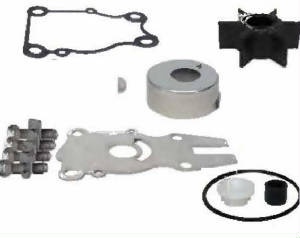

GLM P/N 12276 Water pump kit with out housing OEM 63DW0078-01 $29.29

Qty
OEM number and parts description
1
1
89587 Woodruff key OEM 90280-03024
1

84305 0-ring OEM 93210-59MG7

1
12079 housing OEM 63D-44311-00-00
1
38008 gasket OEM 63D-44316-00
1
12524 Wear plate OEM: 63D-44323-00
1
12873 Pump cup OEM 63D-44322-00
1
12874 Cover OEM 63D-44312-00
1
12875 Damper water seal OEM 663-44366-00
4
22429 Bolt with washers 4 units OEM 90119-08M15
