Yamaha outboard water pump *C70*CV85*90 hp.

GLM Marine aftermarket water pump kits 70-90 hp.

Water pump repair kit without housing

  • C70 hp. 2000-2001
  • CV85 hp.1989 to 1991
  • 90 hp. 1984 to 1996

Exploded view Yamaha outboard lower unit drawings
Search by part number or description here

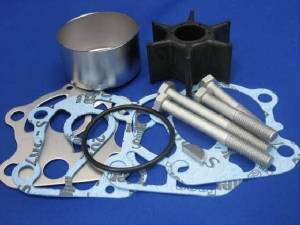

Yamaha water pump repair kit

Yamaha water pump repair kit

P/N 12053 Yamaha water pump repair kit with out housing OEM 692-W0078-00-00 $32.29

Qty

OEM number and description

1
688-44322-00 Insert cartridge
1
93210-37M67-00 O RING
1
688-44352-03 Impeller
1
688-44315-00 Water pump gasket I
1
688-44324-00 Outer plate Cartridge
1
688-44316-01 Water pump gasket 2
2
93210-46044 O Ring
2
97395-08050 Bolt
2
97395-08070 Bolt
1
90280-04M04 Woodruff key
