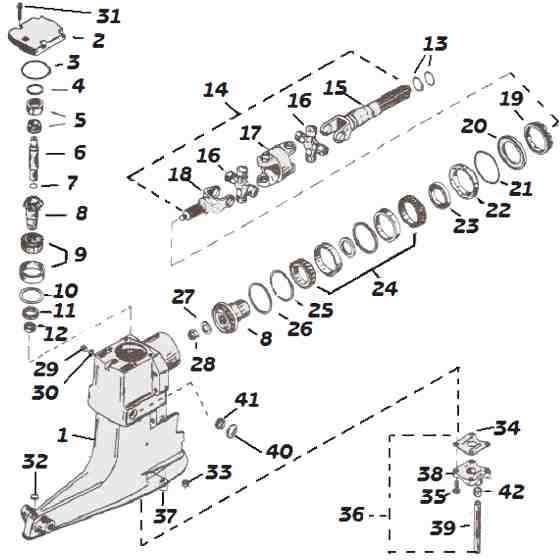

Mercruiser outdrive drawing upper gearcase parts

Comprehensive upper gearcase outdrive parts. Link to each specific stern drive item just click on photo's

drawing

drawing


Description

85030 Oil seal

85030 Oil seal

23
P/N 85030 Oil seal - yoke $18.89

21520 bearings set

21520 bearings set

24A
P/N 21520 Roller bearing set All Ratio except 1.32
OEM 31-35988A2 $179.99

23280 Shims

23280 Shims

25
P/N 23280
Double bearing shims *6 parts in all with different thickness
OEM number 15-35980A1 $21.89

28380 spacers

28380 spacers

26
P/N 28380
(1 unit) Spacer
OEM 15-71013 $9.99

28330 Tension washer

28330 Tension washer

27
P/N 28330
tension Washer
OEM 12-45810 $9.89

28360 Lock Nut

28360 Lock Nut

28
P/N 28360
Outdrive lock nut for drive gear
OEM 11-22339 $4.95

22420 screw

22420 screw

29
P/N 22420
Oil screw $5.99

31170 Gasket

31170 Gasket

30
P/N 31170
Washer (5 units). 26-8M0058390 $14.89
1 washer included in seal kit

28300 screw / bolt

28300 screw / bolt

31
P/N 28300
Screw for cover OEM 10-98794 $4.95

21890 plug

21890 plug

32
P/N 21890
Mercruiser upper gearcase plug
OEM 19-47579 $4.95

21170 lock nuts

21170 lock nuts

33
P/N 21170
Lock nuts (5 units)
OEM 11-13439-1 $14.89

31150 gasket

31150 gasket

34
P/N 31150
Gasket
Included in seal kit
22440 screw

22440 screw

35
P/N 22440
Screw OEM 10-28668 $4.95

12200 water pump passage kit

12200 water pump passage kit

36
P/N 12200 Water pocket cover kit
Includes the following parts:
o ring, copper water tube, grommet, gasket and four stainless steel screws OEM 42724A3 $35.89

21423 bushing

21423 bushing

37
P/N 21423
Bushing - shift shaft
OEM 23-32632 $22.89


38
Grommet (Included in seal kit)
12202 water pump tube

12202 water pump tube

39
P/N 12202
water pump tube (include in water pocket cover kit P/N 12200 shown above). OEM 32-54236
22031 plug

22031 plug

40
P/N 22031
Welch plug (1-1/4"O.D.)
OEM 19-42682 $4.95

22032 plug

22032 plug

41
P/N 22032
pipe plug
OEM 22-42861-1 $4.95

39622 Bell housing gasket kit

39622 Bell housing gasket kit

42
P/N 39622
Mercruiser bell housing outdrive gasket kit OEM 27-94996Q2
Compatible with model R, MR, Alpha 1 years 1983 and up $9.95

39590 Bell housing gasket kit

43
P/N 39590
Mercruiser bell housing outdrive gasket kit OEM 27-64818T4
Compatible with MC-1 model 1967 to 1982 $9.95
