Mercruiser water tube assembly or trim connector screw

Upper gear-case and trim hose connector screw

  • GLM part P/N 22440 replaces OEM 10-28668 and Sierra P/N 19-3229
  • Installs into the upper gear case water pocket cover (4 required) and the gimbal housing trim connector housing (2 required)
  • National coarse thread, screw measures approximately 3/4 inch (not including bolt head)

Tech support Exploded view drawings
Search by part number or description here

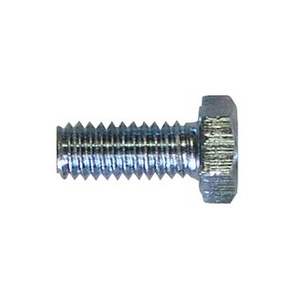

22440 Screw Bolt Mercruiser 10-28668

22440 Screw Bolt Mercruiser 10-28668

GLM P/N 22440 $2.15

Customers who ordered P/N 22440 also purchased:

21970 Trim Hose Connector Kit 98825A4

21970 Trim Hose Connector Kit 98825A4

Hydraulic trim hose connector kit P/N 21970 includes junction box which has 4 inputs and 2 outputs, installation gaskets and screws (22440). Replaces OEM 98825A4.

12200 Water Pocket Tube 42724A3

12200 Water Pocket Tube 42724A3

Water tube passage kit P/N 12200 includes brass tube 12202, plastic base, mounting gasket and mounting screws. Replaces OEM 42724A3, Sierra P/N 18-3219.
