Mercruiser upper gearcase vertical drive shaft

Mercruiser outdrive upper gear housing shaft

  • GLM 11130 replaces Mercury 45-55796 and Sierra 18-2179
  • 4-1/2" in length, with an O.D. of 1.18" in the center of part
  • Installed in order to hold driven gear and bearing in place
  • Compatible with upper stern drive models 1968 - 1990, including Alpha 1 Gen 1
  • Mercruiser Tech support Exploded view drawings search by part number or description here

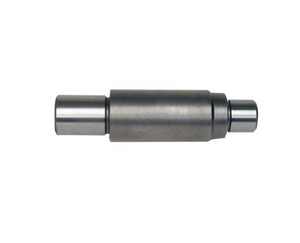

11130 Drive Shaft Upper 45-55796

11130 Drive Shaft Upper 45-55796

GLM P/N 11130 Vertical drive shaft OEM 45-55796 $107.95

Help With Replacing This Part

When replacing this part, because you'll need to remove and replace the top bearing (31-61100A1) - you'll need to re-shim this part. It is recommended to purchase a new shim kit and seal kit when performing this job (these can be purchased below). Begin by removing the top bearing and gears off.

After pressing the bearing onto the new part, install a new o-ring so it sits right against the underside of the bearing. Use a sealing compound on this o-ring. You'll need an arbor press or similar tool to press the shaft into the driven gear until it seats properly into the collar section of the gear.

Turn it over, and press the other bearing onto the driven gear. Next, install the new shims under the driven gear bearing race, and also the top cap bearing.

When shimming, the torque value of this part (using a torque tool set to in-lbs) should be 2 to 6 in-lbs. If the reading is over 6, remove some shims; and if it is below 2 add shims.



Customers who ordered 11130 also purchased:

51210 GM 120-140 hp manifold parts years 1982-1995

51210 GM 120-140 hp manifold parts years 1982-1995

P/N 51210 Unit OEM 806867A8 GM 120 / 140 hp. 4 Cylinder 153 / 181 CID years 1982 - 1995

Contains the following item if required:
P/N 51210 Exhaust manifold 806867A8
P/N 33570 Gasket 27-96429
P/N 30920 Gasket-End cap (5) 27- 807218
P/N 31520 Gasket-elbow or adaptor 27- 99777- 2
P/N 51020 End cap 805629A1
P/N 51030 End cap 73813A1
P/N 13980 Straight Fitting Water Drain Contents 22-862557
P/N 13992 Drain Plug Kit (5)22-806608A1
P/N 80140 O-Ring (5) 25-45253
P/N 22443 Screw-End Cap (8) 21-824941
P/N 32180 Gasket-Carburetor Base 27-807982
P/N 22444 Screw Edit 10-807212
P/N 22445 Screw (2) 10-66863-1
P/N 22484 Stud (2) 16-56826
P/N 21892 Plug-Exhaust Elbow 22-41622
P/N 21248 Flange Serrated Nut (5) 11-46335
P/N 22482 Stud-Carburetor (2) 16-70236
P/N 21664 Washer- Carburetor (5) 12-20084
P/N 19354 Lock Nut Carburetor (5) 11-25594

P/N 51210 Exhaust manifold OEM 806867A8 $287.89

87500 GLM aftermarket Mercruiser upper gearcase seal kit

87500 GLM aftermarket Mercruiser upper gearcase seal kit

Seal kit 87500. All kits include o-rings, oil seals and gaskets in the upper housing. Remember to use a gasket sealing compound. Replaces OEM 26-32511A1, Sierra 18-2648.

M1 / R / MR / Alpha 1 (1964 - 1990) serial numbers 1684188 - OD469858
Includes:
P/N 80420 O-ring
P/N 25-32546
P/N 80190 O-ring
P/N 25-55801
P/N 81180 O-ring
P/N 25-25439
P/N 82380 O-ring 25-70937
P/N 85020/85060/85030 Oil seals OEM 26-32511/26-96503/26-823894
P/N 31150 Gasket 27-55810-1
P/N 85150 Grommet 26-36557

21905 Outdrive gimbal bearing

21905 Outdrive gimbal bearing

Compatible with Mercruiser 120/140, 470/485, 165, 888, 225/233, 898/228, 250/260, R, MR, Alpha 1/Gen II, Bravo models manufactured in the United States by GLM Marine.

Larger area between seals allows for up to 30% more grease filling and low carbon steel cage allows higher temperature operation also included in the GLM bellows kit P/N 21905 Gimbal bearing OEM 30-862540A3, 30-60794A4, 3853807, 983987

23270 Driven gear outside race shim set

23270 Driven gear outside race shim set

Mercruiser shim kit

P/N 23270

Installed under driven gear for Shim kit OEM 15-36178A1 for bearings P/N 21540, 21550 and 21560 replaces OEM 15-36178A1.

90100 Mercruiser tools bearing retainer wrench

90100 Mercruiser tools bearing retainer wrench

GLM aftermarket Mercruiser bearing retainer wrench for MC-1/R/MR/Alpha One/Alpha One Gen 2, Blackhawk, and Bravo.

Installs and removes drive shaft bearing retainer for use with the bearing retainer nut P/N 8350

P/N 90100 GLM Marine aftermarket Mercruiser drive shaft bearing retainer wrench 91-17256 $75.95

88010 Mercruiser outdrive water pump and seal kit

88010 Mercruiser outdrive water pump and seal kit

Lower unit water pump P/N 88010 and upper - lower gearcase seal kits $99.00

Compatible with models 1 and R (1970 - 1983)
Serial numbers 2663442 - 6225576

Includes:
P/N 87500 / 26-32511A1 Upper housing seal set
P/N 87510 / 26-33144A2 Lower seal set
P/N 89840 / 47-89984T4 Impeller
P/N 11070 / 28-56654 Key
P/N 12410 / 46-96148T1 Housing
P/N 12322 / 46-44292A3 Base
P/N 12820 / 23-29804T Guide tube
P/N 12810 / 48752 Cup
P/N 12510 / 32435 Wear plate
P/N 31010 / 27-85608-1 Gasket

11247 Teeth 20-24 ratio 2.4 or 1.94 years 1998-up

GLM Marine Products aftermarket gears for upper gearcase and lower units all models


Outdrive forward, pinion and reverse gears for all models including MC-1 / R / MR and Alpha One and Generation 2 compatible with 120/140 4 cylinder, inline 6 cylinder, V6 and 5.0-5.7 liter V8 motors.

Upper and lower unit gear sets with bearings and shims, ratios, years and serial numbers. See our application chart for lower and upper units for help with choosing the right one for your model Limited selection of used gears also available.

90190 Mercruiser tool bearing carrier retainer wrench

90190 Mercruiser tool bearing carrier retainer wrench

P/N 90190 Bearing carrier retainer wrench OEM 91-61069T $97.95

Bearing carrier wrench, bearing puller and pinion nut adapter

Shift shaft bushing, outdrive bearing race and seal drivers. Mercury outboard and Mercruiser stern drive prop wrench kit

Tools are compatible with Alpha 1 and generation 2, Bravo, MR, and Mercruiser outdrives
