Mercruiser forward gear tappered roller bearing for lower unit outdrive gearcase.

  • GLM marine #21590
  • OEM # 31-35928T1
  • Large bearing for forward gear
  • Inside diameter 1.875

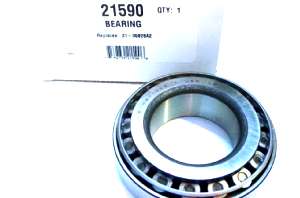

W 21590 Mercruiser forward bearing.jpg
21590 Mercruiser forward bearing

  $45.98

Please see lower gearcase drawing parts number 49
