Mercury outboard water pump kit * How to install video

GLM marine aftermarket pump parts with impeller

12122 water pump kit 4 to 4.5 hp. .456 inch impeller
12122 water pump kit 4 to 4.5 hp. .456 inch impeller

P/N 12122 Water pump
46-70941A3 $55.15

Parts included
P/N 85153 Grommet 26-36558
P/N 85270 Oil seal 26-30913
P/N 12428 Pump housing
P/N 12540 Wear plate 46895
P/N 89810 Impeller 47-89981
P/N 12817 Pump cup 70977
P/N 12433 Pump base 46-70941
P/N 81230 O ring 25-29439
P/N 86450 Oil seal 26-30900T
P/N 12837 Grommet 26-33613

P/N 12122
4 hp.Mercury outboard 1 Cylinder water pump kit with .456 inch I.D. impeller
Years 1982 to 1986
US. 5595532 and up
AUS. 8068065 and up
BEL. 9258281 and up
CAN. 7143688 and up

4.5 hp. (45) 1 Cylinder .456 impeller I.D
1980 to 1985
US. 5595532 and up
AUS. 8068065 and up
BEL. 9258281 and up
CAN. 7147238 and up

7.5 hp. with .456 inch impeller I.D. years
1979 to 1986
US. 5206550 and up
AUS. 8057545 and up
CAN. 7125388 and up

9.8 hp. (110) years 1974 to 1978
US 4126460-5206549
AUS 8028440-8057554
BEL. 9078139-9217755
CAN. 7049108-7125387

9.8 hp. with .456 inch impeller I.D. years
1979 to 1985
US. 5206550 and up
AUS. 8057545 and up
BEL. 9217756 and up
CAN. 7125388 and up

12051
12051

P/N 12051
46-42089A5 $72.29

Kit Includes
P/N 12836 Grommet 26-42102-1
P/N 12424 Pump housing
P/N 31178 Washer 12-16448 (2)
P/N 89451 Impeller 47-42038-2
P/N 12494 Wear plate 42200
P/N 31230 Gasket 27-19202
P/N 85570 Oil seal 26-41365-1 (2)
P/N 44990 Quad ring 25-822236
P/N 12305 Pump base 46-42015
P/N 85650 Seal 26-42133
P/N 23201 Retainer 42375
P/N 22358 Screw 10-48408
P/N 12837 Seal 26-33613
P/N 31220 Gasket 27-19204-3
P/N 31170 Gasket 12-1 91 83 (2)
P/N 31330 Gasket 19643

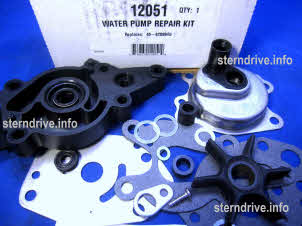

12051 water pump kit
6 hp.
US OA197112 and up
BEL 9461526 and up

8 hp.
US. OA197112 and up
BEL. 9461526 and up

8 hp. 4 Stroke Bodensee
US. OG760300 and up

8 hp. 4 Stroke Bodensee
US. OH017100 - OH017349

9.9 hp.
US. OA197112 and up
BEL. 9461526 and up

9.9 hp. 4 Stroke
USA. OG760300 and up

9.9 hp. 4 Stroke
US. OH000058 - OH016909
XR10 / Sea Pro

10 hp. Magnum and Marathon
US. OD038000 and up
BEL. 9596000 and up

15 hp.
US. OB292414 and up
BEL. 9542620 and up

15 hp.. Sea Pro Marathon
US. OG044365 and up
BEL. 9927000 and up

12014
12014 Use 12030 base not included

P/N 12014 (Use 12030 base not included) $56.89

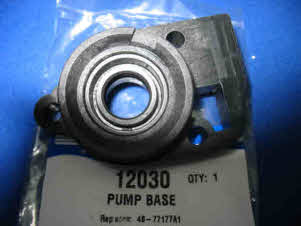

12030 base housing

P/N 12030 base housing $25.89

P/N 12014 outboard kit
Please note
(Use P/N 12030 base not included in kit)

20-20 hp.

XD 25 hp.
Sea pro, mariner, super

15 hp. US. 1988 to 1998

25 hp. 3 cylinder US. 1997 to 2006

12045
12045

P/N 12045 Service kit $41.15

Kit Contains:
P/N 85180 Tube Seal 43023
P/N 85181 Tube Seal 823547-1
P/N 31175 Washer 12-86645-1
P/N 89640 Impeller 47-85089-10
P/N 37490 Gasket 27-822189
P/N 12505 Wear Plate 821354-2
P/N 37700 Gasket 27-822217
P/N 31175 Washer 12-86645-1
P/N 89640 Impeller 47-85089-10
P/N 37490 Gasket 27-822189
P/N 12505 Wear Plate 821354-2
P/N 37700 Gasket 27-822217
P/N 85180 Tube Seal 43023
P/N 85181 Tube Seal 823547-1
P/N 31175 Washer 12-86645-1
P/N 89640 Impeller 47-85089-10
P/N 37490 Gasket 27-822189
P/N 12505 Wear Plate 821354-2
P/N 37700 Gasket 27-822217

P/N 12045 Mercury impeller kit $41.15
821354A2

Without Impeller Key

30 hp. 2 cylinder 1994-1998
US. OG053314-OT598999

30 HP. JET1998
US. OG590000 and up

40 hp. Carburetor 3 Cylinder 1998
USA 0G760300-0T408999
Bel 0P153500-0P153499

40 hp. E.F.I.3 Cylinder Standard 1998
USA 0T409000-1B22699

40 hp. 2 Cylinder (644cc)
1994-98
USA 0G053314 Up

40 hp. 2 cylinder 1997-1998
USA 531301 Up

40 hp. 3 cylinder
BEL 9973100 1997-1998 Up

45 hp. 4 cylinder 1996-1999
USA 0G231123-0T17499

50 hp. 3 cylinder 1998
USA 0G590000 Up
BEL 9973100 Up

40 hp. Carburetor 3 Cylinder 1998
USA 0G760300-0T408999
Bel 0P153500-0P153499

40 hp. E.F.I.3 Cylinder Standard 1998
USA 0T409000-1B22699

40 hp. 2 Cylinder (644cc)
1994-98
USA 0G053314 Up

40 hp. 2 cylinder 1997-1998
USA 531301 Up

40 hp. 3 cylinder
BEL 9973100 1997-1998 Up

45 hp. 4 cylinder 1996-1999
USA 0G231123-0T17499

50 hp. 3 cylinder 1998
USA 0G590000 Up
BEL 9973100 Up

12126 Water pump kit 25 35 40 50 hp.

12126 Kit 25 30 40 50 hp.

P/N 12126 Service kit $81.95

Includes:
P/N 85180 Tube seal 43023
P/N 85181 Tube seal 4823547-1
P/N 12427 Housing
P/N 31175 Washer 12-86645-1
P/N 89640 Impeller 47-85089-10
P/N 12505 Wear plate 821354-2
P/N 37490 Gasket 27-822189
P/N 37700 Gasket 27-822217

P/N 12126
Service housing kit 1998 and up
25, 30, 40 and 50 hp.

12094 40 hp. 4 Stroke Bigfoot
12094 40 hp. 4 Stroke Bigfoot

P/N 12094
46-43024A7 $83.89

Kit includes
P/N 85180 Water tube seal 43023
P/N 85190 Water tube seal
P/N 85590 Face seal 26-816575A
P/N 12413 Pump housing
P/N 89630 Impeller 47-43026T2
P/N Key 28-43037
P/N 31240 Gasket 27-817277-1
P/N 12500 Wear plate 817276-1
P/N 30090 Gasket 2743033-1
P/N 12345 Pump base
P/N 30320 Gasket 27-43047-2
P/N 31170 Gasket 12-19183-3
P/N 23234 Screw 10-826844-30
P/N 21490 Washer 12-29245
P/N 31590 Insulator 23-43045

12094

40 hp.
4-Stroke Bigfoot
US. OG231123 and up

45 hp. 4 Stroke Bigfoot, Bodensee B.F.
US. OG231123 and up

50 hp. 4 Stroke,Bigfoot
US. OG231123 and up

60 hp. 3 cylinder Bigfoot
US. OD00750 and up
BEL. 9683055 and up

65 hp. Jet
US. OD283222 and up
BEL. 9793577 and up

70 hp. 3 cylinder
US. OA996142 and up
BEL. 9483121 and up

75 hp. 3 cylinder
US. OC222000 and up
BEL. 9589039 and up

80 hp. 3 cylinder
US. OA996142 and up
BEL. 9483121 and up
80 hp. Jet
US. OD283222 and up
BEL. 9793577 and up

90 hp. 3 cylinder
US. OA996142 and up
BEL. 9483121 and up

100 hp. 4 cylinder
US. OB209468 and up
BEL. 9523034 and up

115 hp. 4 cylinder
US. OC100000 and up
BEL. 9559771 and up

125 hp. 4 cylinder
US OD283222 and up
BEL 9793577 and up

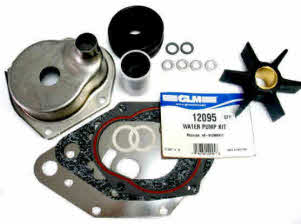

12095 Mariner water pump kit
12095 Mariner Mercury water pump kit
P/N 12095
46-812966A11 $114.89

P/N 85180* Tube seal 43023
P/N 31590 Insulator 23-43045
P/N 12417 Pump Housing 14334A3
P/N 21490** Washer (4)
P/N 31177** Washer (2) 12-858234
P/N 89616 Impeller 47-19453T
P/N 37490* Gasket 27-822189
P/N 12506* Wear plate 19700A2
P/N 37470* Gasket 27-8M4502052
P/N 37478 Gasket 27-19454-1
P/N 31170 Gasket 12-19183-3
P/N 12352 Pump base 46-812966A7
P/N 82250* 0-ring 25-30224
P/N 86870* Oil seal 26-814670
P/N 86860 Oil seal 26-814669

12095

45 hp.
Jet
US OD000750 and up

50 hp. 3 cylinder
US OD000750 - OG589999
BEL 9683055 - 9973099

55 hp. 3 cylinder
US OD000750 and up
BEL 9741042 and up

60 hp. 3 cylinder Standard
US OD000750 and up
12098
12098 Water pump
P/N 12098
817275A5 $85.89

12098 water pump kit
1998 V-200 hp. DFI

3.0 liter 1998

V-225 hp. DFI
US. serial number
OG590000 and up

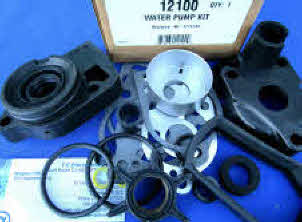

12100 Mercury kit-30-125 hp.
12100
P/N 12100
46-77177A3
$68.29

Included
P/N 85360 Grommet 26-38452
P/N 32710 Gasket 12-38453
P/N 21320 Slinger 25-20273
P/N 12420 Water pump housing 46-77822P
P/N 12860 Pump cup 48753
P/N 89830 Impeller 47-89983
P/N 31070 Gasket 27-19551
P/N 12520 Wear plate 32768
P/N 31060 Gasket 27-19553
P/N 12020 Pump gasket 46-73640A1
P/N O ring 25-26855
P/N 12030 Pump base 46-77177A1
P/N 82240 O ring 25-26722
P/N 85080 Oil seal 26-90562
P/N 85580 Oil seal 26-79831
P/N 85630 Seal 37721

12100

30 hp.
Jet
US OC159200 - OG589999

35 hp. 2 cylinder
US. 6445653 and up
BEL. 9384476 and up
CAN. 7209608 and up

40 hp. 2 cylinder 1983
US. 4860103 and up
AUS. 8052125 & up
BEL. 9184451 & up
CAN. 7112423 & up

40 hp. 4 cylinder
USA. OC159200 and up
BEL. 9570790 and up

45 hp. 4 cylinder
US. 5531630 and up
AUS. 8063985 and up
BEL. 924006 and up
CAN. 7143688 and up

50 hp. 4 cylinder
US. 5531630 and up
AUS. 8063985 and up
BEL. 9248006 and up
CAN. 7143688 and up

50 hp. 3 cylinder
US. 6428681 - OD00749
BEL. 9385911- 9683054
CAN. 7208333 and up

60 hp. 3 cylinder
US. 6428681 - OD000749
BEL. 9385911-9683054
CAN. 7208333 and up

70 hp. 3 cylinder
US. 4977157-6428630
AUS. 8050200 and up
BEL. 9196961- 9385910
CAN. 7110998-7208332
12121 Mercury 135 to 275 hp.
12121 Outboard kit
P/N 12121
817275A09 $62.89

Included in kit:
P/N 85590 Face seal 26-816575A2
P/N 12834 Screw 10-816928
P/N 12413 Pump housing
P/N 89630 Impeller 47-43026T2
P/N 31240 Gasket 27-817277-1
P/N 12500 Wear plate 817276-1
P/N 30090 Gasket 27-43033-1
P/N 12366 Pump base 888909A1
P/N 21775 Retainer ring 53-880719
P/N 81395 O ring 25-896523
P/N 85016 Oil seal 26-888920
P/N 85017 Oil seal 26-888921
P/N 11071 Key 28-43037

12121 four stroke from USA

135 hp.
Verado
1B227000 and up

150 hp. Verado
1B227000 and up

175 hp. Verado
1B227000 and up

200 hp. Verado
0T980000 and up

225 hp. Verado
0T980000 and up

250 hp. Verado
0T980000 and up

275 hp. Verado
0T980000 and up
12013 Verado service kit 135 to 275 hp.
12013 Verado service kit 135-275 hp.
P/N 12013
817275A01 $61.95

Included in kit
P/N 85590 Face seal 26-816575A2
P/N 12834 Screw 10-816928
P/N 12413 Pump housing
P/N 89630 Impeller 47-43026T2
P/N 31240 Gasket 27-817277-1
P/N 12500 Wear plate 817276-1
P/N 30090 Gasket 27-43033-1
P/N 21775 Retainer ring 53-880719
P/N 81395 O ring 25-896523
P/N 85016 Oil seal 26-888920
P/N 85017 Oil seal 26-888921
P/N 11071 Key 28-43037

12013
Four stroke Verado
USA service kit

Note base P/N 12366 OEM 888909A1 not included in this kit

135 hp. Verado
1B227000 and up

150 hp. Verado
1B227000 and up

175 hp. Verado
1B227000 and up

200 hp. Verado
0T980000 and up

225 hp. Verado
0T980000 and up

250 hp. Verado
0T980000 and up

275 hp. Verado
0T980000 and up
12124
12124
P/N 12124 Service kit $114.89

12124

CHN 40 hp.
E.F.I.
3  cylinder. long shaft

US 50 hp. and E.F.I.
996cc standard or bigfoot
1995 to 1998
12160 lower unit water pump
12160 Mercury lower unit water pump kit

P/N 12160 pump kits
46-96148A8 $54.89

P/N 12160
75 hp.
4 cylinder
US. 6432901 up
BEL. 9393856 up
CAN. 7208573 up
80 hp. 4 cylinder
US. 4831999 - 6432900
AUS. 8050200 up
BEL. 9177626 - 9393855
CAN. 7110998 - 7208572
85 hp. 4 cylinder 850 XS
US. 3493913 - 4831998
AUS. 8043775 - 8050199
BEL. 9011604 - 9177625
CAN. 7010108 - 7110997
90 hp. 6 cylinder 900 (11)
1766824 - 1869775 N/A
90 hp. 6 cylinder
US. 4845301 up
AUS. 8060545 up
CAN. 7111698 up
105 hp. Jet
US. 0D082000 up
BEL. 9682500 up
115 hp. 6 cylinder
US. 4394237 and up
AUS. 8027440 and up
CAN. 7075523 and up
140 hp. 6 cylinder 1400
US. 4865678 up
AUS. 8052650 and up
CAN. 7112773 and up
1500 6 cylinder
US. 4121435 - 4865677
AUS. 8028040 - 8052649
CAN. 7048783 - 7112772
1500 6 cylinder XS
US. 4868648 - 5327662 N/A
V-135 Carburetor
US. 0A904646 and up
V-135 D.F.I.
US. 0G590000 and up
140 Jet
US. 0D082000 and up
BEL. 9682500 and up
V-150 Carburetor (8)
US. 4868998 - 0A904645
V-150 Carburetor (7)
US. 4868988 - 0A904645
V-150 Carburetor EFI & DFI
US. 0A904646 and up
V-150 XR2, 4, 6 Magnum II, III
US. 4868998 and up
V-150 XR2, 4, 6 Magnum II, III
US. 4868998 and up
V-1750, V-175 (8)
US. 4301235 - 6618750
V-175, V175 (7)
US. 4301235 - 6618750
V-175 Carburetor and EFI
US. 6618751 and up
V-200 (8)
US. 4839034 - 6625220
AUS. 8061595 - 8065672
V-200
US. 4839034 - 6625220
AUS. 8061595 - 8065672
V-200 Carburetor and EFI.
US25221 and up
V-200 DFI 3.0L
US. 0G386496 and up
V-200 Laser
US. 0B117316 and up
V-225 2.4 Liter
US. 5628028 and up

12170 outboard
12170 outboard

P/N 12170
46-77516A3 $62.89

12170
Mercury outboard 3-4 cylinder water pump kits

35 hp. 350 (4)
1960827 - 2453068
40 hp. 400/402
US. 2874704 - 4362214
BEL. 3339688 - 9108563
CAN. 3340783 - 7070272
50 hp. 500 (4)
US. 2305101 - 2478119
50 hp. 500 (2)
CAN. 2305101 - 2308830
50 hp. 500 4 cylinder
CAN. 2305101 - 2308830
50 hp. 500
US. 2514919 - 4357639
AUS. 2863739 - 8030089
BEL. 9001581 - 9107213
CAN. 2519919 - 7068997
65 hp. 3 cylinder
US. 3293184 - 4382056
AUS. 8006640 - 8042349
BEL. 9020074 - 9112988
CAN. 7013633 - 7073472
12180 2 cycle 35 to 50 hp.
12180
P/N 12180$62.89

12180
35 hp.
350 (4)
1960827 - 2453068
40 hp. 402
US. 4362215 - 4860102
AUS. 8036459 - 8052124
BEL. 9108564 - 9184450
CAN. 7070273 - 7112422
50 hp. 500cc 4 cylinder
US. 4357640 - 5531629
AUS. 8030090 - 8063984
BEL. 9017214 - 9248005
CAN. 7068998 - 7143687
65 hp. 3 cylinder
US 4382057 - 4571651
BEL. 9112989 - 9135824
CAN. 7073473 - 7087822
70 hp. 3 cylinder
US. 4571652 - 4977156
AUS. 8042350 - 8050199
BEL. 9135825 - 9196960
CAN. 7087823 - 7110997
12414
12414 Water pump kit

P/N 12414 OEM 817275Q5 $109.95

P/N 12414
V-6 200, 225, 250 hp.
817275T4
Sierra 18-3147

Included:

P/N 82210 O RING 25-21836
P/N 82150 O ring 25-35027
P/N 85590 Face seal 26-816575A2
P/N 12413 Pump housing
P/N 89630 Impeller 47-43026T2
P/N 11071 Key 28-43037
P/N 31240 Gasket 27-817277-1
P/N 12500 Wear plate 817276-1
P/N 30090 Gasket 27-43033-1
P/N 12341 Pump base 807929A1
P/N 31170 Gasket 12-19183-3 Kit(2)
P/N 82115 O ring 25-21836 (2)

12150 65 to 225 hp. 1963-1998

12150 Water pump kit with base

P/N 12150 OEM 46-78400A2 $39.95

Included:
P/N 12820 Guide tube 23-29804T
P/N 21330 Slinger 25-30271
P/N 12410 Housing 46-96148T1
P/N 12350 Pump housing 46-96146A6
P/N 89840 Impeller 47-89984T4
P/N 31020 Gasket 27-858524
P/N 12510 Wear plate 32435
P/N 31010 Gasket 27-85608
P/N 81390 O ring (2.875 I.D.)
P/N 82250 O ring (1.875 I.D.)
P/N 82260 O ring (2.000 1.D.)
P/N 82270 O ring (2.125 I.D.)
P/N 81160 O ring 25-30613
P/N 31030 Gasket 27-32438
P/N 31040 Gasket 27-856704
P/N 31050 Gasket 27-42631
P/N 85140 Seal 26-45577-1
P/N 31170 Gasket 12-19183-2 (2)

P/N 12150

Mercury and Mariner outboard years 1963 to 1998
OEM 46-78400A2
2.245" OD Diameter base
Sierra 18-3316

V6, 150, 175, 200, 225 hp.

V-150, 175, 200 (EFI)
0G960500 - 0T408999

V-135, 150, 175 DFI (2.5L)
0T178500 - 0T800999

V-150, 175, 200 EFI (2.5L)
0T409000 - 0T800999

12280 2 cycle 65 to 225 hp. 2.5 liter engine

12280 Water pump kit

P/N 12280 OEM 46-96148A8 $27.95

Includes
P/N 12820 Guide tube 23-29804T
P/N 21330 Slinger 25-30271
P/N 12410 Pump housing
P/N 89840 Impeller 47-89984T4
P/N 31020 Gasket 27-858524
P/N 12510 Wear plate 32435
P/N 31010 Gasket 27-85608-1
P/N O-ring (2.1875 1.0.) 25-90011
P/N 82250 O-ring (1.875 .0.)
P/N 82260 O-ring (2.000 1.0.);
P/N 82270 O-ring (2.125 ID.)
P/N 81160 O-ring 25-30613
P/N 31030 Gasket 27-32438
P/N 31040 Gasket 27-856704
P/N 31050 Gasket 27-42631 -1
P/N 85140 Seal 26-45577-1
P/N 31170 Gasket 12-19183-2

P/N 12280
Fits years 1963 to 1998
65 thru 225 HP.
OEM 46-96148A8
V-140 (INTERNATIONAL)
0T178500-1B226999

V-135, 140 JET, V-150,
XR-6 V-200 MAGNUM III
0G960500-1B226999

V-135, 150, 175 DFI (2.5L)
0T178500-0T800999

V-140 (INTERNATIONAL)
0T178500-1B226999

V-150, V-200 EFI (2.5L)
0T801000-1B226999

V-150, 175, 200 EFI (2.5L)
0T409000-0T800999

V-150, 175, 200 (EFI)
0G960500-0T408999

200XS DFI (2.5L)
0T818181-1E000796

225X EFI
0T430254-0T819605

225 EFI PRO MAX/SUPER MAG
0G857000-0T429939

12096 outboard V-200 EFI 3.0 liter

P/N 12096 Mercury Mariner 2 Cycle OEM 817275A6 $127.15

Parts included

11071 Key 28-43037
12413 Pump Housing
12500 Wear Plate 817276-1
30090 Gasket 27-43033-1
31175 Gasket 12-86645-1
31240 Gasket 27-817277-1
82115 O-ring 25-21836
85590 Face Seal 26-816575A2
89630 Impeller 47-43026T2
85140 Seal 26-45577-1

P/N 12096
Mercury / Mariner 2-Cycle

V-200 EFI 3.0 Liter
US 0T750164 & Up all years

V-200 DFI 3.0 Liter
US 0G386496-0G589999 Year 1997

12011 Chrysler Force
12011 Chrysler Force

P/N 12011 OEM FK1069 $76.15

Force
85 hp. 3 cylinder 1983 to 1989
125 hp. 4 cylinder 1983 to 1989

Chrysler
3 cylinder
75 hp. 1980 to 1984
85 hp. 1979 to 1984
4 cylinder
90 hp. 1983 to 1984
100 hp. 1979 to 1984
105 hp. 1982 to 1983
115 hp. 1979 to 1984
125 hp. 1981 to 1982
140 hp. 1979 to 1984

12012

12012 water pump kit

P/N 12012 $34.95

Force
85 hp. 3 cylinder 1983 to 1989
125 hp. 4 cylinder 1983 to 1989

Chrysler
3 cylinder
75 hp. 1980 to 1984
85 hp. 1979 to 1984
4 cylinder
90 hp. 1983 to 1984
100 hp. 1979 to 1984
105 hp. 1982 to 1983
115 hp. 1979 to 1984
125 hp. 1981 to 1982
140 hp. 1979 to 1984

12426 pump housing kit

12426 pump housing kit

P/N 12426
Mercury pump housing OEM 46-821351A3
Fits (1998-Up) 25, 30, 40, 50 HP
Kit Contains:
85180 Tube seal
43023 85181
Tube seal 823547-1 31175
Washer 12-86645-1 37490
Gasket 27-822189 37700
Gasket 27-822217 28-43037
Key Fits (1998-Up) 25, 30, 40, 50 HP

Impeller kits

12043 Water pump impeller kit Alpha 1 Gen 2
12043 impeller kit

P/N 12043 Mercury outboard impeller kit 47-43026K06 $30.15

12290
12290 water pump service kit

P/N 12290 Water pump impeller service kit OEM $20.15
